TOYOTA GRANVIA GRAND HIACE KCH10W-GRSGT / BODY / SEAT SEAT TRACK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

SEAT SEAT TRACK

ﾃｲｸ ｱｳﾄ ﾃ-ﾌﾞﾙ ILLUST NO. 6 OF 7(9708-9907)G

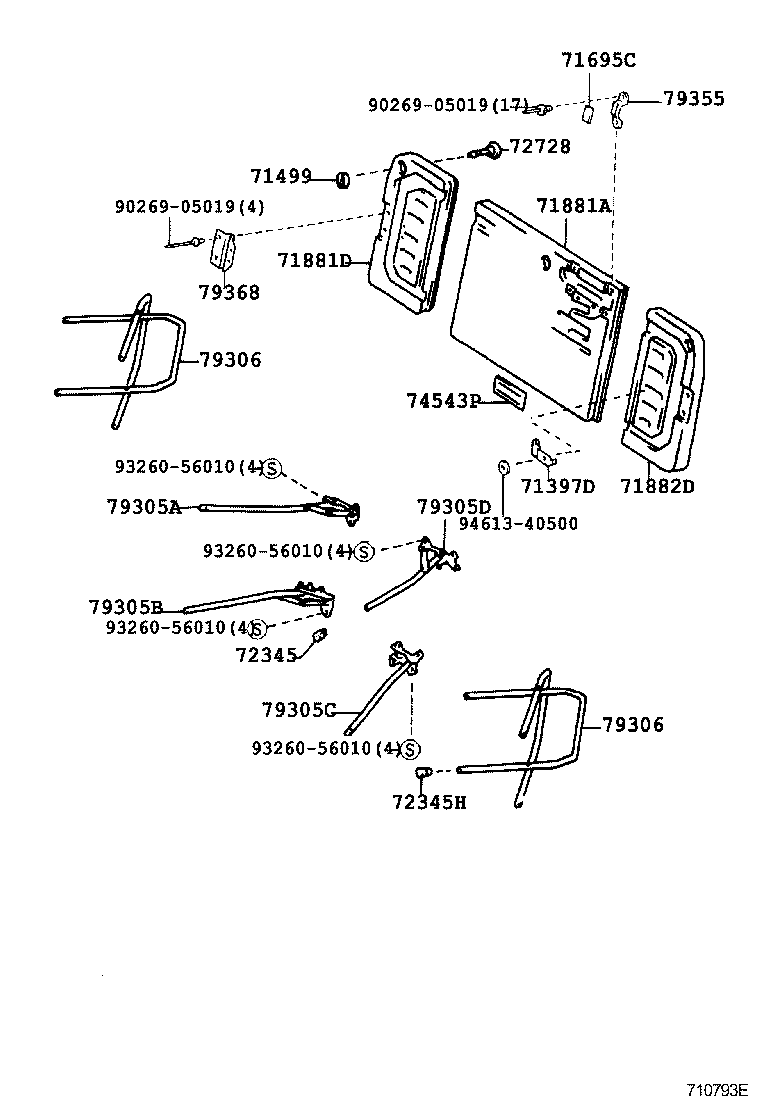

GRANVIA GRAND HIACE | SEAT SEAT TRACK 71397D - STOPPER, REAR SEAT 71499 - STOPPER, REAR SEAT BACK 71695C - PROTECTOR, REAR SEAT, NO.1 71881A - BOARD, REAR SEAT BACK 71881D - BOARD, REAR SEAT BACK, RH 71882D - BOARD, REAR SEAT BACK, LH 72345 - CAP, SEAT STAND FRAME 72345H - CAP, SEAT STAND FRAME 72728 - PROTECTOR, REAR SEAT RECLINING, INNER RH 74543P - LABEL, REAR SEAT CAUTION 79305A - LEG SUB-ASSY, NO.3 SEAT, RH 79305B - LEG SUB-ASSY, NO.3 SEAT NO.2 79305C - LEG SUB-ASSY, NO.3 SEAT NO.3 79305D - LEG SUB-ASSY, NO.3 SEAT NO.4 79306 - LEG SUB ASSY, NO.3 SEAT, LH 79306 - LEG SUB ASSY, NO.3 SEAT, LH 79355 - PLATE, NO.3 SEAT BACK 79368 - SUPPORT, NO.3 SEAT BACK ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
