TOYOTA DYNA 200 TOYOACE G25 BU297-PKPLW3 / BODY / FRAME

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

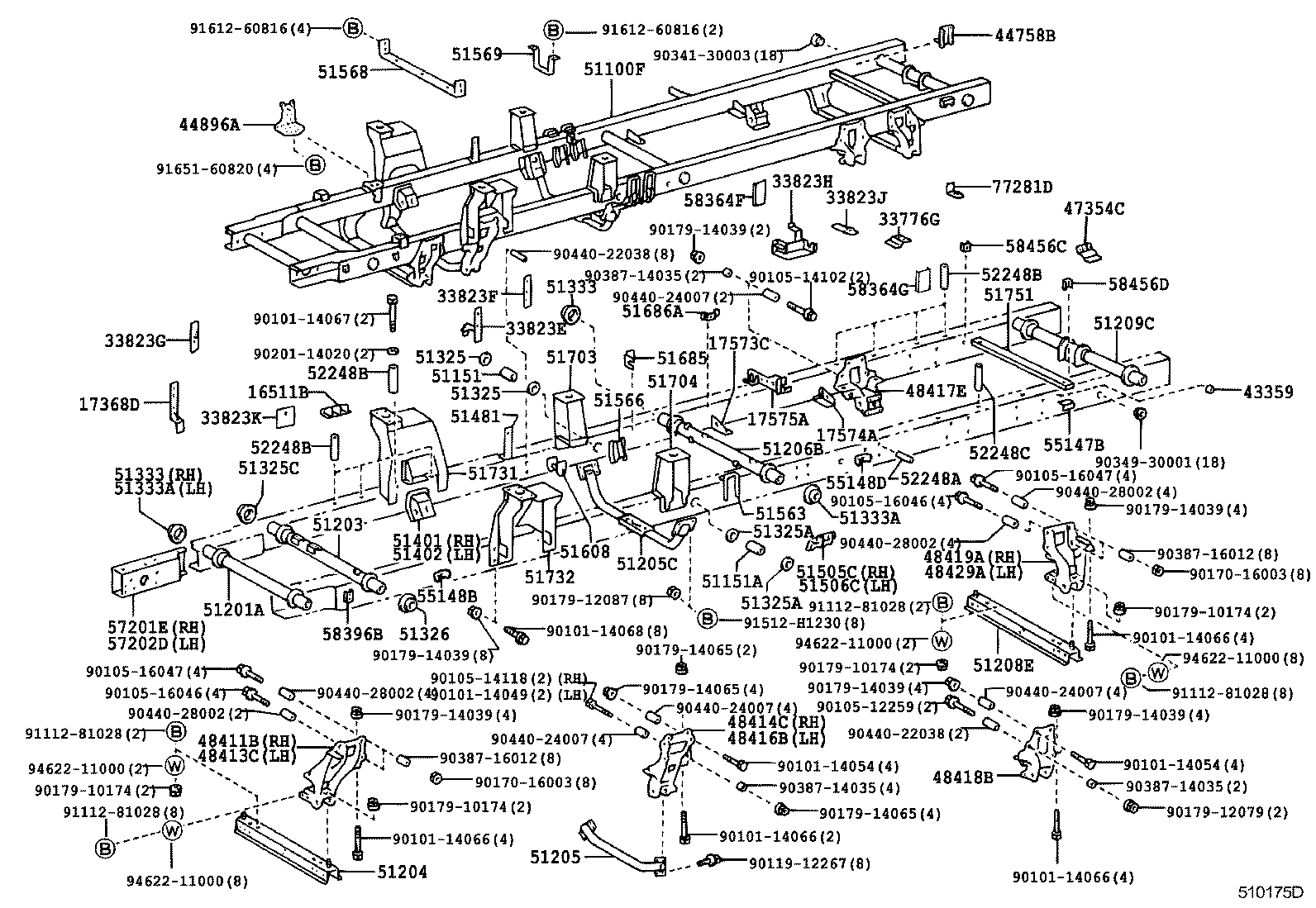

FRAME

(9701- )BU297

DYNA 200 TOYOACE G25 | FRAME 16511B - BRACKET, SUB-RADIATOR 17368D - SUPPORT, AIR TUBE 17573C - BRACKET, EXHAUST PIPE SUPPORT, NO.3 17574A - BRACKET, EXHAUST PIPE SUPPORT, NO.4 17575A - BRACKET, EXHAUST PIPE SUPPORT, NO.5 33776G - BRACKET, CROSS SHAFT 33823E - BRACKET, TRANSMISSION CONTROL CABLE NO.1 33823F - BRACKET, TRANSMISSION CONTROL CABLE NO.2 33823G - BRACKET, TRANSMISSION CONTROL CABLE NO.3 33823H - BRACKET, TRANSMISSION CONTROL CABLE NO.4 33823J - BRACKET, TRANSMISSION CONTROL CABLE NO.5 33823K - BRACKET, TRANSMISSION CONTROL CABLE 43359 - NUT, ICE DEFLECTOR 44758B - BRACKET, AIR RESERVOIR SIDE RAIL 44896A - BRACKET, AIR BRAKE COMPRESSOR 47354C - BRACKET, FLEXIBLE HOSE, NO.4 48411B - BRACKET, SPRING, NO.1 RH 48413C - BRACKET, SPRING, NO.2 LH 48414C - BRACKET, SPRING, NO.3 RH 48416B - BRACKET, SPRING, NO.4 RH 48417E - BRACKET, SPRING, NO.5 48418B - BRACKET, SPRING, NO.6 48419A - BRACKET, SPRING, NO.7 48429A - BRACKET, SPRING, NO.8 51100F - FRAME SUB-ASSY 51151 - REINFORCEMENT, SIDE RAIL, NO.1 51151A - REINFORCEMENT, SIDE RAIL, NO.1 51201A - CROSSMEMBER SUB-ASSY, FRAME, FRONT 51203 - CROSSMEMBER SUB-ASSY, FRAME, NO.2 51204 - CROSSMEMBER SUB-ASSY, FRAME, NO.3 51205 - CROSSMEMBER SUB-ASSY, FRAME, NO.4 51205C - CROSSMEMBER SUB-ASSY, FRAME, NO.5 51206B - CROSSMEMBER SUB-ASSY, FRAME, NO.6 51208E - CROSSMEMBER SUB-ASSY, FRAME, NO.8 51209C - CROSSMEMBER SUB-ASSY, FRAME, REAR 51325 - RETAINER, FRAME NO.2 CROSSMEMBER 51325 - RETAINER, FRAME NO.2 CROSSMEMBER 51325A - RETAINER, FRAME NO.2 CROSSMEMBER 51325A - RETAINER, FRAME NO.2 CROSSMEMBER 51325C - RETAINER, FRAME NO.2 CROSSMEMBER, RH 51326 - RETAINER, FRAME NO.2 CROSSMEMBER, LH 51333 - RETAINER, FRAME NO.3 CROSSMEMBER, RH 51333 - RETAINER, FRAME NO.3 CROSSMEMBER, RH 51333A - RETAINER, FRAME NO.3 CROSSMEMBER, RH 51333A - RETAINER, FRAME NO.3 CROSSMEMBER, RH 51401 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH 51402 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH 51481 - BRACKET, POWER STEERING TUBE CLAMP 51505C - SUPPORT SUB-ASSY, ANCHOR ARM, RH 51506C - SUPPORT SUB-ASSY, ANCHOR ARM, LH 51563 - BRACKET, ANCHOR ARM SUPPORT 51566 - SUPPORT, ANCHOR ARM 51568 - BRACKET, PROPELLER SHAFT GUARD 51569 - GUARD, PROPELLER SHAFT 51608 - SUPPORT SUB-ASSY, REAR STEERING LEVER SIDE RAIL 51685 - BRACKET, CABLE SUPPORT SIDE RAIL 51686A - BRACKET, CABLE CLAMP SIDE RAIL 51703 - BRACKET SUB-ASSY, CAB MOUNTING, NO.2, RH 51704 - BRACKET SUB-ASSY, CAB MOUNTING, NO.2 LH 51731 - BRACKET, CAB REAR MOUNTING, RH 51732 - BRACKET, CAB REAR MOUNTING, LH 51751 - BRACKET, BODY SUPPORT, NO.1 52248A - COLLAR, BODY MOUNTING, REAR 52248B - COLLAR, BODY MOUNTING, REAR 52248B - COLLAR, BODY MOUNTING, REAR 52248B - COLLAR, BODY MOUNTING, REAR 52248C - COLLAR, BODY MOUNTING, REAR 55147B - BRACKET, CLUTCH TUBE SUPPORT 55148B - BRACKET, POWER STEERING TUBE 55148D - BRACKET, POWER STEERING TUBE 57201E - EXTENSION SUB-ASSY, FRONT SIDE MEMBER, RH 57202D - EXTENSION SUB-ASSY, FRONT SIDE MEMBER, LH 58364F - BRACKET, FUEL TANK SUPPORT 58364G - BRACKET, FUEL TANK SUPPORT 58396B - BRACKET, WIRE HARNESS CLAMP 58456C - BRACKET, BRAKE TUBE CLAMP 58456D - BRACKET, BRAKE TUBE CLAMP 77281D - BRACKET, FUEL MAIN TUBE, NO.1 ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
