TOYOTA DYNA 200 TOYOACE G25 BU297-PKPLW3 / ELECTRICAL / SWITCH RELAY COMPUTER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

SWITCH RELAY COMPUTER

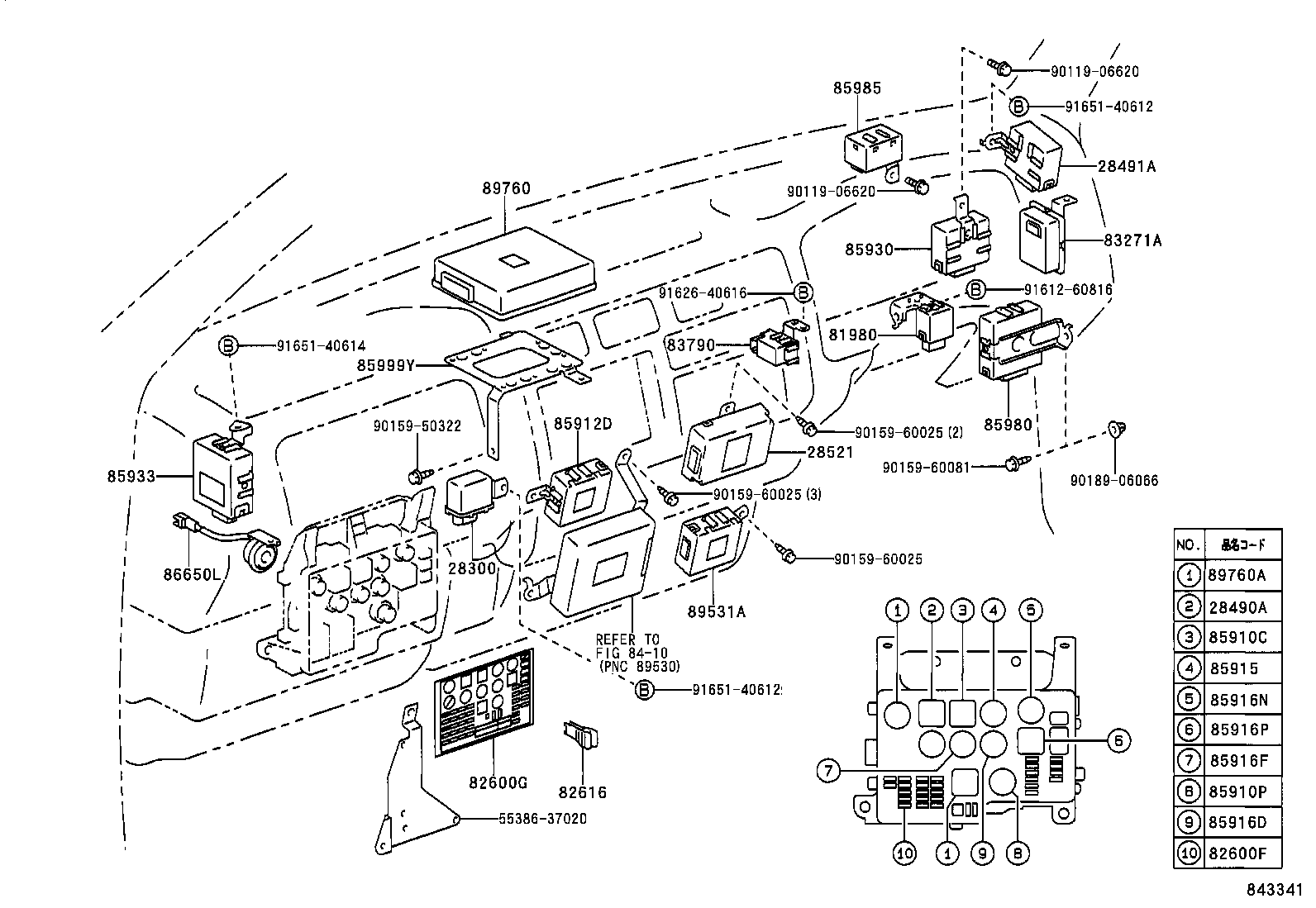

INPANE & COWL ILLUST NO. 3 OF 9(9701- )BU297

DYNA 200 TOYOACE G25 | SWITCH RELAY COMPUTER 28300 - RELAY ASSY, STARTER 28490A - RELAY ASSY, EXHAUST RETARDER 28491A - COMPUTER, EXHAUST RETARDER 28521 - TIMER, PREHEATING ** Std Part 81980 - FLASHER ASSY, TURN SIGNAL 82600F - FUSE, FUSE BLOCK 82600G - PLATE, CAUTION(FOR FUSE) 82616 - PULLER, FUSE 83271A - RELAY, METER CONTROL 83790 - BUZZER ASSY, REVERSE WARNING ** Refer Fig 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) 85910P - RELAY, TURBO INDICATOR 85912D - RELAY 85915 - RELAY, MAIN 85916D - RELAY, FOG LAMP 85916F - RELAY, CORNERING LAMP 85916N - RELAY, TAIL LAMP 85916P - RELAY, HEADLAMP 85930 - RELAY ASSY, POWER WINDOW 85933 - COMPUTER, SHIFT LOCK CONTROL 85980 - RELAY ASSY, DOOR CONTROL 85985 - RELAY, KEY REMINDER 85999Y - BRACKET,RELAY 86650L - BUZZER ASSY, VACUUM WARNING 89531A - RELAY, TRANSMISSION CONTROL 89760 - COMPUTER ASSY, TIRE PRESSURE CONTROL 89760A - RELAY, TIRE PRESSURE CONTROL ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
