TOYOTA DYNA 200 TOYOACE G25 BU297-PKPLW3 / POWERTRAIN-CHASSIS / BRAKE TUBE CLAMP

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

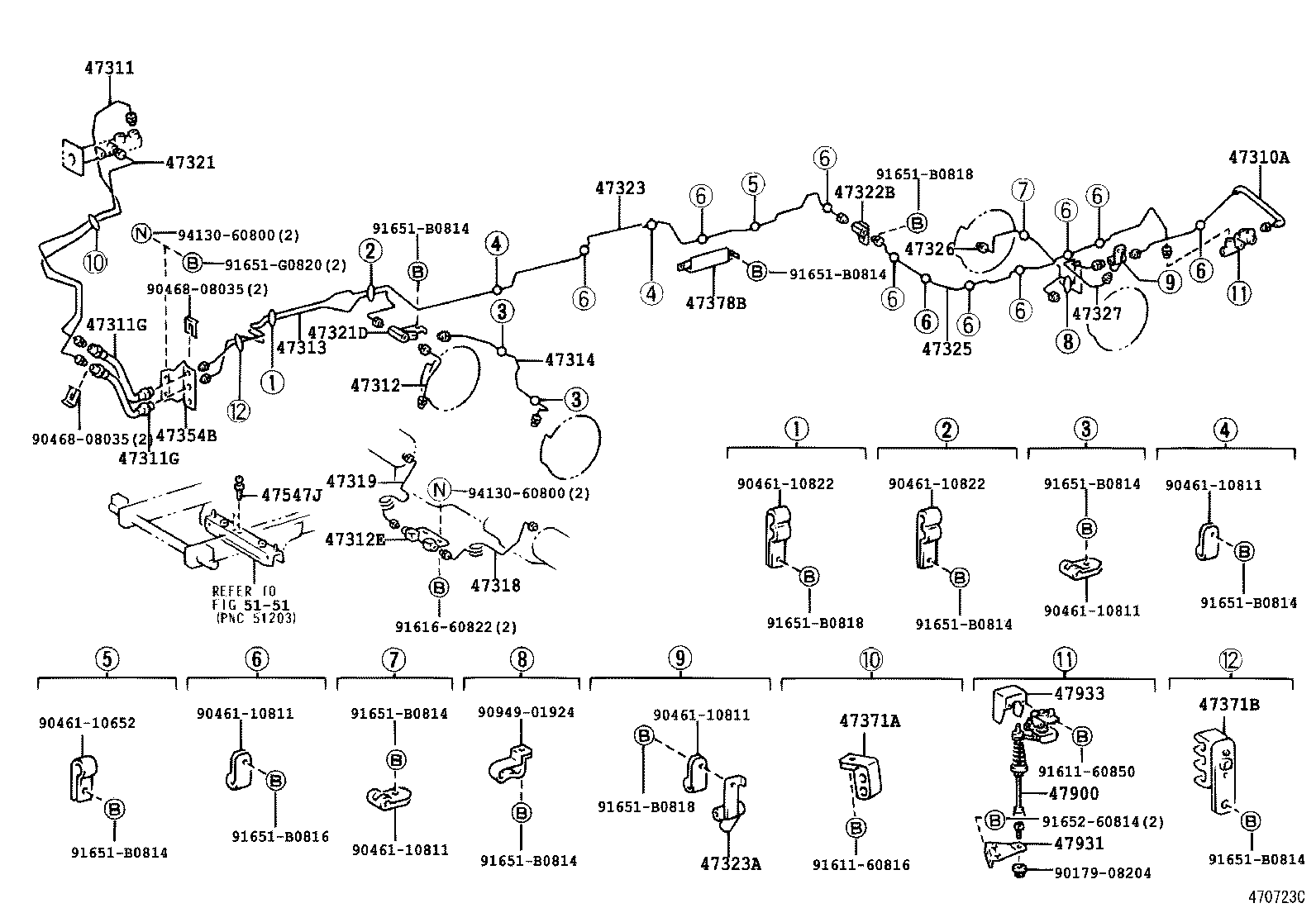

BRAKE TUBE CLAMP

(9701- )BU297

DYNA 200 TOYOACE G25 | BRAKE TUBE CLAMP 47310A - TUBE ASSY, BRAKE, NO.2 47311 - TUBE, FRONT BRAKE, NO.1 47311G - HOSE, FLEXIBLE(FOR BRAKE TUBE) 47311G - HOSE, FLEXIBLE(FOR BRAKE TUBE) 47312 - TUBE, FRONT BRAKE, NO.2 47312E - WAY, NO.2(FOR FRONT BRAKE TUBE) 47313 - TUBE, FRONT BRAKE, NO.3 47314 - TUBE, FRONT BRAKE, NO.4 47318 - TUBE, FRONT BRAKE, NO.8 47319 - TUBE, FRONT BRAKE, NO.9 47321 - TUBE, REAR BRAKE, NO.1 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) 47322B - WAY, NO.2(FOR REAR BRAKE TUBE) 47323 - TUBE, REAR BRAKE, NO.3 47323A - WAY, NO.3(FOR REAR BRAKE TUBE) 47325 - TUBE, REAR BRAKE, NO.5 47326 - TUBE, REAR BRAKE, NO.6 47327 - TUBE, REAR BRAKE, NO.7 47354B - BRACKET, FLEXIBLE HOSE, NO.4 47371A - CLAMP, BRAKE TUBE, NO.1 47371B - CLAMP, BRAKE TUBE, NO.6 47378B - PROTECTOR, TUBE, UPPER 47547J - PLUG, BLEEDER(FOR FRONT DISC BRAKE) 47900 - VALVE ASSY, LOAD SENSING W/SPRING 47931 - BRACKET, LOAD SENSING VALVE 47933 - BRACKET, LOAD SENSING SHACKLE, NO.1 ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
