TOYOTA DYNA 200 TOYOACE G25 BU297-PKPLW3 / TOOL-ENGINE-FUEL / RADIATOR WATER OUTLET

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

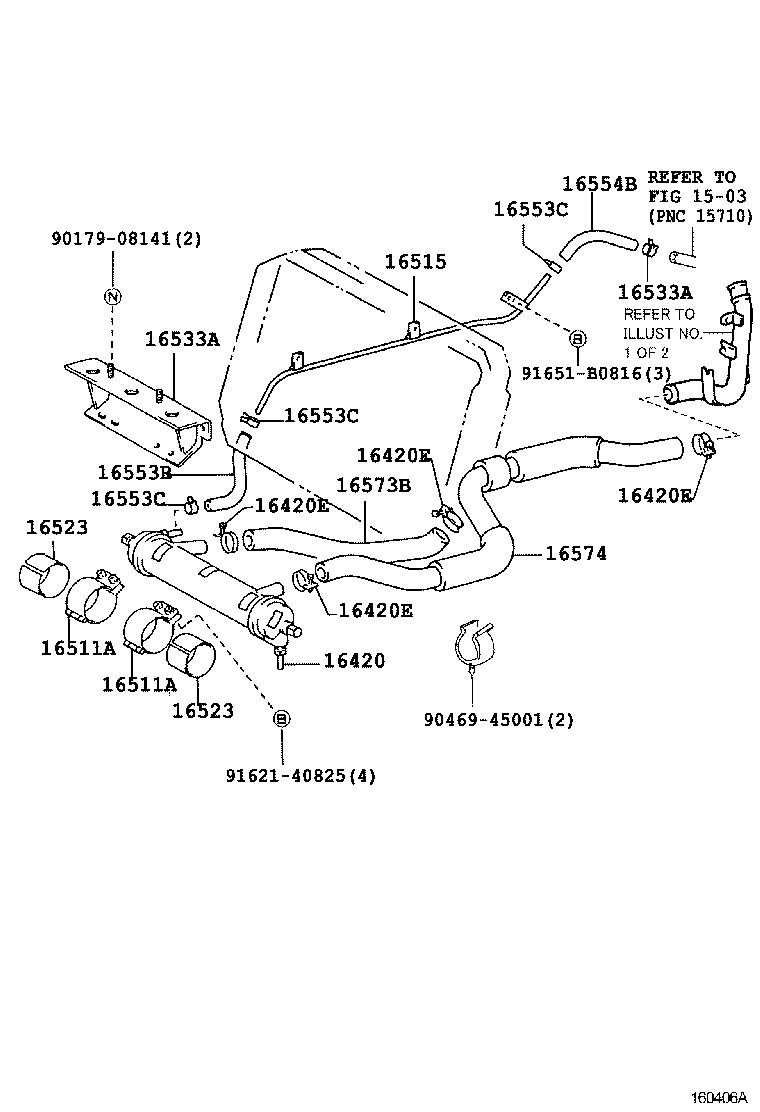

RADIATOR WATER OUTLET

ｼｮｳﾎﾞｳｼｬ ILLUST NO. 2 OF 2(9701-9905)15BFT..BU297

DYNA 200 TOYOACE G25 | RADIATOR WATER OUTLET ** Refer Fig 16420 - RADIATOR ASSY, SUB 16420E - CLAMP OR CLIP, SUB RADIATOR HOSE 16420E - CLAMP OR CLIP, SUB RADIATOR HOSE 16420E - CLAMP OR CLIP, SUB RADIATOR HOSE 16420E - CLAMP OR CLIP, SUB RADIATOR HOSE 16511A - BRACKET, SUB-RADIATOR 16511A - BRACKET, SUB-RADIATOR 16515 - PIPE, SUB RADIATOR, NO.1 16523 - CUSHION, SUB-RADIATOR SUPPORT 16523 - CUSHION, SUB-RADIATOR SUPPORT 16533A - SUPPORT, SUB-RADIATOR 16533A - SUPPORT, SUB-RADIATOR 16553B - HOSE, SUB RADIATOR, NO.3 16553C - CLAMP, HOSE 16553C - CLAMP, HOSE 16553C - CLAMP, HOSE 16554B - HOSE, SUB RADIATOR, NO.4 16573B - HOSE, RADIATOR, NO.3 16574 - HOSE, RADIATOR, NO.4 ** Std Part ** Std Part ** Std Part ** Std Part
