TOYOTA HIACE REGIUSACE KZH116G-GHMDT / BODY / BACK DOOR PANEL GLASS

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

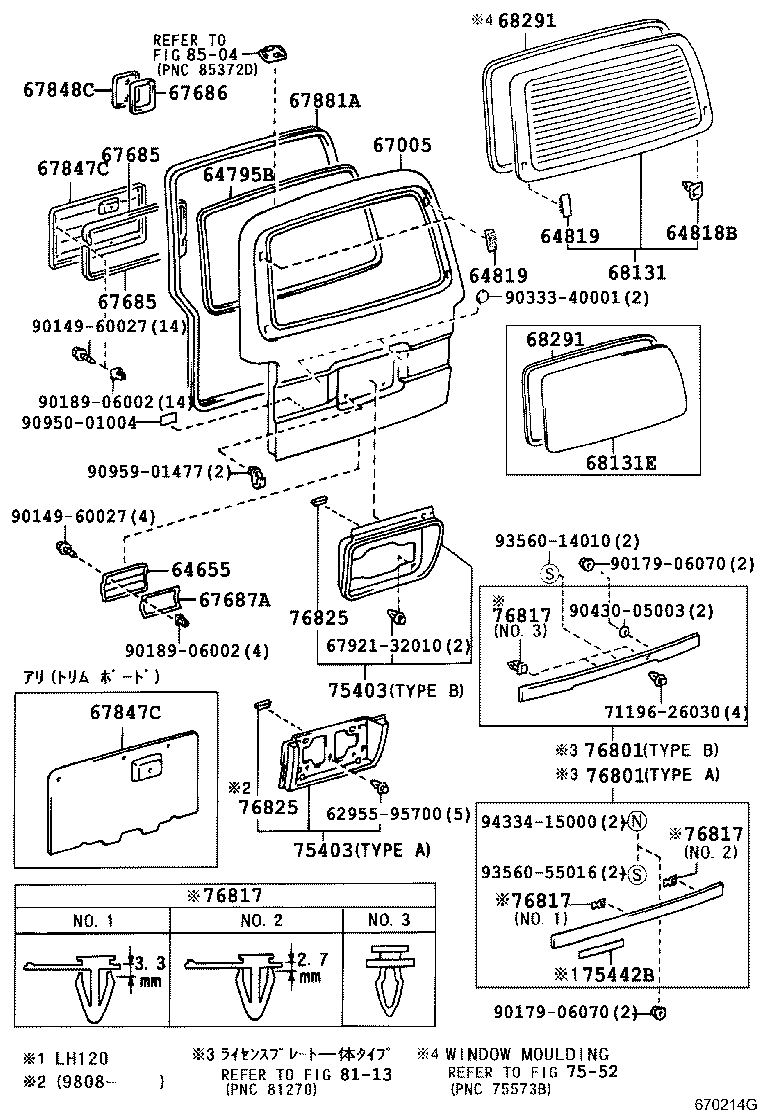

BACK DOOR PANEL GLASS

ILLUST NO. 2 OF 2(8908-9907)

 HIACE REGIUSACE |  BACK DOOR PANEL GLASS  ** Std Part 64655 - COVER, BACK DOOR CLOSER 64795B - TRIM, BACK WINDOW OPENING 64818B - SPACER, BACK DOOR GLASS, NO.1 64819 - SPACER, BACK WINDOW GLASS, NO.2 64819 - SPACER, BACK WINDOW GLASS, NO.2 67005 - PANEL SUB-ASSY, BACK DOOR 67685 - PACKING, BACK DOOR SERVICE HOLE, NO.1 67685 - PACKING, BACK DOOR SERVICE HOLE, NO.1 67686 - PACKING, BACK DOOR SERVICE HOLE, NO.2 67687A - PACKING, BACK DOOR SERVICE HOLE, NO.3 67847C - COVER, BACK DOOR SERVICE HOLE, NO.1 67847C - COVER, BACK DOOR SERVICE HOLE, NO.1 67848C - COVER, BACK DOOR SERVICE HOLE, NO.2 67881A - WEATHERSTRIP, BACK DOOR  ** Std Part 68131 - GLASS, BACK DOOR 68131E - PANEL, BACK DOOR GLASS 68291 - WEATHERSTRIP, BACK DOOR GLASS 68291 - WEATHERSTRIP, BACK DOOR GLASS  ** Std Part 75403 - ORNAMENT SUB-ASSY, BACK DOOR 75403 - ORNAMENT SUB-ASSY, BACK DOOR 75442B - PLATE, BACK DOOR NAME, NO.2 ** Refer Fig 76801 - GARNISH SUB-ASSY, BACK DOOR, OUTSIDE 76801 - GARNISH SUB-ASSY, BACK DOOR, OUTSIDE 76817 - CLIP, BACK DOOR OUTSIDE GARNISH 76817 - CLIP, BACK DOOR OUTSIDE GARNISH 76817 - CLIP, BACK DOOR OUTSIDE GARNISH 76825 - PROTECTOR, BACK DOOR OUTSIDE GARNISH 76825 - PROTECTOR, BACK DOOR OUTSIDE GARNISH ** Refer Fig ** Refer Fig  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
