TOYOTA PRIUS NHW10-AEEEB / BODY / FUEL TANK TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

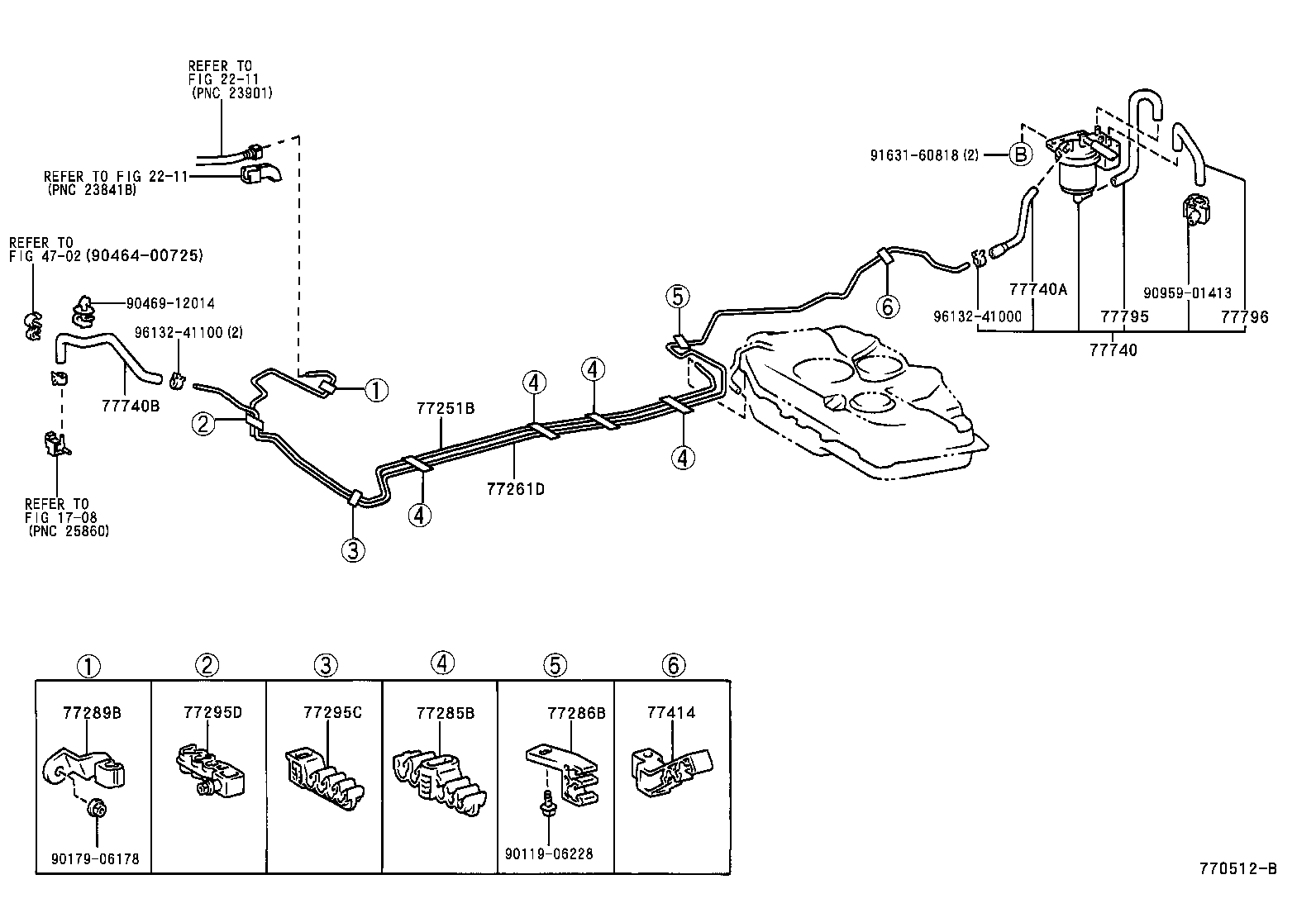

FUEL TANK TUBE

ILLUST NO. 2 OF 2(9712-0005)

PRIUS | FUEL TANK TUBE ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 77251B - TUBE, FUEL MAIN 77261D - TUBE, FUEL TANK TO CANISTER 77285B - CLAMP, FUEL TUBE W/GROMMET, NO.1 77286B - CLAMP, FUEL TUBE W/GROMMET, NO.2 77289B - CLAMP, FUEL TUBE, NO.3 77295C - GROMMET, FUEL TUBE 77295D - GROMMET, FUEL TUBE 77414 - SUPPORT, FUEL TUBE GROMMET, NO.4 77740 - CANISTER ASSY, CHARCOAL 77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER) 77740B - HOSE, FUEL, NO.2(FOR CHARCOAL CANISTER) 77795 - HOSE, CHARCOAL CANISTER OUTLET, NO.2 77796 - HOSE, CHARCOAL CANISTER OUTLET, NO.3 ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
