TOYOTA PROGRES JCG15-AEPVF / ELECTRICAL / SWITCH RELAY COMPUTER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

SWITCH RELAY COMPUTER

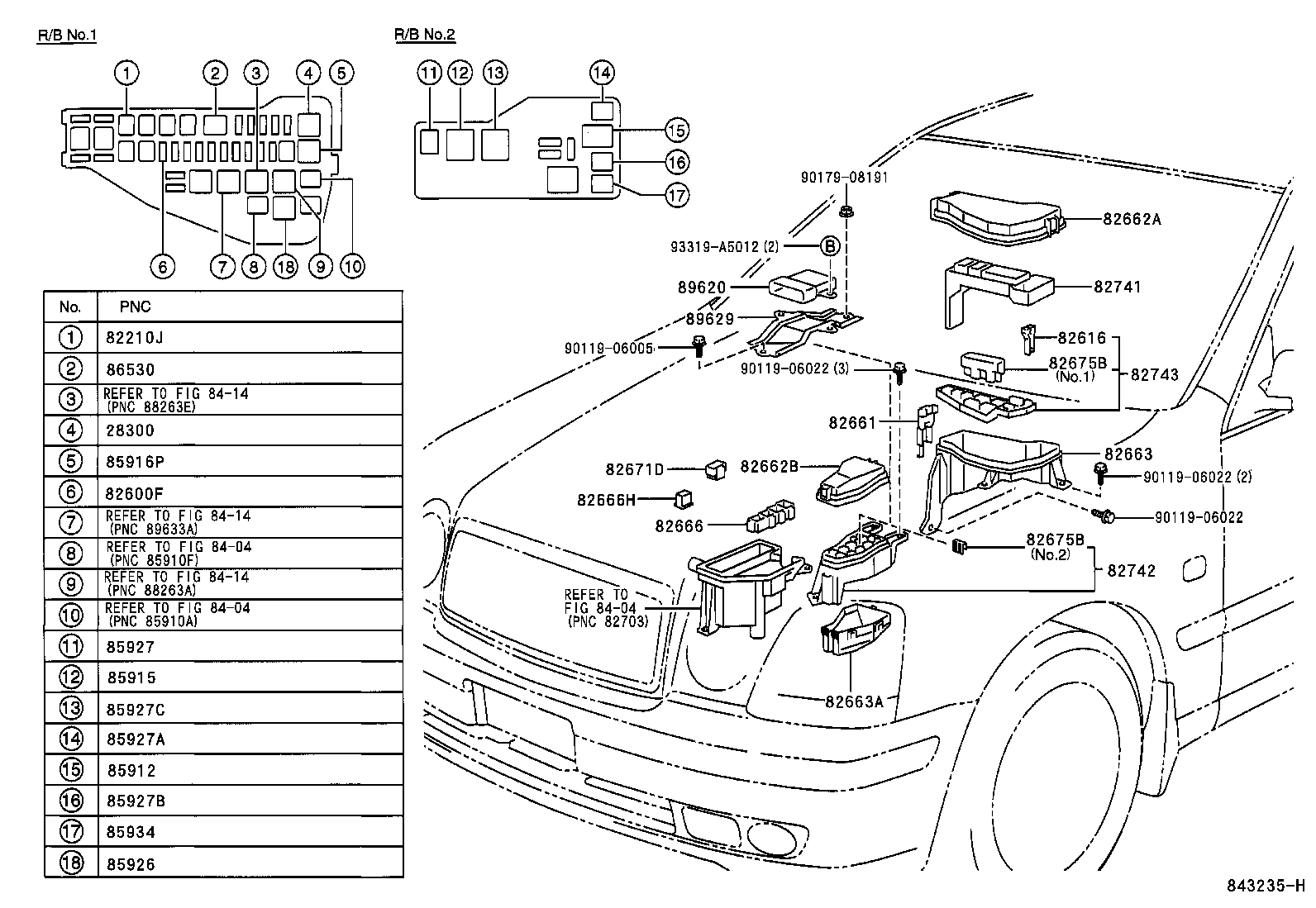

ｴﾝｼﾞﾝﾙ-ﾑ ILLUST NO. 2 OF 6(9912-0104)JCG15

PROGRES | SWITCH RELAY COMPUTER 28300 - RELAY ASSY, STARTER 82210J - FUSIBLE LINK 82600F - FUSE, FUSE BLOCK 82616 - PULLER, FUSE 82661 - COVER, RELAY BLOCK, NO.1 82662A - COVER, RELAY BLOCK, UPPER, NO.1 82662B - COVER, RELAY BLOCK, UPPER, NO.2 82663 - COVER, RELAY BLOCK, LOWER 82663A - COVER, RELAY BLOCK, LOWER, NO.2 82666 - HOLDER, CONNECTOR 82666H - HOLDER, CONNECTOR, NO.2 82671D - BLOCK, JUNCTION 82675B - TERMINAL, JUNCTION 82675B - TERMINAL, JUNCTION 82741 - BLOCK, ENGINE ROOM RELAY 82742 - BLOCK, ENGINE ROOM RELAY, NO.2 82743 - BLOCK, ENGINE ROOM RELAY, NO.3 ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 85912 - RELAY, DEFOGGER 85915 - RELAY, MAIN 85916P - RELAY, HEADLAMP 85926 - RELAY, HEADLAMP DIMMER 85927 - RELAY, COOLING FAN 85927A - RELAY, COOLING FAN, NO.2 85927B - RELAY, COOLING FAN, NO.3 85927C - RELAY, COOLING FAN, NO.4 85934 - RELAY, MAGNET-CLUTCH 86530 - RELAY ASSY, HORN 89620 - IGNITER ASSY 89629 - BRACKET, IGNITER ASSY ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
