TOYOTA WINDOM MCV20-ATPGK / BODY / FUEL TANK TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

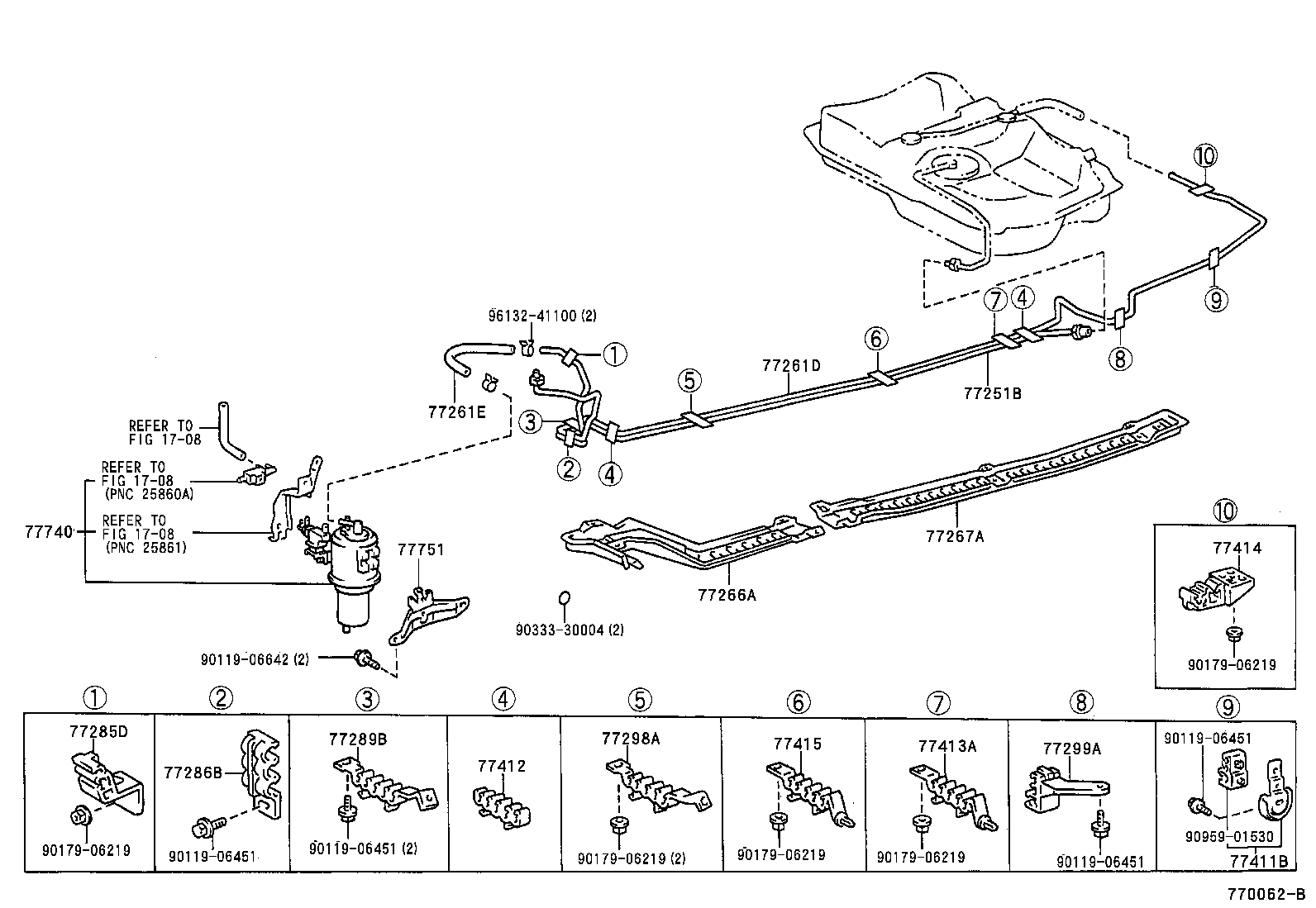

FUEL TANK TUBE

FRONT CANISTER ILLUST NO. 2 OF 2(9608-9908) ; (9908- )MCV21

WINDOM | FUEL TANK TUBE ** Refer Fig ** Refer Fig ** Refer Fig 77251B - TUBE, FUEL MAIN 77261D - TUBE, FUEL TANK TO CANISTER 77261E - HOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE) 77266A - PROTECTOR, FUEL TUBE, NO.1 77267A - PROTECTOR, FUEL TUBE, NO.2 77285D - CLAMP, FUEL TUBE, NO.1 77286B - CLAMP, FUEL TUBE W/GROMMET, NO.2 77289B - CLAMP, FUEL TUBE, NO.3 77298A - CLAMP, FUEL TUBE, NO.4 77299A - CLAMP, FUEL TUBE, NO.5 77411B - SUPPORT, FUEL TUBE GROMMET, NO.1 77412 - SUPPORT, FUEL TUBE GROMMET, NO.2 77413A - SUPPORT, FUEL TUBE GROMMET, NO.3 77414 - SUPPORT, FUEL TUBE GROMMET, NO.4 77415 - SUPPORT, FUEL TUBE GROMMET, NO.5 77740 - CANISTER ASSY, CHARCOAL 77751 - BRACKET, CHARCOAL CANISTER BASE ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
