TOYOTA ALTEZZA ALTEZZA GITA GXE10-AEPVK / BODY / FUEL TANK TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

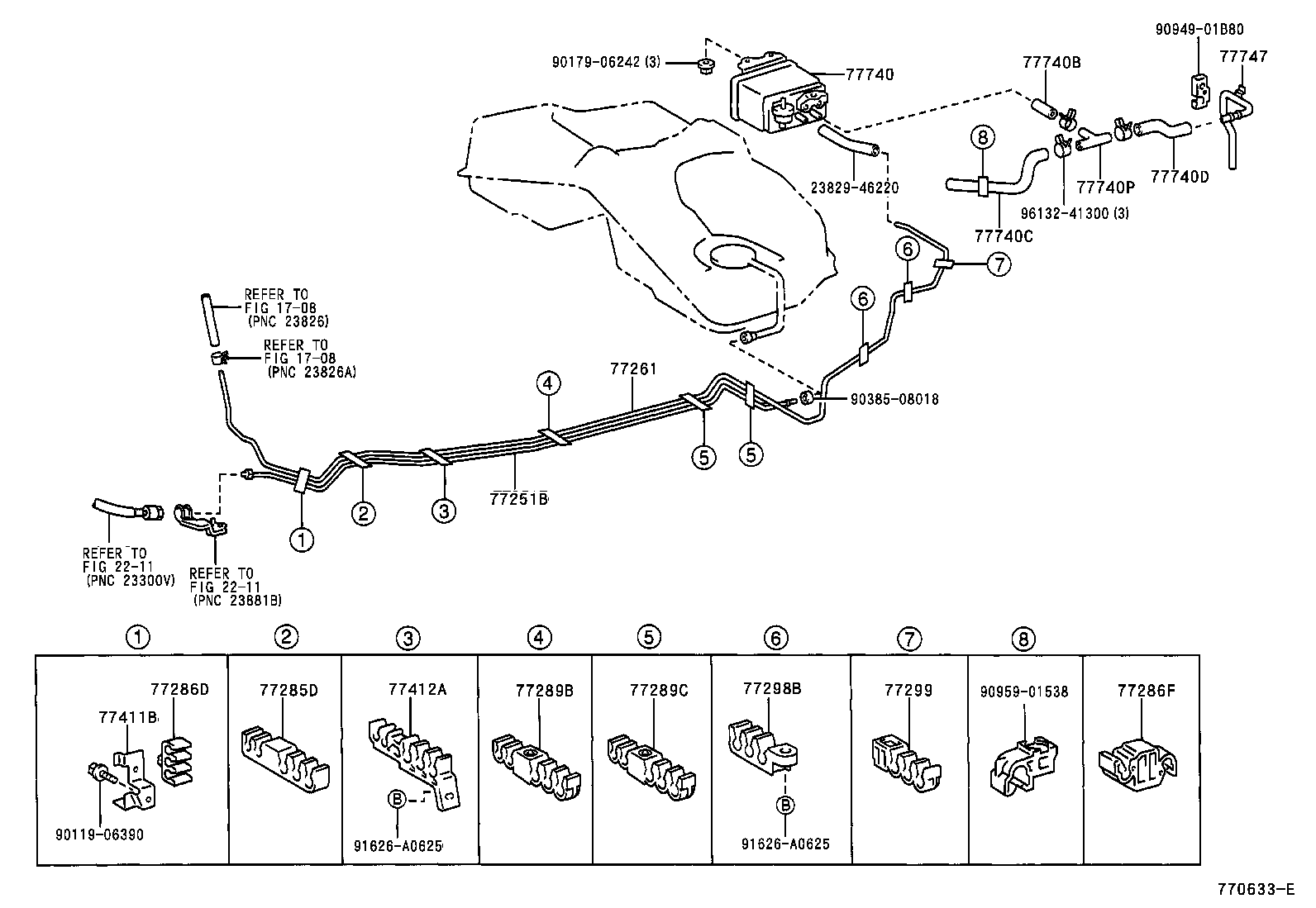

FUEL TANK TUBE

ILLUST NO. 2 OF 2(9810-0105)GXE10

ALTEZZA ALTEZZA GITA | FUEL TANK TUBE ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Std Part 77251B - TUBE, FUEL MAIN 77261 - TUBE SUB-ASSY, FUEL EMISSION 77285D - CLAMP, FUEL TUBE, NO.1 77286D - CLAMP, FUEL TUBE, NO.2 77286F - CLAMP, FUEL TUBE, NO.2 77289B - CLAMP, FUEL TUBE, NO.3 77289C - CLAMP, FUEL TUBE, NO.4 77298B - CLAMP, FUEL TUBE, NO.4 77299 - CLAMP, FUEL TUBE W/GROMMET, NO.5 77411B - SUPPORT, FUEL TUBE GROMMET, NO.1 77412A - SUPPORT, FUEL TUBE GROMMET, NO.2 77740 - CANISTER ASSY, CHARCOAL 77740B - HOSE, FUEL, NO.2(FOR CHARCOAL CANISTER) 77740C - HOSE, FUEL, NO.3(FOR CHARCOAL CANISTER) 77740D - HOSE, FUEL, NO.4(FOR CHARCOAL CANISTER) 77740P - WAY, 3(FOR CHARCOAL CANISTER) 77747 - PIPE, CHARCOAL CANISTER, NO.1 ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
