TOYOTA DYNA 200 TOYOACE G25 RZU100H-TKMQP3 / POWERTRAIN-CHASSIS / POWER TAKE OFF LEVER LINK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

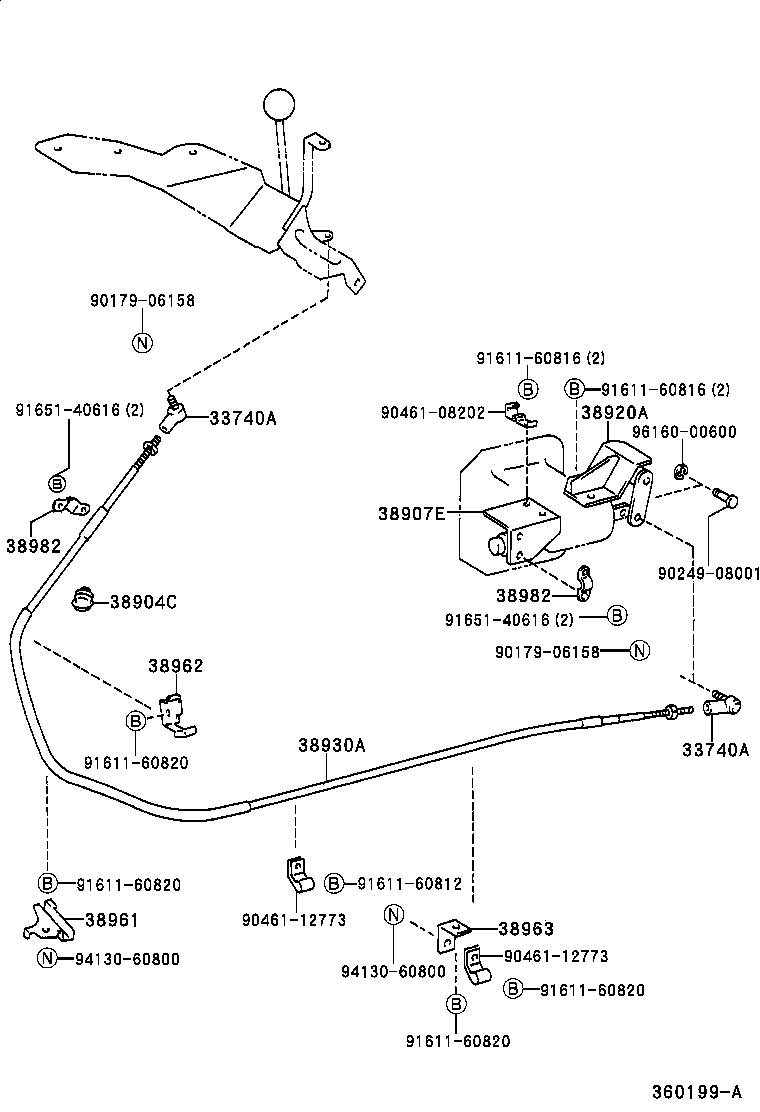

POWER TAKE OFF LEVER LINK

ILLUST NO. 2 OF 2(9708- )BU102,RZU100..T3..LPGB

DYNA 200 TOYOACE G25 | POWER TAKE OFF LEVER LINK 33740A - END ASSY, PUSH-PULL CONTROL CABLE 33740A - END ASSY, PUSH-PULL CONTROL CABLE 38904C - GROMMET, PUSH PULL CABLE 38907E - STAY SUB-ASSY, POWER TEKE-OFF CONTROL 38920A - LEVER ASSY, POWER TAKE-OFF CONTROL, NO.1 38930A - CABLE ASSY, PUSH PULL 38961 - BRACKET, CABLE CLAMP, NO.1 38962 - BRACKET, CABLE CLAMP, NO.2 38963 - BRACKET, CABLE CLAMP, NO.3 38982 - CLAMP, PUSH PULL CABLE, NO.1 38982 - CLAMP, PUSH PULL CABLE, NO.1 ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
