TOYOTA DYNA TOYOACE BU301-PSMJS3 / ELECTRICAL / HEATING AIR CONDITIONING COOLER PIPING

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

HEATING AIR CONDITIONING COOLER PIPING

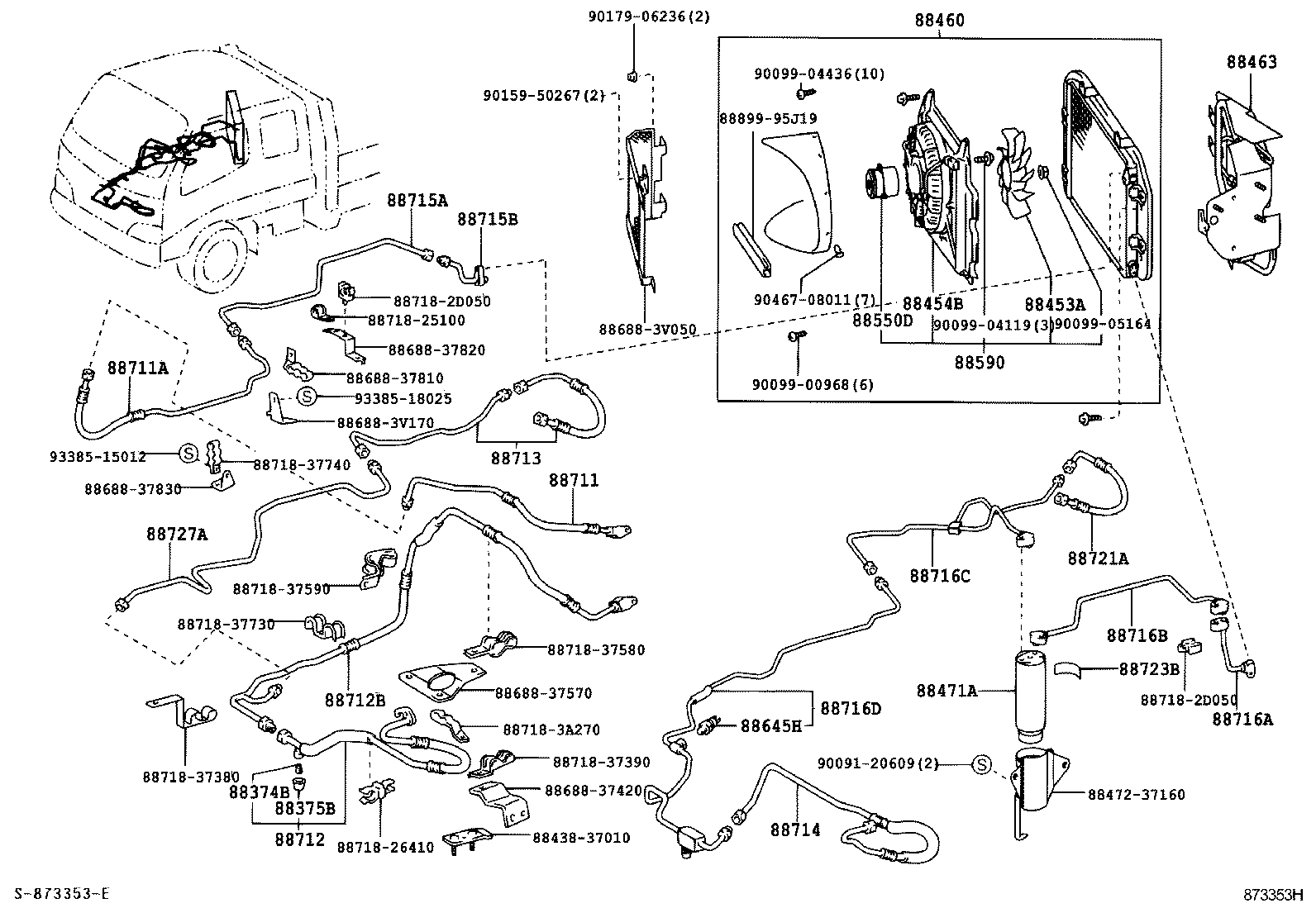

ｱﾘ(ﾘﾔ ｴｱｺﾝ) ILLUST NO. 1 OF 2(9905-0108)BU30#..DCB

DYNA TOYOACE | HEATING AIR CONDITIONING COOLER PIPING 88374B - VALVE, SERVICE, NO.1 88375B - CAP, SERVICE VALVE, NO.1 ** Std Part 88453A - FAN, COOLING 88454B - SHROUD, FAN 88460 - CONDENSER ASSY, COOLER 88463 - BRACKET, COOLER CONDENSER, NO.1 88471A - TANK, RECEIVER ** Std Part 88550D - MOTOR ASSY, BLOWER 88590 - BLOWER ASSY, W/SHROUD 88645H - SWITCH, PRESSURE NO.1 ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 88711A - HOSE, COOLER REFRIGERANT DISCHARGE, NO.2 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 88712B - HOSE, COOLER REFRIGERANT SUCTION 88713 - HOSE, COOLER REFRIGERANT SUCTION, NO.2 88714 - HOSE, COOLER REFRIGERANT LIQUID, NO.1 88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A 88715B - PIPE, COOLER REFRIGERANT DISCHARGE, B 88716A - PIPE, COOLER REFRIGERANT LIQUID, A 88716B - PIPE, COOLER REFRIGERANT LIQUID, B 88716C - PIPE, COOLER REFRIGERANT LIQUID, C 88716D - PIPE, COOLER REFRIGERANT LIQUID, D ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part 88721A - HOSE, LIQUID, A 88723B - LABEL, COOLER SERVICE CAUTION 88727A - PIPE, COOLER REFRIGERANT SUCTION, A ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
