TOYOTA PRIUS NHW11-AEEEB / ELECTRICAL / BATTERY BATTERY CABLE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

BATTERY BATTERY CABLE

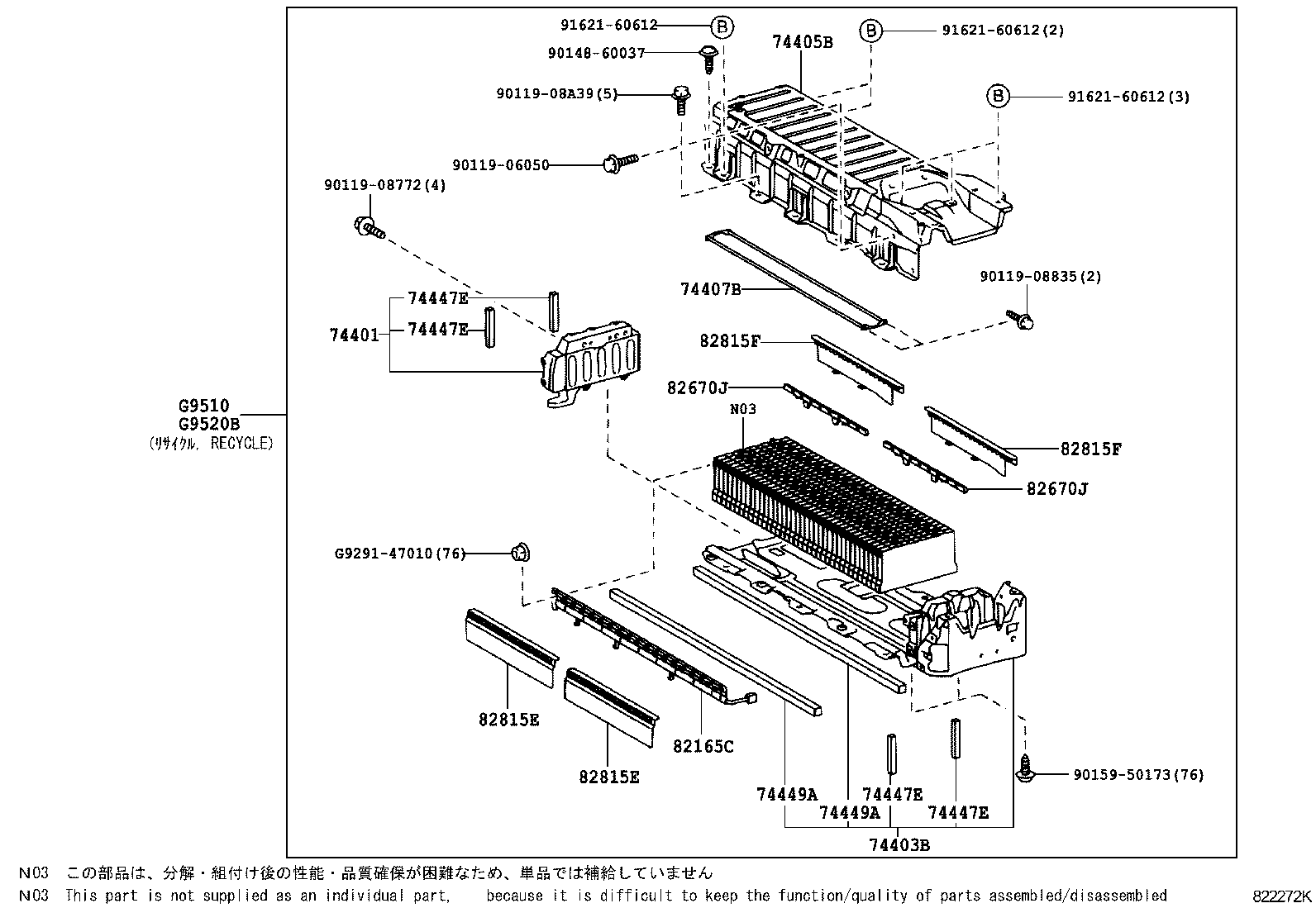

ILLUST NO. 4 OF 4(0005- )

PRIUS | BATTERY BATTERY CABLE 74401 - BRACKET SUB-ASSY, BATTERY, RH 74403B - CARRIER SUB-ASSY, BATTERY 74405B - COVER SUB-ASSY, BATTERY 74407B - BOLT SUB-ASSY, BATTERY CLAMP 74447E - PACKING, BATTERY, NO.1 74447E - PACKING, BATTERY, NO.1 74447E - PACKING, BATTERY, NO.1 74447E - PACKING, BATTERY, NO.1 74449A - PACKING, BATTERY, NO.2 74449A - PACKING, BATTERY, NO.2 82165C - WIRE, FRAME, NO.2 82670J - BLOCK ASSY, JUNCTION 82670J - BLOCK ASSY, JUNCTION 82815E - COVER, WIRING HARNESS PROTECTOR, NO.3 82815E - COVER, WIRING HARNESS PROTECTOR, NO.3 82815F - COVER, WIRING HARNESS PROTECTOR, NO.4 82815F - COVER, WIRING HARNESS PROTECTOR, NO.4 ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part G9510 - BATTERY ASSY, HV SUPPLY G9520B - BATTERY ASSY, HV RECYCLE
