TOYOTA RAV4 J L ACA21W-AWMGH / TOOL-ENGINE-FUEL / FUEL INJECTION SYSTEM

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

FUEL INJECTION SYSTEM

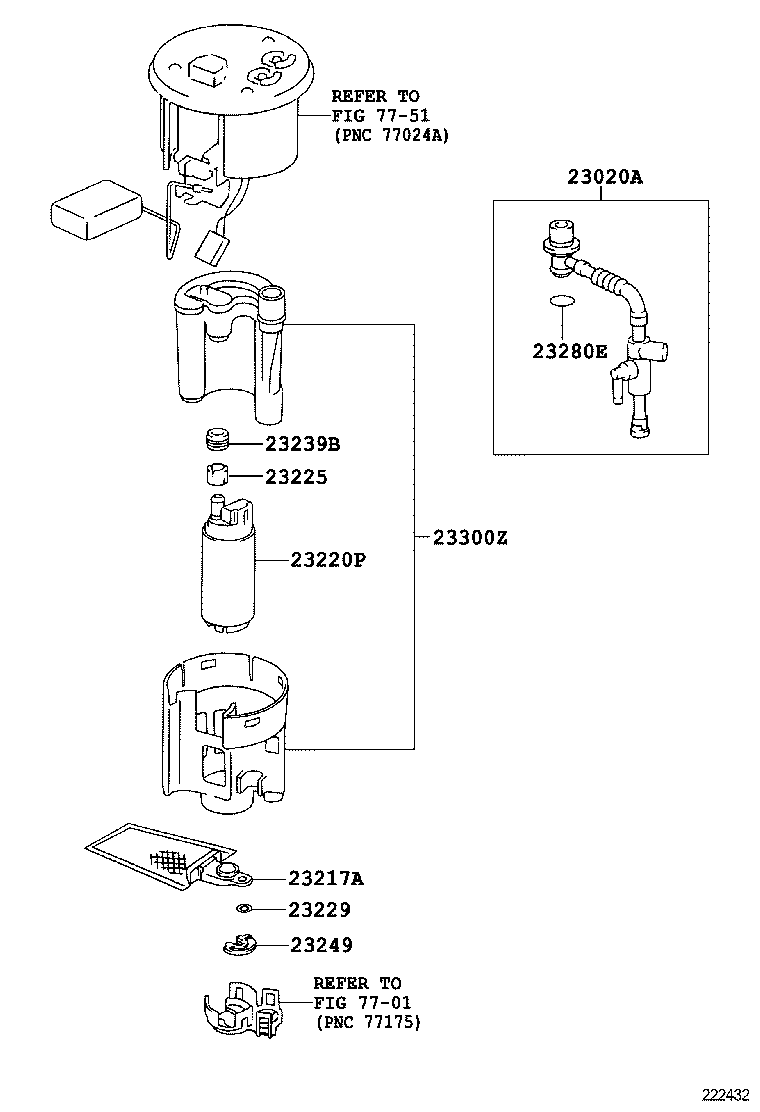

ILLUST NO. 2 OF 2(0005- )1AZFSE

 RAV4 J L |  FUEL INJECTION SYSTEM 23020A - REGULATOR ASSY, FUEL PRESSURE W/JET PUMP 23217A - FILTER, FUEL PUMP 23220P - PUMP ASSY, FUEL 23225 - SPACER, FUEL PUMP 23229 - CLIP(FOR FUEL PUMP FILTER) 23239B - SEAL, FUEL PUMP FILTER 23249 - RUBBER, CUSHION(FOR FUEL PUMP) 23280E - RING, O(FOR FUEL PRESSURE REGULATOR) 23300Z - FILTER, FUEL(FOR FUEL TANK) ** Refer Fig ** Refer Fig
