TOYOTA MEGA CRUISER BXD20V-RRPEZ / POWERTRAIN-CHASSIS / POWER STEERING TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

POWER STEERING TUBE

ILLUST NO. 2 OF 2(9906- )

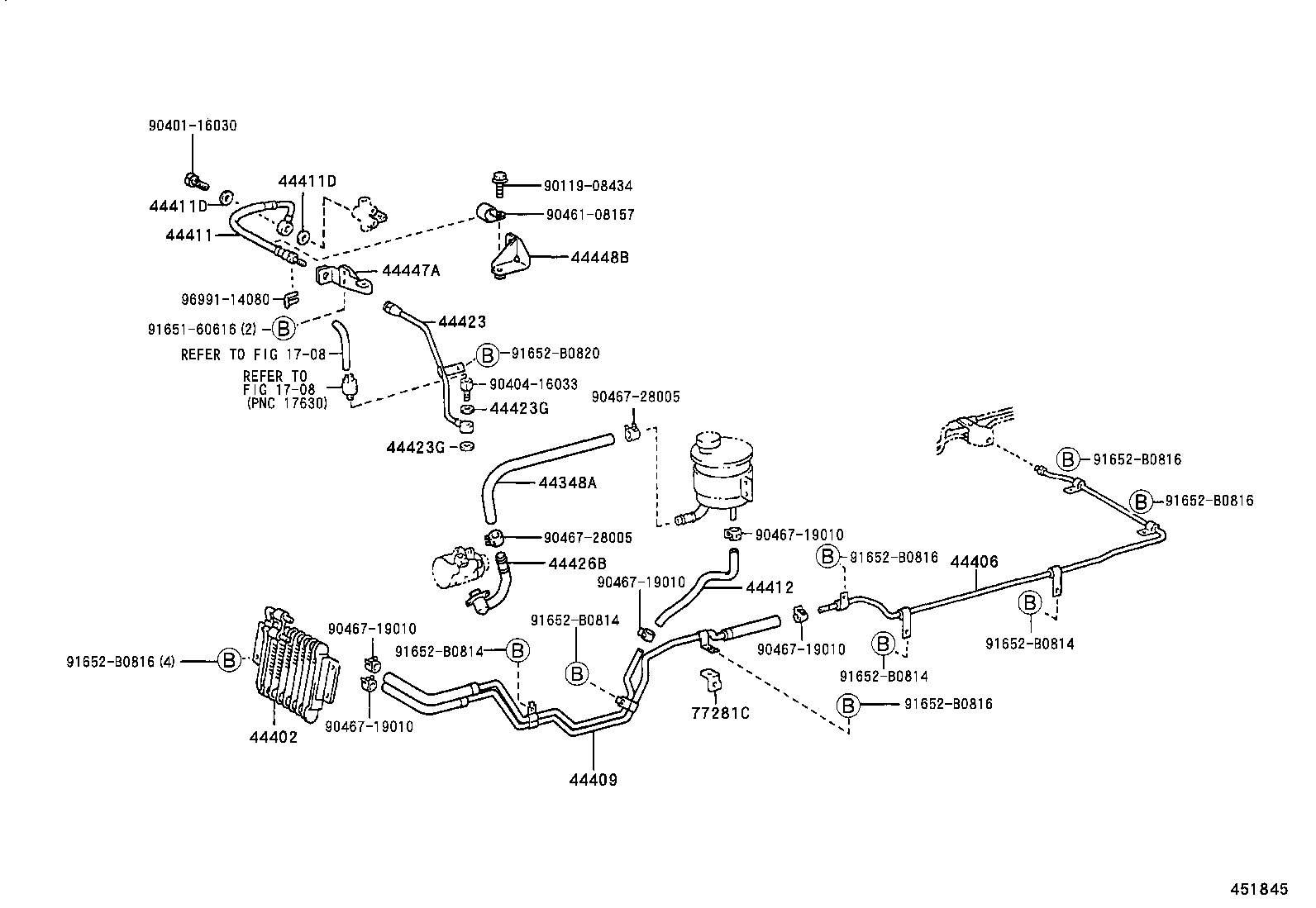

MEGA CRUISER | POWER STEERING TUBE ** Refer Fig ** Refer Fig 44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1 44402 - COOLER SUB-ASSY, POWER STEERING OIL, NO.1 44406 - TUBE SUB-ASSY, RETURN 44409 - COOLER SUB-ASSY, OIL, NO.2 44411 - HOSE, PRESSURE FEED 44411D - GASKET(FOR PRESSURE FEED HOSE) 44411D - GASKET(FOR PRESSURE FEED HOSE) 44412 - HOSE, RETURN 44423 - TUBE, OIL PUMP TO GEAR BOX 44423G - GASKET, UNION BOLT 44423G - GASKET, UNION BOLT 44426B - TUBE, OIL RESERVOIR TO PUMP 44447A - BRACKET, HOSE SUPPORT, NO.1 44448B - BRACKET, HOSE SUPPORT, NO.2 77281C - BRACKET, FUEL MAIN TUBE, NO.1 ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
