TOYOTA ALPHARD G V ANH15W-PFPGK / BODY / SEAT SEAT TRACK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

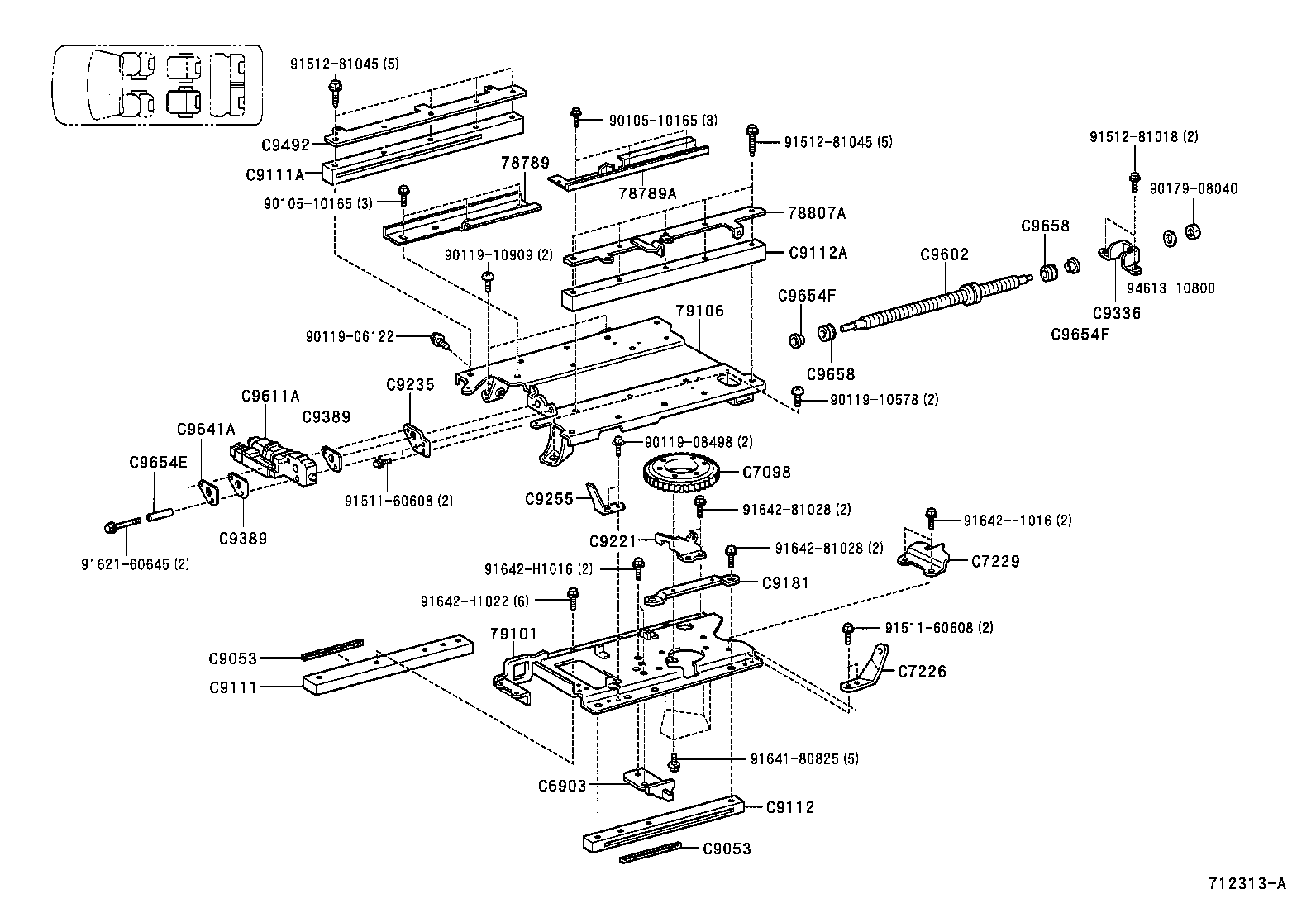

SEAT SEAT TRACK

ｻｲﾄﾞ ﾘﾌﾄｱﾂﾌﾟ ｼ-ﾄ ILLUST NO. 8 OF10(0205-0307)07S..AX,MX,MZ

ALPHARD G V | SEAT SEAT TRACK 78789 - BRACKET, SUB SEAT LEG 78789A - BRACKET, SUB SEAT LEG 78807A - BRACKET SUB-ASSY, SUB SEAT, REAR 79101 - FRAME SUB-ASSY, NO.1 SEAT CUSHION 79106 - LEG SUB ASSY, NO.1 SEAT, LH ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part C6903 - BRACKET SUB-ASSY, SLIDE BED LOCK C7098 - PLATE SUB-ASSY, REAR SEAT TURN, LOWER C7226 - BRACKET, NO.1 SEAT LEG, NO.2 C7229 - PLATE, NO.1 SEAT LEG C9053 - ROLLER SUB-ASSY, PLATFORM GUIDE C9053 - ROLLER SUB-ASSY, PLATFORM GUIDE C9111 - RAIL, POWER LIFT ARM GUIDE MAIN, RH C9111A - RAIL, POWER LIFT ARM GUIDE MAIN, RH C9112 - RAIL, POWER LIFT ARM GUIDE MAIN, LH C9112A - RAIL, POWER LIFT ARM GUIDE MAIN, LH C9181 - BRACKET, BEAM TO FRAME C9221 - HOOK, POWER LIFT GUIDE C9235 - PLATE, POWER LIFT ARM GUIDE STOP C9255 - BRACKET, PLATFORM TURN LOCK C9336 - GUSSET, POWER LIFT PLATFORM C9389 - CUSHION, PLATFORM STOPPER C9389 - CUSHION, PLATFORM STOPPER C9492 - STOPPER, POWER LIFT SAFETY, NO.2 C9602 - ROD SUB-ASSY, POWER LIFT CYLINDER C9611A - MOTOR, POWER LIFT C9641A - BRACKET, POWER LIFT MOTOR, NO.1 C9654E - COLLAR, POWER LIFT CYLINDER C9654F - COLLAR, POWER LIFT CYLINDER C9654F - COLLAR, POWER LIFT CYLINDER C9658 - PLATE, POWER LIFT CYLINDER ROD C9658 - PLATE, POWER LIFT CYLINDER ROD
