TOYOTA CALDINA ST246W-DWPZZ / ELECTRICAL / WINDSHIELD WASHER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

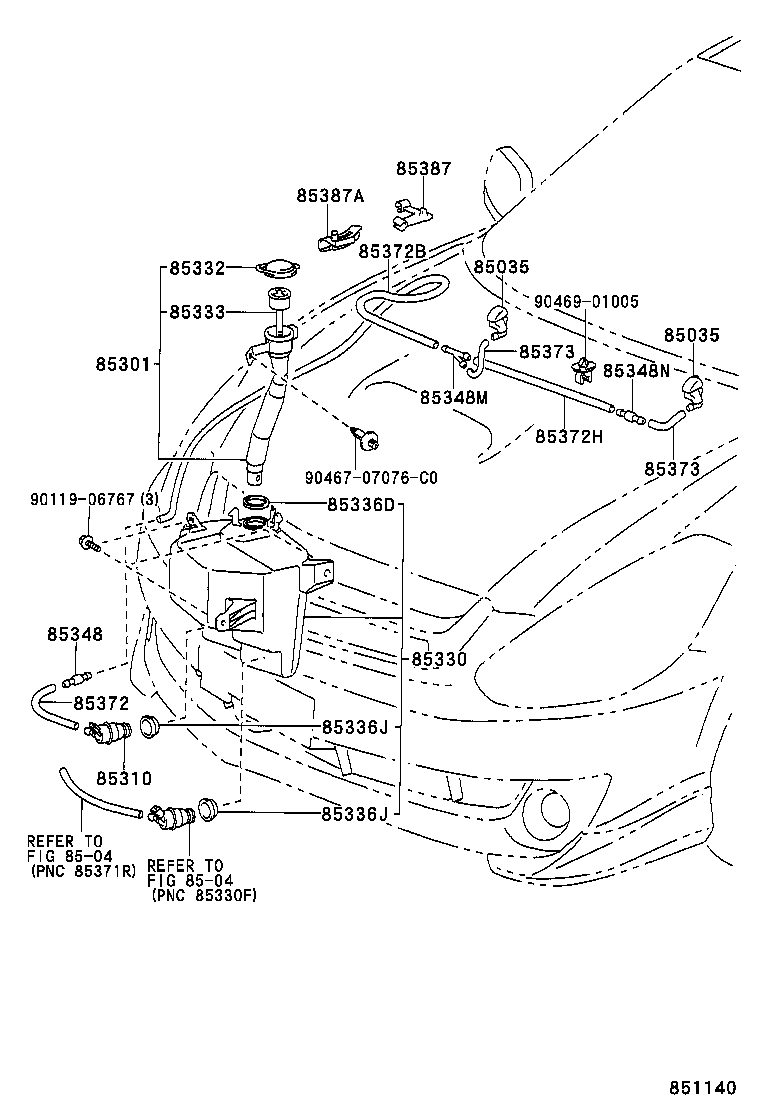

WINDSHIELD WASHER

TYPE B (0209- )ST246

CALDINA | WINDSHIELD WASHER 85035 - NOZZLE SUB-ASSY, WASHER 85035 - NOZZLE SUB-ASSY, WASHER ** Refer Fig ** Refer Fig 85301 - INLET SUB-ASSY, WASHER 85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER 85330 - JAR ASSY, WINDSHIELD WASHER 85332 - CAP, WINDSHIELD WASHER JAR 85333 - FILTER, WINDSHIELD WASHER JAR 85336D - PACKING, WINDSHIELD WASHER JAR 85336J - PROTECTOR, WASHER JAR 85336J - PROTECTOR, WASHER JAR 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 85348M - JOINT, WINDSHIELD WASHER HOSE, NO.3 85348N - JOINT, WINDSHIELD WASHER HOSE, NO.4 85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1 85372B - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2 85372H - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) 85387 - CLAMP NO.1 (FOR WINDSEIELD WASHER) 85387A - CLAMP, WASHER, NO.2 ** Std Part ** Std Part ** Std Part
