TOYOTA HARRIER ACU15W-AWPGK / TOOL-ENGINE-FUEL / RADIATOR WATER OUTLET

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

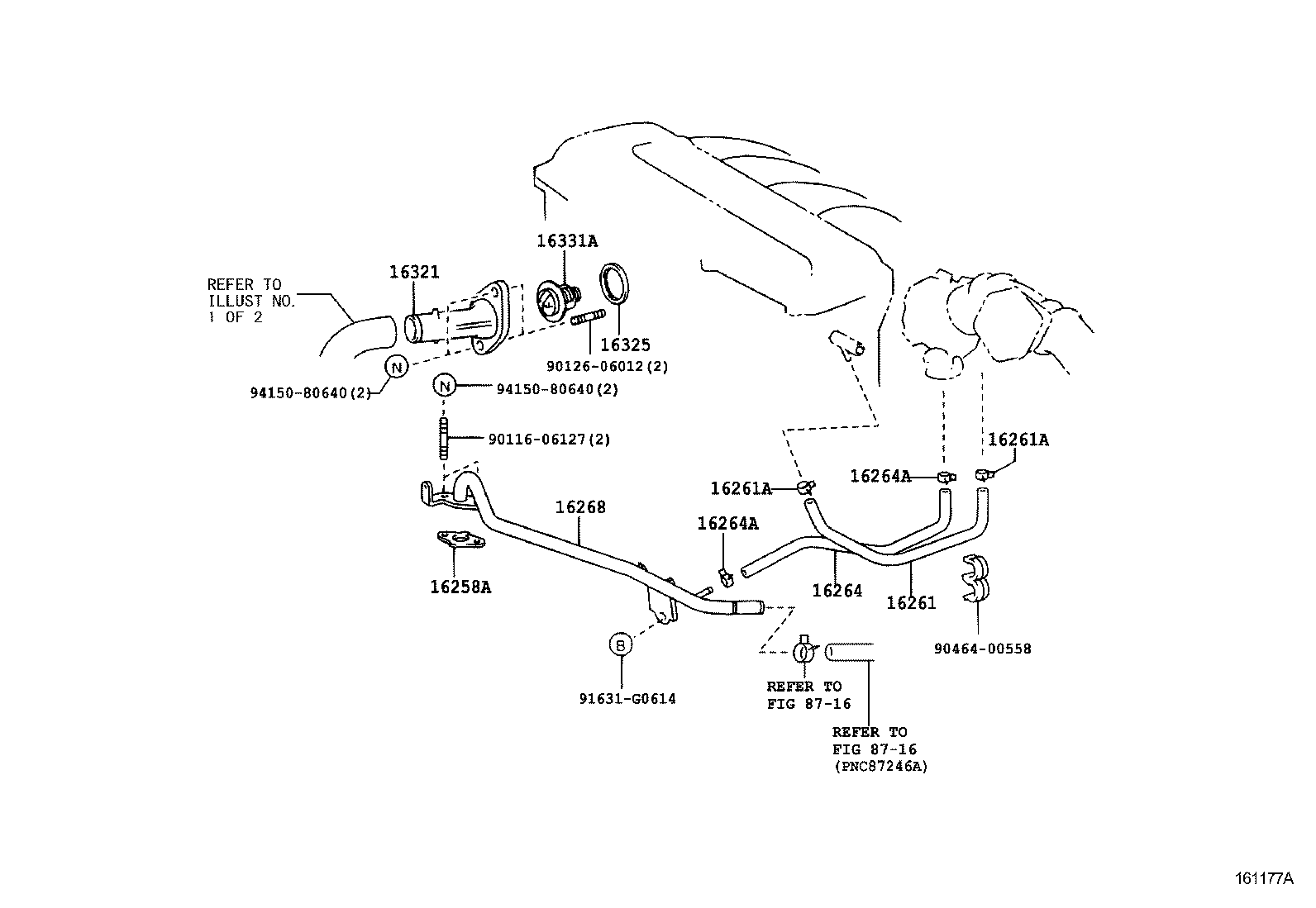

RADIATOR WATER OUTLET

ILLUST NO. 2 OF 2(0011- )2AZFE

HARRIER | RADIATOR WATER OUTLET 16258A - GASKET(FOR HEATER RETURN) 16261 - HOSE, WATER BY-PASS 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) 16264 - HOSE, WATER BY-PASS, NO.2 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) 16268 - PIPE, WATER BY-PASS, NO.1 16321 - INLET, WATER 16325 - GASKET, WATER INLET HOUSING, NO.1 16331A - THERMOSTAT ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
