TOYOTA HILUX LN167-PRMDS / BODY / REAR DOOR PANEL GLASS

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

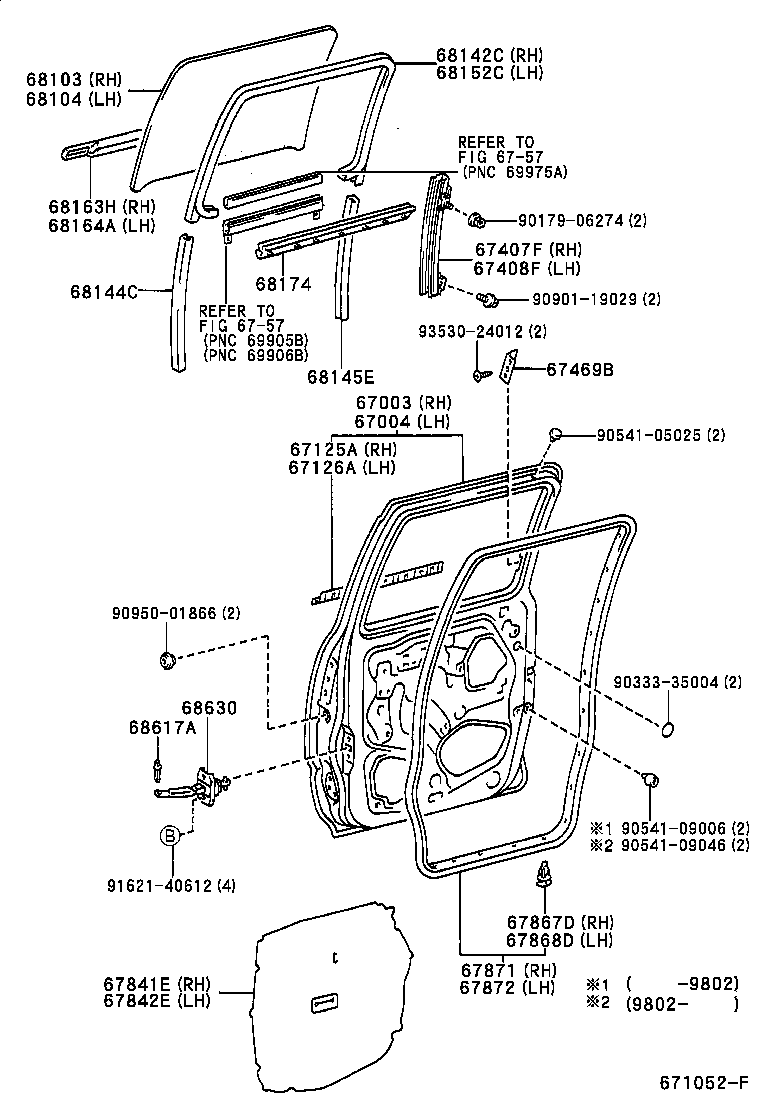

REAR DOOR PANEL GLASS

ILLUST NO. 2 OF 2(9708- )TW1

HILUX | REAR DOOR PANEL GLASS 67003 - PANEL SUB-ASSY, REAR DOOR, RH 67004 - PANEL SUB-ASSY, REAR DOOR, LH 67125A - REINFORCEMENT, REAR DOOR OUTSIDE PANEL, RH 67126A - REINFORCEMENT, REAR DOOR OUTSIDE PANEL, LH 67407F - FRAME SUB-ASSY, REAR DOOR WINDOW, REAR LOWER RH 67408F - FRAME SUB-ASSY, REAR DOOR WINDOW, REAR LOWER LH 67469B - BRACKET, REAR DOOR WINDOW FRAME, LOWER ** Refer Fig ** Refer Fig 67841E - COVER, REAR DOOR SERVICE HOLE, RH 67842E - COVER, REAR DOOR SERVICE HOLE, LH 67867D - RETAINER, REAR DOOR WEATHERSTRIP, RH 67868D - RETAINER, REAR DOOR WEATHERSTRIP, LH 67871 - WEATHERSTRIP, REAR DOOR, RH 67872 - WEATHERSTRIP, REAR DOOR, LH 68103 - GLASS SUB-ASSY, REAR DOOR, RH 68104 - GLASS SUB-ASSY, REAR DOOR, LH 68142C - RUN, REAR DOOR GLASS, RH 68144C - RUN, REAR DOOR GLASS, LOWER FRONT 68145E - RUN, REAR DOOR GLASS, LOWER REAR 68152C - RUN, REAR DOOR GLASS, LH 68163H - WEATHERSTRIP, REAR DOOR GLASS, OUTER RH 68164A - WEATHERSTRIP, REAR DOOR GLASS, OUTER LH 68174 - WEATHERSTRIP, REAR DOOR GLASS, INNER LH 68617A - PIN, REAR DOOR CHECK 68630 - CHECK ASSY, REAR DOOR ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
