TOYOTA KLUGER L V ACU25W-BWPGK / BODY / FRONT SEAT SEAT TRACK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

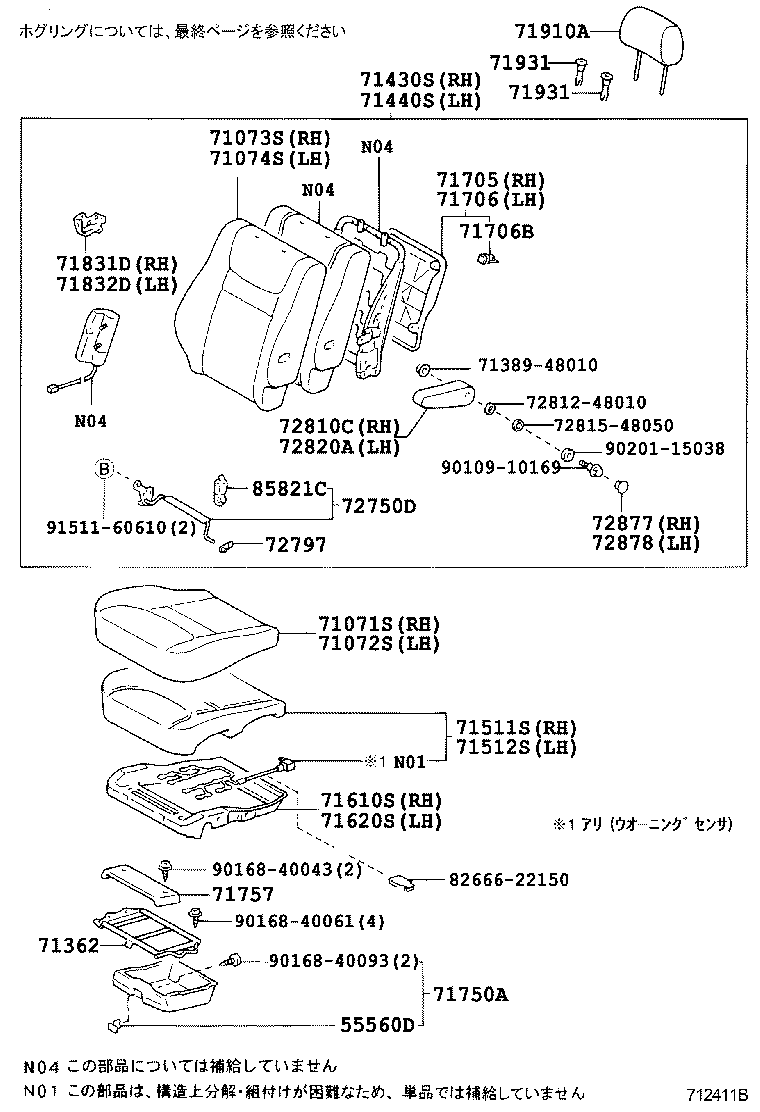

FRONT SEAT SEAT TRACK

ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ) ILLUST NO. 1 OF 2(0011-0308)

KLUGER L V | FRONT SEAT SEAT TRACK 55560D - LOCK ASSY, SEAT UNDER TRAY 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) 71362 - BRACKET, FRONT SEAT SET, NO.2 ** Std Part 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) 71705 - BOARD SUB-ASSY, FRONT SEAT BACK, RH 71706 - BOARD SUB-ASSY, FRONT SEAT BACK, LH 71706B - CLIP, FRONT SEAT BACK BOARD 71750A - TRAY ASSY, FRONT SEAT UNDER 71757 - PLATE, SEAT UNDER TRAY, NO.1 71831D - COVER, FRONT SEAT HINGE, RH 71832D - COVER, FRONT SEAT HINGE, LH 71910A - HEADREST ASSY, FRONT SEAT 71931 - SUPPORT, FRONT SEAT HEADREST 71931 - SUPPORT, FRONT SEAT HEADREST 72750D - ADJUSTER ASSY, LUMBAR SUPPORT, RH 72797 - SPACER, LUMBAR SUPPORT 72810C - ARMREST ASSY, FRONT SEAT, CENTER ** Std Part ** Std Part 72820A - ARMREST ASSY, SEAT, LH 72877 - COVER, SEAT ARMREST, RH 72878 - COVER, SEAT ARMREST, LH ** Std Part 85821C - MOTOR ASSY, POWER SEAT ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
