VALVE BODY OIL STRAINER ATM

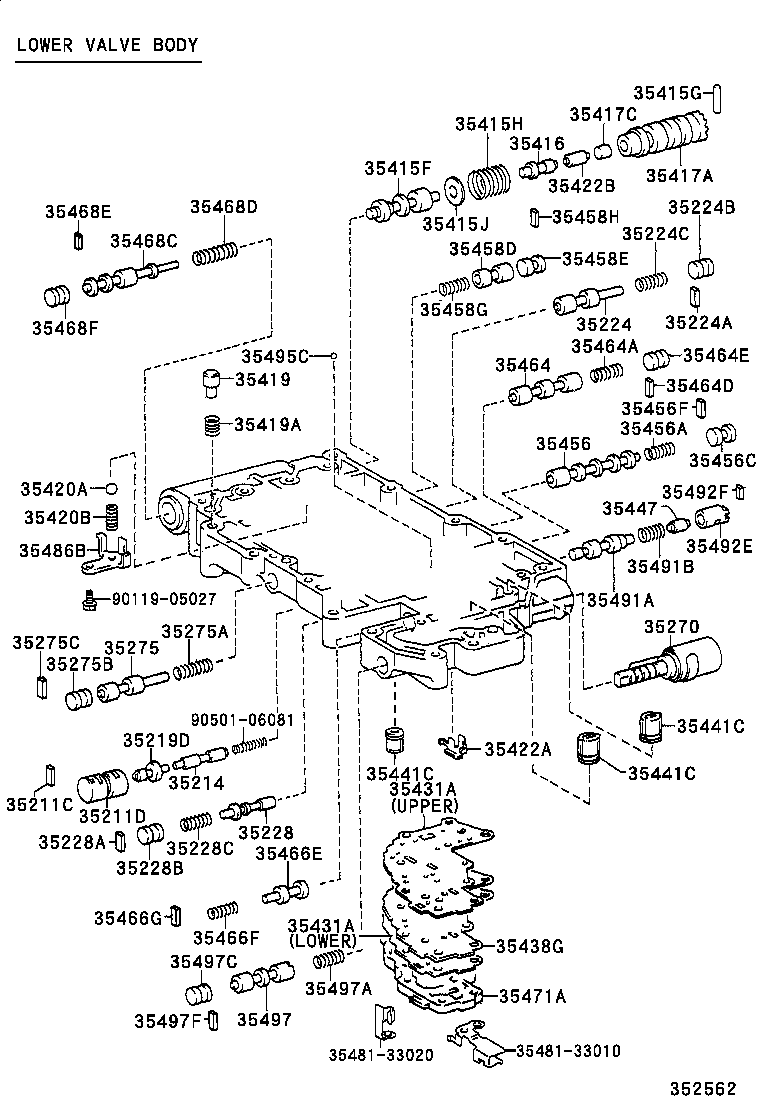

A541E ILLUST NO. 3 OF 5(0002-0207)

PRONARD | VALVE BODY OIL STRAINER ATM 35211C - KEY, STRAIGHT (FOR LOCK UP SIGNAL VALVE) 35211D - SLEEVE, LOCK UP CONTROL VALVE 35214 - VALVE, LOCK UP CONTROL 35219D - PLUNGER, LOCK UP CONTROL VALVE 35224 - VALVE, REVERSE CONTROL 35224A - KEY, STRAIGHT (FOR REVERSE CONTROL VALVE) 35224B - PLUG (FOR REVERSE CONTROL VALVE) 35224C - SPRING, COMPRESSION (FOR REVERSE CONTROL VALVE) 35228 - VALVE, 2ND MODULATOR 35228A - KEY, STRAIGHT (FOR 2ND MODULATOR VALVE) 35228B - PLUG (FOR 2ND MODULATOR VALVE) 35228C - SPRING, COMPRESSION (FOR 2ND MODULATOR VALVE) 35270 - SOLENOID ASSY, SHIFT CONTROL 35275 - VALVE, SOLENOID MODULATOR 35275A - SPRING, COMPRESSION (FOR SOLENOID MODULATOR VALVE) 35275B - PLUG (FOR SOLENOID MODULATOR VALVE) 35275C - KEY, STRAIGHT 35415F - VALVE, PRIMARY REGULATOR 35415G - KEY, STRAIGHT (FOR PRIMARY REGULATOR VALVE) 35415H - SPRING, COMPRESSION (FOR PRIMARY REGULATOR VALVE) 35415J - WASHER (FOR PRIMARY REGULATOR VALVE) 35416 - PLUNGER, PRIMARY REGULATOR VALVE, NO.1 35417A - SLEEVE, PRIMARY REGULATOR VALVE 35417C - PLUG(FOR PRIMARY REGULATOR VALVE) 35419 - VALVE, CHECK, NO.1 35419A - SPRING, COMPRESSION (FOR CHECK VALVE) 35420A - BALL (FOR PRESSURE RELIEF) 35420B - SPRING (FOR PRESSURE RELIEF) 35422A - ST0PPER, VALVE VIBRATING 35422B - PLUNGER, PRIMARY REGULATOR VALVE, NO.2 35431A - GASKET, UPPER VALVE BODY COVER 35431A - GASKET, UPPER VALVE BODY COVER 35438G - PLATE, VALVE BODY, NO.2 35441C - STRAINER, SOLENOID OIL 35441C - STRAINER, SOLENOID OIL 35441C - STRAINER, SOLENOID OIL 35447 - PLUNGER, ACCUMULATOR CONTROL VALVE 35456 - VALVE, 2-3 SHIFT 35456A - SPRING, COMPRESSION (FOR 2-3 SHIFT VALVE) 35456C - PLUG (FOR 2-3 SHIFT VALVE) 35456F - KEY, STRAIGHT (FOR 2-3 SHIFT VALVE) 35458D - VALVE, CUT BACK 35458E - PLUG (FOR CUT BACK VALVE) 35458G - SPRING, COMPRESSION (FOR CUT BACK VALVE) 35458H - KEY, STRAIGHT (FOR CUT BACK VALVE) 35464 - VALVE, 1-2 SHIFT 35464A - SPRING, COMPRESSION (FOR 1-2 SHIFT VALVE) 35464D - KEY, STRAIGHT (FOR 1-2 SHIFT VALVE) 35464E - PLUG (FOR 1-2 SHIFT VALVE) 35466E - VALVE, 2ND LOCK 35466F - SPRING, COMPRESSION (FOR 2ND LOCK VALVE) 35466G - KEY, STRAIGHT (FOR 2ND LOCK VALVE) 35468C - VALVE, SECONDARY REGULATOR 35468D - SPRING, COMPRESSION (FOR SECONDARY REGULATOR VALVE) 35468E - KEY, STRAIGHT (FOR SECONDARY REGULATOR VALVE) 35468F - PLUG (FOR SECONDARY REGULATOR VALVE) 35471A - COVER, UPPER VALVE BODY ** Std Part ** Std Part 35486B - SEAT, PRESSURE RELIEF VALVE SPRING 35491A - VALVE, ACCUMULATOR CONTROL, NO.1 35491B - SPRING, COMPRESSION (FOR ACCUMULATOR CONTROL VALVE NO.1) 35492E - SLEEVE, ACCUMULATOR CONTROL VALVE 35492F - KEY, STRAIGHT (FOR COVER DRIVE EXHAUST VALVE) 35495C - BALL, CHECK, NO.1 35497 - VALVE, 3-4 SHIFT 35497A - SPRING, COMPRESSION (FOR 3-4 SHIFT VALVE) 35497C - PLUG (FOR 3-4 SHIFT VALVE) 35497F - KEY, STRAIGHT (FOR 3-4 SHIFT VALVE) ** Std Part ** Std Part
