TOYOTA WILL VS ZZE129-AHPNK / BODY / FUEL TANK TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

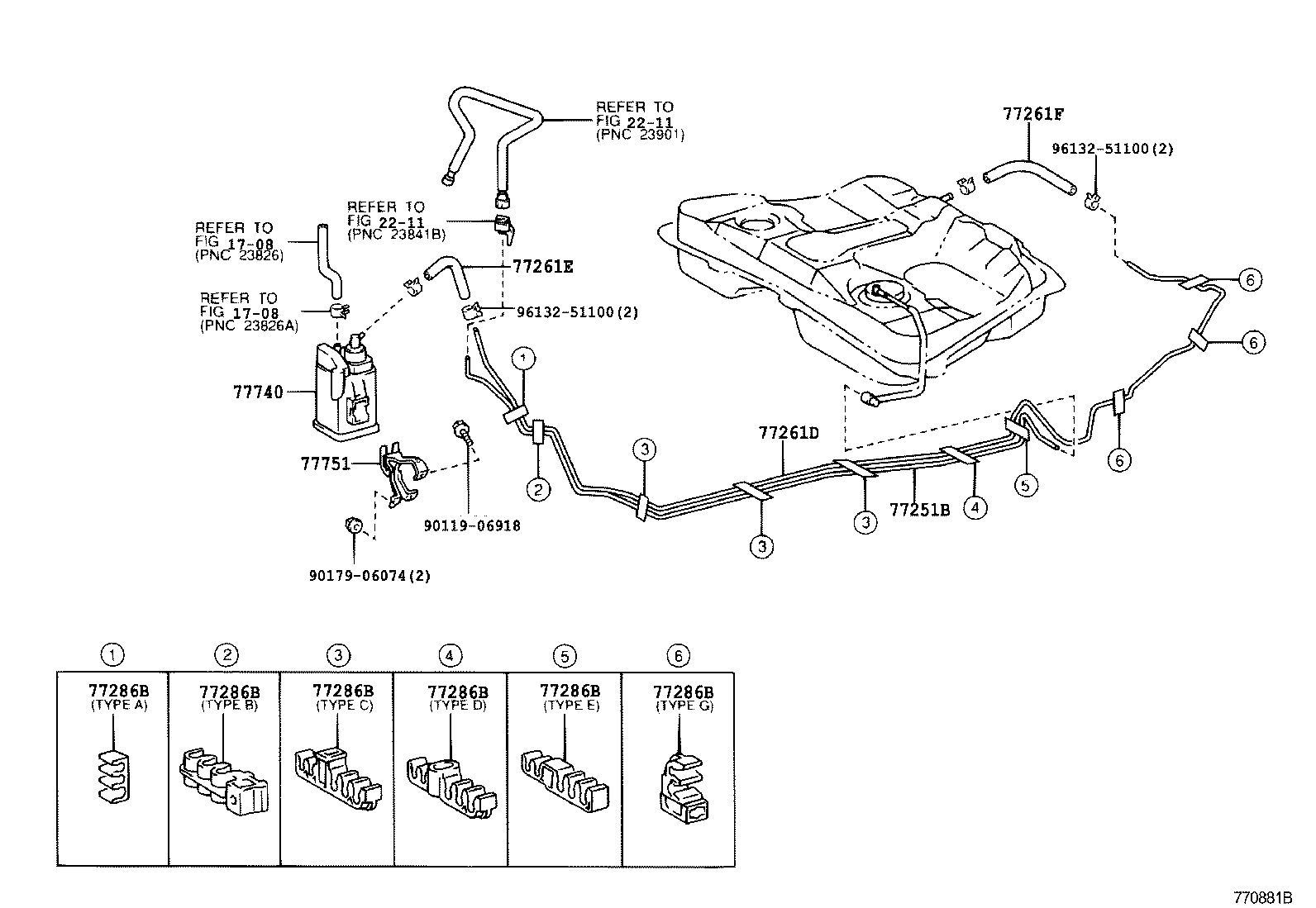

FUEL TANK TUBE

ﾌｭｰｴﾙ ﾁｭｰﾌﾞ ILLUST NO. 2 OF 2(0104- )ZZE129

WILL VS | FUEL TANK TUBE ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 77251B - TUBE, FUEL MAIN 77261D - TUBE, FUEL TANK TO CANISTER 77261E - HOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE) 77261F - HOSE, FUEL, NO.2 (FOR FUEL TANK TO CANISTER TUBE) 77286B - CLAMP, FUEL TUBE W/GROMMET, NO.2 77286B - CLAMP, FUEL TUBE W/GROMMET, NO.2 77286B - CLAMP, FUEL TUBE W/GROMMET, NO.2 77286B - CLAMP, FUEL TUBE W/GROMMET, NO.2 77286B - CLAMP, FUEL TUBE W/GROMMET, NO.2 77286B - CLAMP, FUEL TUBE W/GROMMET, NO.2 77740 - CANISTER ASSY, CHARCOAL 77751 - BRACKET, CHARCOAL CANISTER BASE ** Std Part ** Std Part ** Std Part ** Std Part
