TOYOTA ALTEZZA ALTEZZA GITA JCE15W-AWPVF / POWERTRAIN-CHASSIS / BRAKE TUBE CLAMP

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

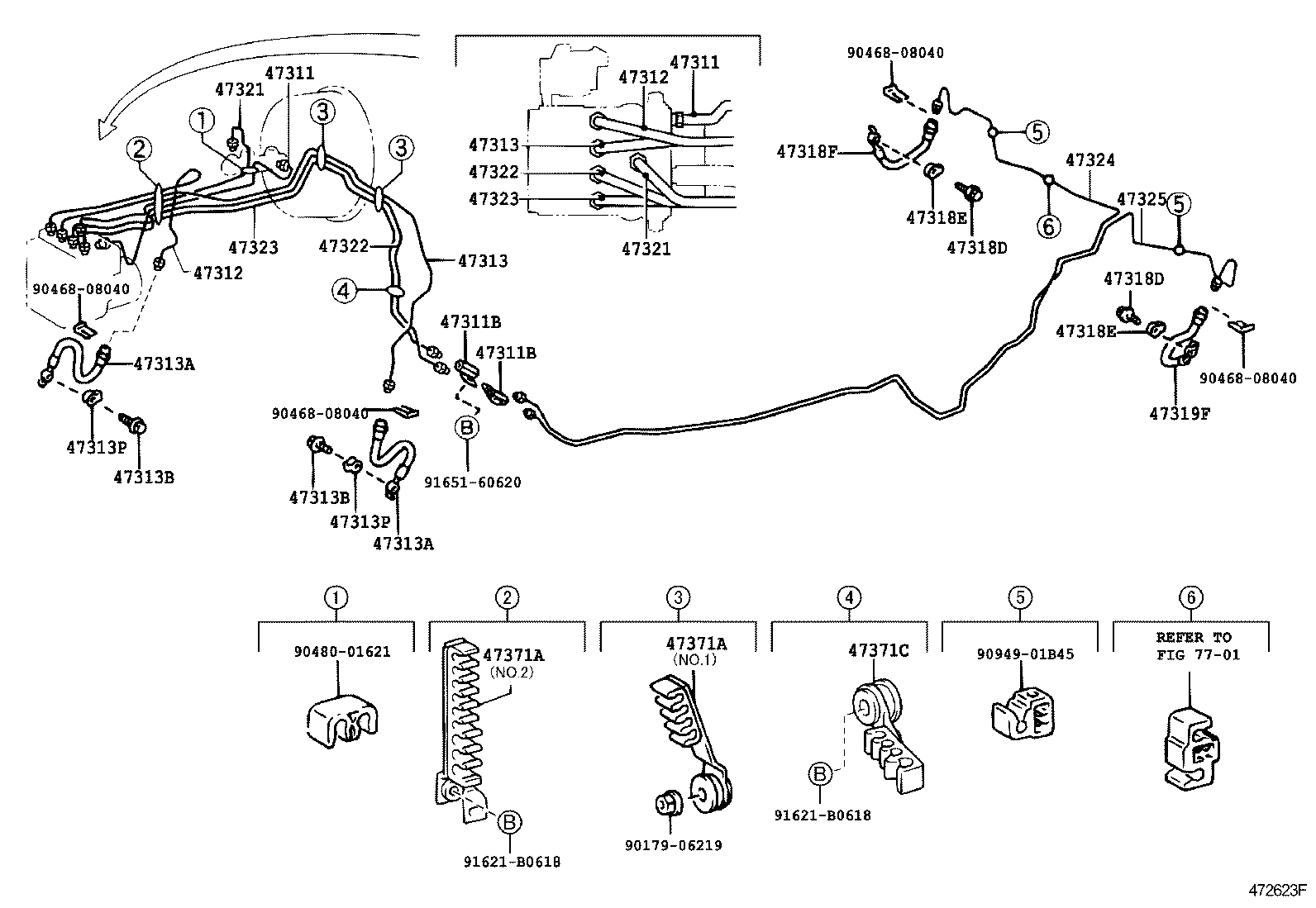

BRAKE TUBE CLAMP

ｱﾘ(VSC) ILLUST NO. 1 OF 3(0106- )JCE1#

ALTEZZA ALTEZZA GITA | BRAKE TUBE CLAMP 47311 - TUBE, FRONT BRAKE, NO.1 47311 - TUBE, FRONT BRAKE, NO.1 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) 47312 - TUBE, FRONT BRAKE, NO.2 47312 - TUBE, FRONT BRAKE, NO.2 47313 - TUBE, FRONT BRAKE, NO.3 47313 - TUBE, FRONT BRAKE, NO.3 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) 47318E - GASKET(FOR REAR FLEXIBLE HOSE) 47318E - GASKET(FOR REAR FLEXIBLE HOSE) 47318F - HOSE, FLEXIBLE(FOR REAR RH) 47319F - HOSE, FLEXIBLE(FOR REAR LH) 47321 - TUBE, REAR BRAKE, NO.1 47321 - TUBE, REAR BRAKE, NO.1 47322 - TUBE, REAR BRAKE, NO.2 47322 - TUBE, REAR BRAKE, NO.2 47323 - TUBE, REAR BRAKE, NO.3 47323 - TUBE, REAR BRAKE, NO.3 47324 - TUBE, REAR BRAKE, NO.4 47325 - TUBE, REAR BRAKE, NO.5 47371A - CLAMP, BRAKE TUBE, NO.1 47371A - CLAMP, BRAKE TUBE, NO.1 47371C - CLAMP, BRAKE TUBE, NO.7 ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
