TOYOTA VISTA VISTA ARDEO AZV55G-BWSSH / BODY / FUEL TANK TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

FUEL TANK TUBE

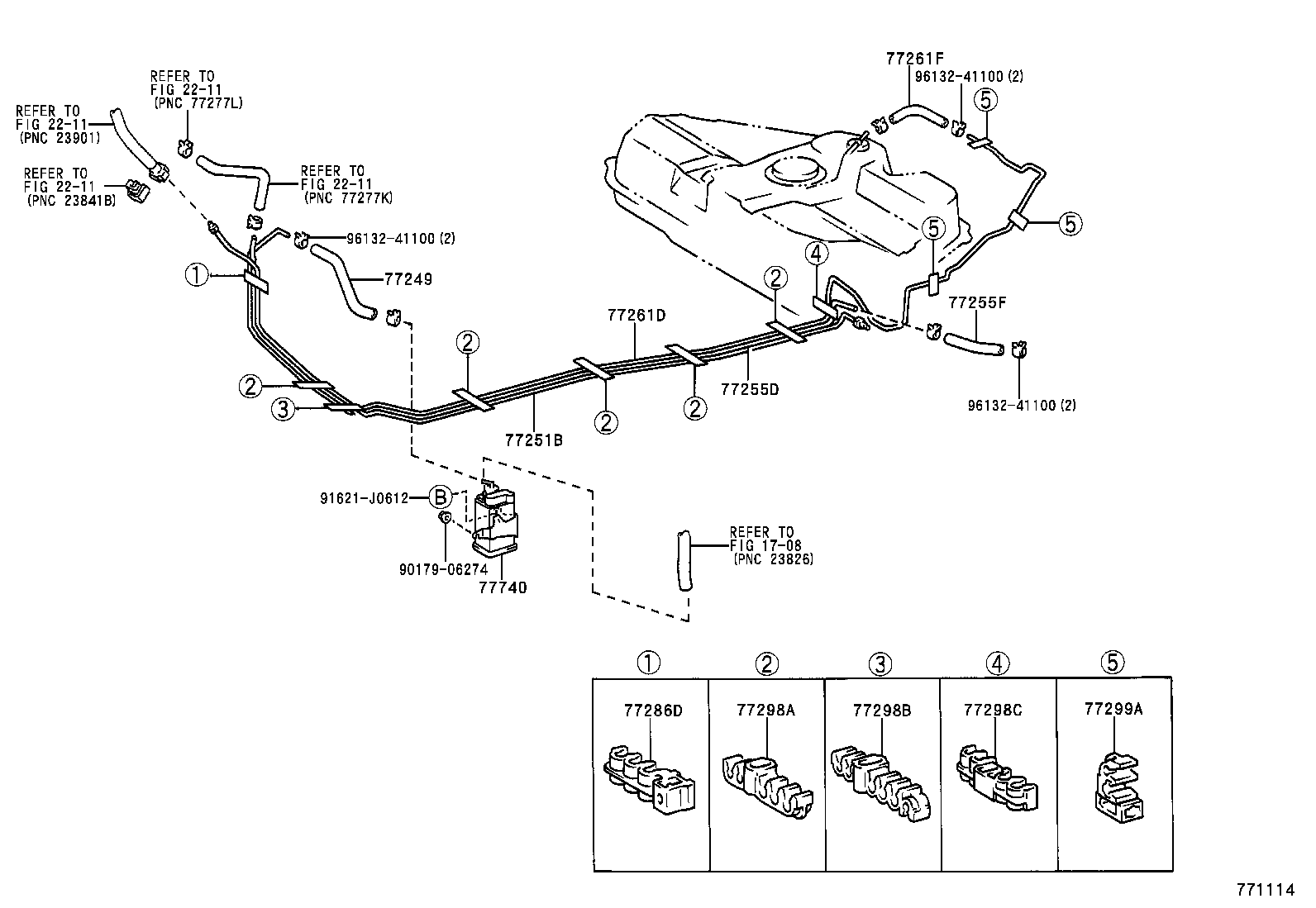

ILLUST NO. 2 OF 2(0204- )AZV55

VISTA VISTA ARDEO | FUEL TANK TUBE ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 77249 - HOSE, FUEL EMISSION 77251B - TUBE, FUEL MAIN 77255D - TUBE, FUEL RETURN 77255F - HOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE) 77261D - TUBE, FUEL TANK TO CANISTER 77261F - HOSE, FUEL, NO.2 (FOR FUEL TANK TO CANISTER TUBE) 77286D - CLAMP, FUEL TUBE, NO.2 77298A - CLAMP, FUEL TUBE, NO.4 77298B - CLAMP, FUEL TUBE, NO.4 77298C - CLAMP, FUEL TUBE, NO.4 77299A - CLAMP, FUEL TUBE, NO.5 77740 - CANISTER ASSY, CHARCOAL ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
