TOYOTA DYNA TOYOACE BZU300-TQMMM3 / BODY / FUEL TANK TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

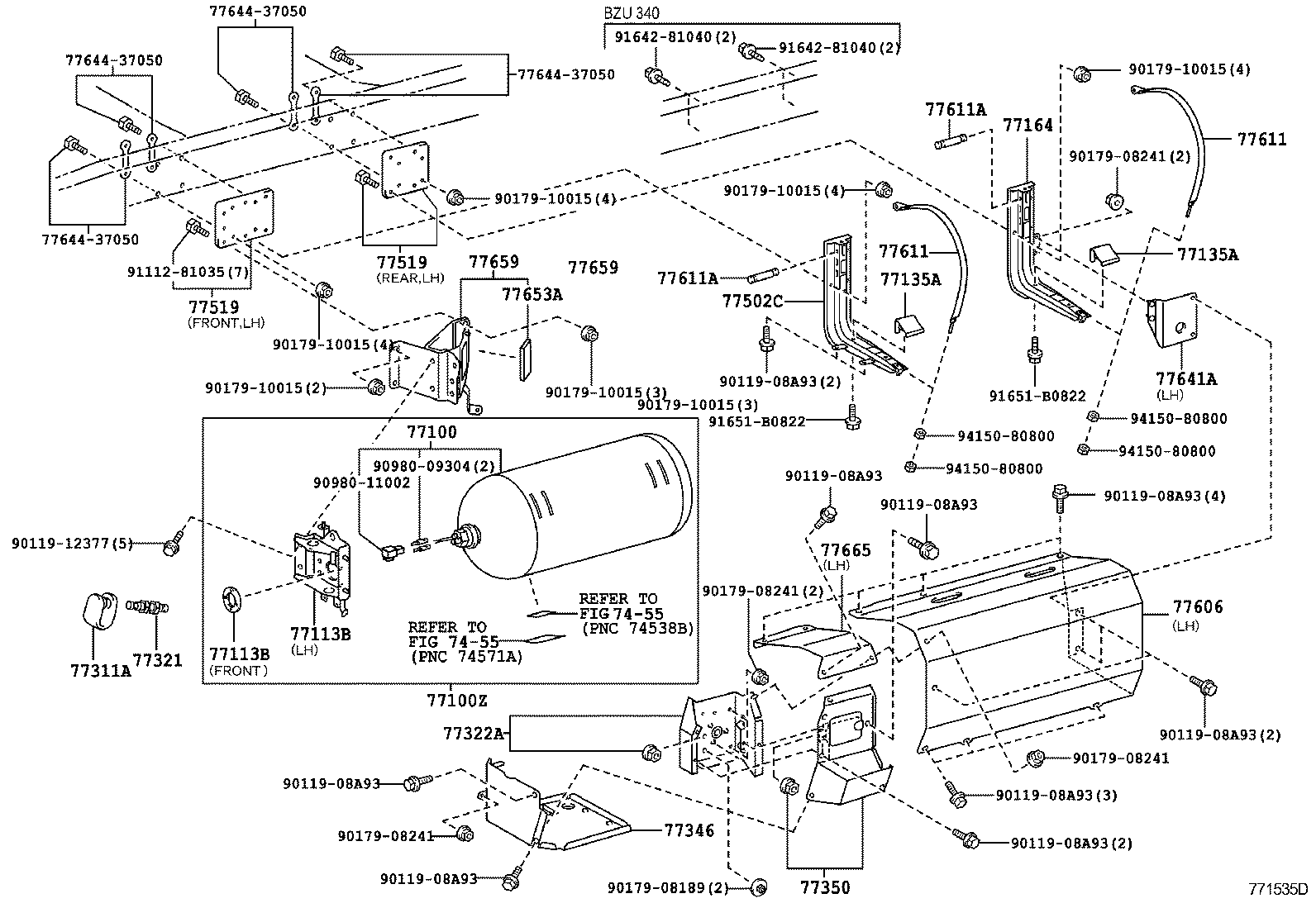

FUEL TANK TUBE

ﾌｭｰｴﾙ ﾀﾝｸ(LH) ILLUST NO. 1 OF 2(0406- )CNG

DYNA TOYOACE | FUEL TANK TUBE ** Refer Fig ** Refer Fig 77100 - TANK ASSY, FUEL 77100Z - TANK SUB-ASSY, FUEL SUB 77113B - PLATE, FUEL TANK SIDE 77113B - PLATE, FUEL TANK SIDE 77135A - PROTECTOR, FUEL TANK SIDE 77135A - PROTECTOR, FUEL TANK SIDE 77164 - BRACKET, FUEL TANK, REAR LH 77311A - CAP, FUEL INLET COUPLER 77321 - COUPLER, FUEL INLET 77322A - RETAINER, FUEL TANK CAP VALVE SPRING 77346 - COVER, FUEL LID LOCK OPENER BASE, LH 77350 - LID ASSY, FUEL FILLER OPENING 77502C - BRACKET SUB-ASSY, FUEL 77519 - SPACER, FUEL TANK BRACKET 77519 - SPACER, FUEL TANK BRACKET 77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1 77611 - BAND, FUEL TANK 77611 - BAND, FUEL TANK 77611A - PIN (FOR FUEL TANK BAND) 77611A - PIN (FOR FUEL TANK BAND) 77641A - PROTECTOR, FUEL TANK, NO.1 ** Std Part ** Std Part ** Std Part ** Std Part 77653A - CUSHION, FUEL TANK, NO.3 77659 - PROTECTOR, FUEL TANK EDGE, NO.2 77659 - PROTECTOR, FUEL TANK EDGE, NO.2 77665 - COVER, FUEL TANK BAND, RH ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
