TOYOTA DYNA TOYOACE XZU302A-TYMMS3 / POWERTRAIN-CHASSIS / PARKING BRAKE CABLE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

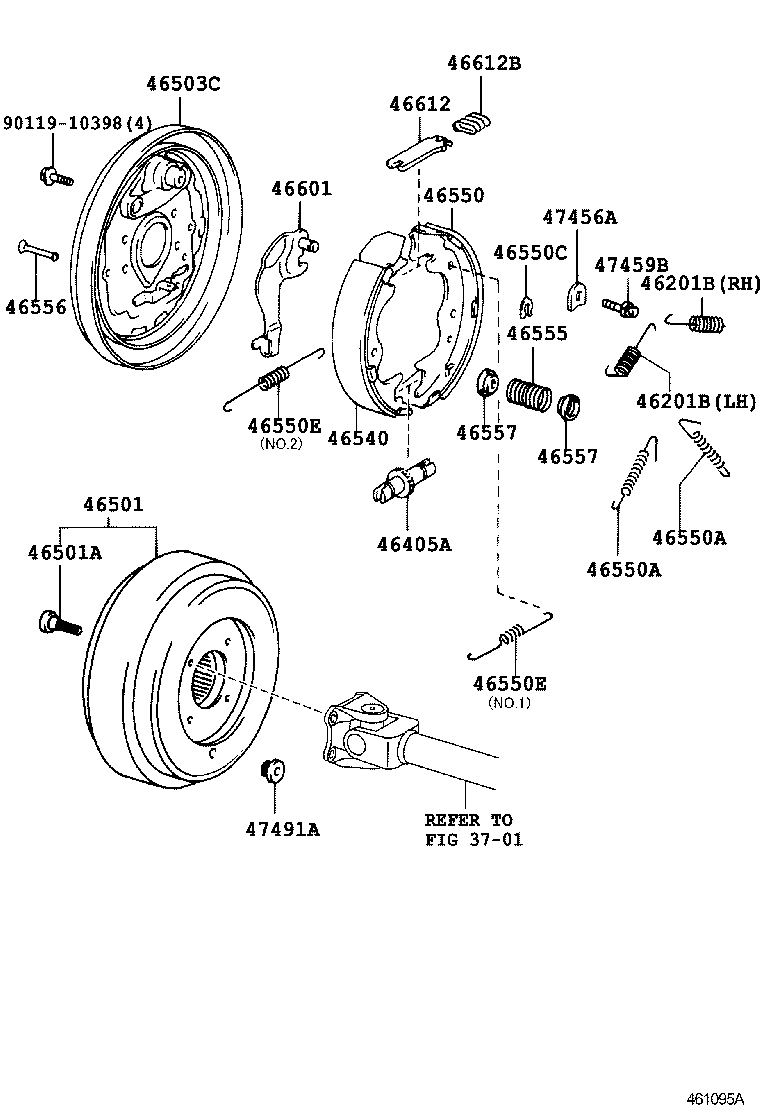

PARKING BRAKE CABLE

ILLUST NO. 2 OF 2(9905-0406)BZU300,XZU330,340,350..DM6,T3..20T,35

DYNA TOYOACE | PARKING BRAKE CABLE ** Refer Fig 46201B - SPRING, TENSION 46201B - SPRING, TENSION 46405A - SCREW SET, SHOE ADJUSTING, RH 46501 - DRUM SUB-ASSY, PARKING BRAKE 46501A - BOLT, SERRATION(FOR PARKING BRAKE DRUM) 46503C - PLATE SUB-ASSY, PARKING BRAKE 46540 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.1 46550 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.2 46550A - SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN) 46550A - SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN) 46550C - WASHER, TYPE C(FOR PARKING BRAKE SHOE) 46550E - SPRING, TENSION, NO.2(FOR PARKING BRAKE SHOE RETURN) 46550E - SPRING, TENSION, NO.2(FOR PARKING BRAKE SHOE RETURN) 46555 - SPRING, BRAKE SHOE HOLD DOWN 46556 - PIN, SHOE HOLD DOWN SPRING 46557 - CUP, BRAKE SHOE HOLD DOWN 46557 - CUP, BRAKE SHOE HOLD DOWN 46601 - LEVER SUB-ASSY, PARKING BRAKE SHOE 46612 - STRUT, PARKING BRAKE SHOE LEVER 46612B - SPRING, COMPRESSION(FOR PARKING BRAKE SHOE STRUT) 47456A - PLATE, SHOE GUIDE(FOR PARKING BRAKE) 47459B - BOLT, SHOE GUIDE PLATE SET(FOR PARKING BRAKE) 47491A - PLUG, SHOE ADJUSTING HOLE(FOR PARKING BRAKE SHOE) ** Std Part
