TOYOTA DYNA TOYOACE XZU304-PSMJS / ELECTRICAL / HEATING AIR CONDITIONING COOLER PIPING

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

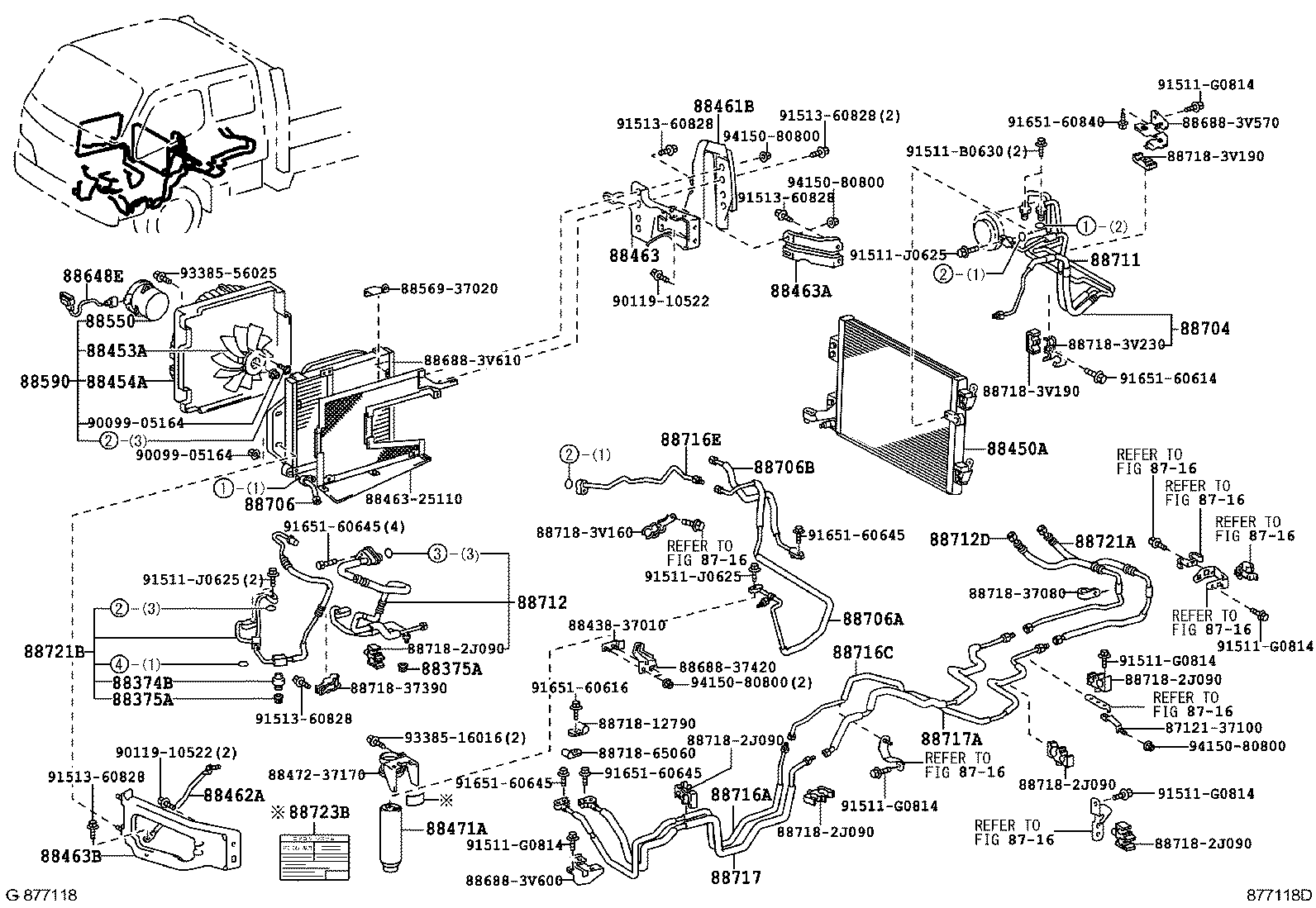

HEATING AIR CONDITIONING COOLER PIPING

ｱﾘ(ﾘﾔ ｸｰﾗ & ﾘﾔ ﾋｰﾀ) ILLUST NO. 1 OF 2(0406- )175T

DYNA TOYOACE | HEATING AIR CONDITIONING COOLER PIPING ** Std Part ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 88374B - VALVE, SERVICE, NO.1 88375A - CAP, SERVICE VALVE (FOR COOLER PIPE) 88375A - CAP, SERVICE VALVE (FOR COOLER PIPE) ** Std Part 88450A - SUB CONDENSER ASSY 88453A - FAN, COOLING 88454A - SHROUD, FAN 88461B - COVER, COOLER CONDENSER 88462A - HOLDER, CONDENSER 88463 - BRACKET, COOLER CONDENSER, NO.1 ** Std Part 88463A - BRACKET, COOLER CONDENSER, NO.2 88463B - BRACKET, COOLER CONDENSER, NO.3 88471A - TANK, RECEIVER ** Std Part 88550 - MOTOR ASSY, BLOWER (FOR CONDENSER) ** Std Part 88590 - BLOWER ASSY, W/SHROUD 88648E - WIRING, COOLER ** Std Part ** Std Part ** Std Part ** Std Part 88704 - HOSE SUB-ASSY, SUCTION 88706 - PIPE SUB-ASSY, LIQUID 88706A - TUBE SUB-ASSY, LIQUID, A 88706B - TUBE SUB-ASSY, LIQUID, B 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 88712D - HOSE, SUCTION 88716A - PIPE, COOLER REFRIGERANT LIQUID, A 88716C - PIPE, COOLER REFRIGERANT LIQUID, C 88716E - PIPE, COOLER REFRIGERANT LIQUID, E 88717 - PIPE, COOLER REFRIGERANT SUCTION, NO.1 88717A - PIPE, COOLER REFRIGERANT SUCTION, A ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part 88721A - HOSE, LIQUID, A 88721B - HOSE, LIQUID, B 88723B - LABEL, COOLER SERVICE CAUTION ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
