TOYOTA DYNA TOYOACE XZU308V-RRMMS / ELECTRICAL / HEATING AIR CONDITIONING WATER PIPING

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

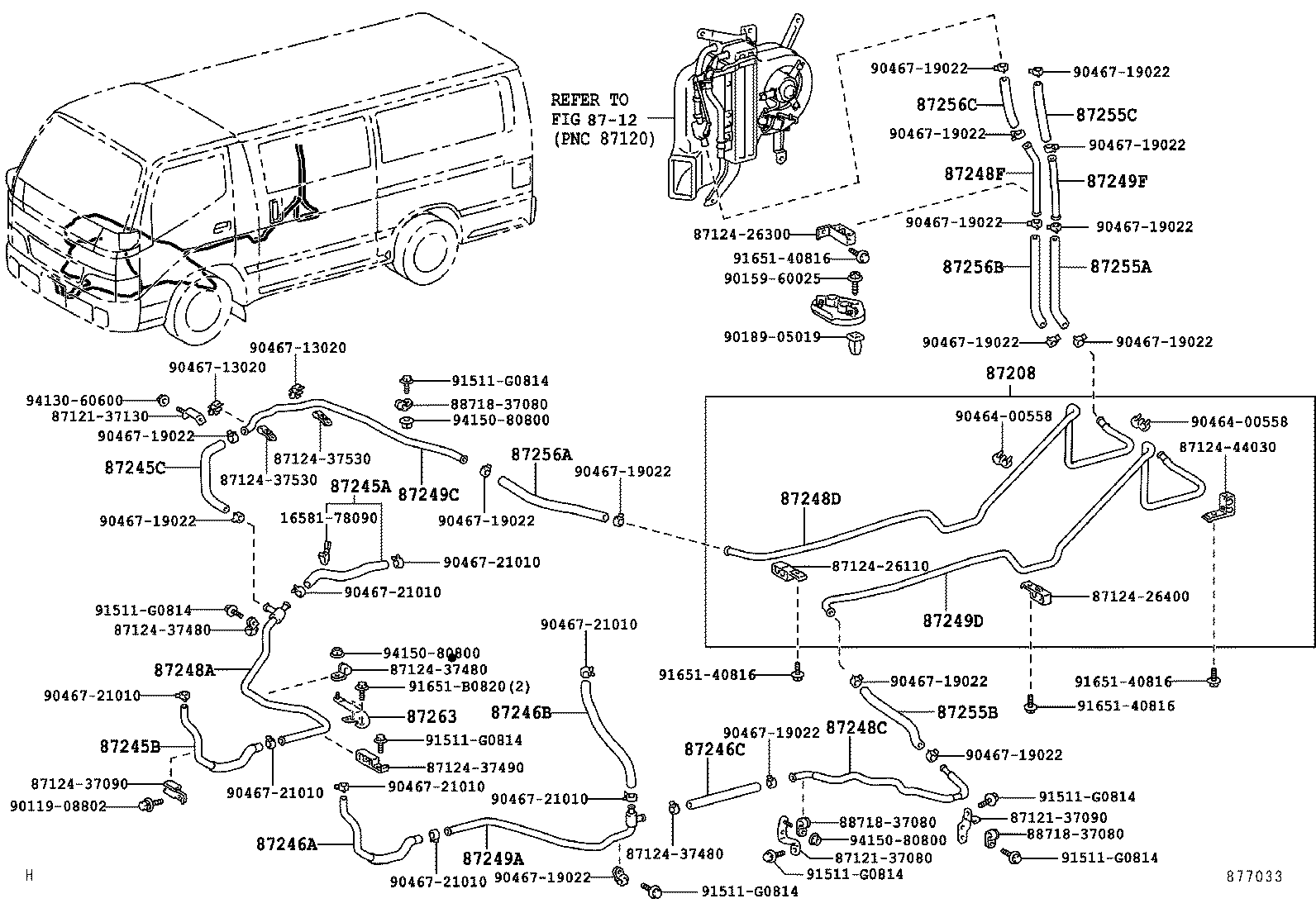

HEATING AIR CONDITIONING WATER PIPING

ｱﾘ(ﾘﾔ ﾋｰﾀ) (0406- )06S

DYNA TOYOACE | HEATING AIR CONDITIONING WATER PIPING ** Std Part ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part 87208 - PIPE SUB-ASSY, HEATER WATER 87245A - HOSE, HEATER WATER, INLET A 87245B - HOSE, HEATER WATER, INLET B 87245C - HOSE, HEATER WATER ,INLET C 87246A - HOSE, HEATER WATER, OUTLET A 87246B - HOSE, HEATER WATER, OUTLET B 87246C - HOSE, HEATER WATER, OUTLET C 87248A - PIPE, HEATER WATER INLET, A 87248C - PIPE, HEATER WATER INLET, C 87248D - PIPE, HEATER WATER INLET, D 87248F - PIPE, HEATER WATER INLET, F 87249A - PIPE, HEATER WATER OUTLET, A 87249C - PIPE, HEATER WATER OUTLET, C 87249D - PIPE, HEATER WATER OUTLET, D 87249F - PIPE, HEATER WATER OUTLET, F 87255A - HOSE, REAR HEATER WATER INLET, A(FROM ENGINE) 87255B - HOSE, REAR HEATER WATER INLET, B 87255C - HOSE, REAR HEATER WATER INLET, C 87256A - HOSE, REAR HEATER WATER OUTLET, A (FROM HEATER UNIT) 87256B - HOSE, REAR HEATER WATER OUTLET, B 87256C - HOSE, REAR HEATER WATER OUTLET, C 87263 - BRACKET, HEATER WATER PIPE, NO.1 ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
