TOYOTA DYNA TOYOACE XZU371-PKMQS4 / ELECTRICAL / HEATING AIR CONDITIONING CONTROL AIR DUCT

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

HEATING AIR CONDITIONING CONTROL AIR DUCT

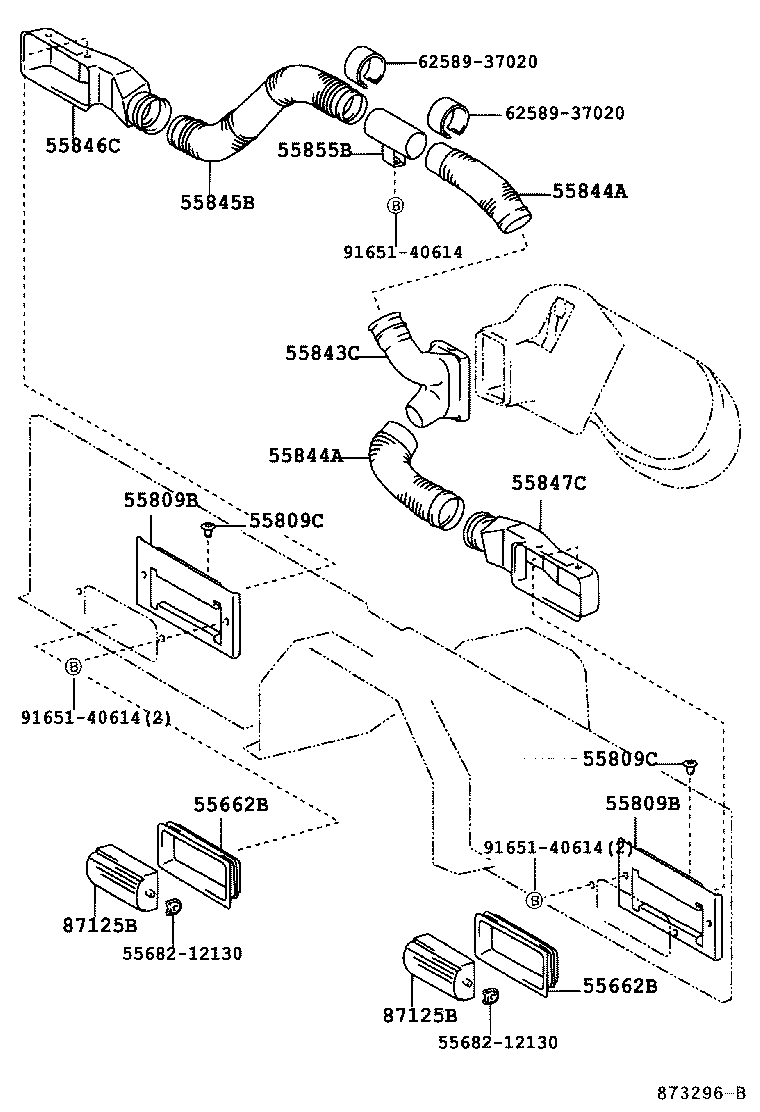

ﾘﾔ ﾀﾞｸﾄ ILLUST NO. 4 OF 5(9908-0406)XZU371 ; (0406- )XZU378..IV4

DYNA TOYOACE | HEATING AIR CONDITIONING CONTROL AIR DUCT 55662B - BEZEL, REAR HEATER 55662B - BEZEL, REAR HEATER ** Std Part ** Std Part 55809B - BRACKET, AIR DUCT RETAINER 55809B - BRACKET, AIR DUCT RETAINER 55809C - CLIP, AIR DUCT RETAINER BRACKET 55809C - CLIP, AIR DUCT RETAINER BRACKET 55843C - DUCT, REAR HEATER TO REGISTER, NO.1 55844A - DUCT, REAR HEATER TO REGISTER, NO.2 55844A - DUCT, REAR HEATER TO REGISTER, NO.2 55845B - DUCT, REAR HEATER TO REGISTER, NO.3 55846C - DUCT, REAR HEATER TO REGISTER, NO.4 55847C - DUCT, REAR HEATER TO REGISTER, NO.5 55855B - BRACKET, AIR DUCT REGISTER MOUNTING ** Std Part ** Std Part 87125B - GRILLE, HEATER AIR OUTLET 87125B - GRILLE, HEATER AIR OUTLET ** Std Part ** Std Part ** Std Part
