TOYOTA DYNA TOYOACE XZU388-PKMMW3 / POWERTRAIN-CHASSIS / BRAKE BOOSTER VACUUM TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

BRAKE BOOSTER VACUUM TUBE

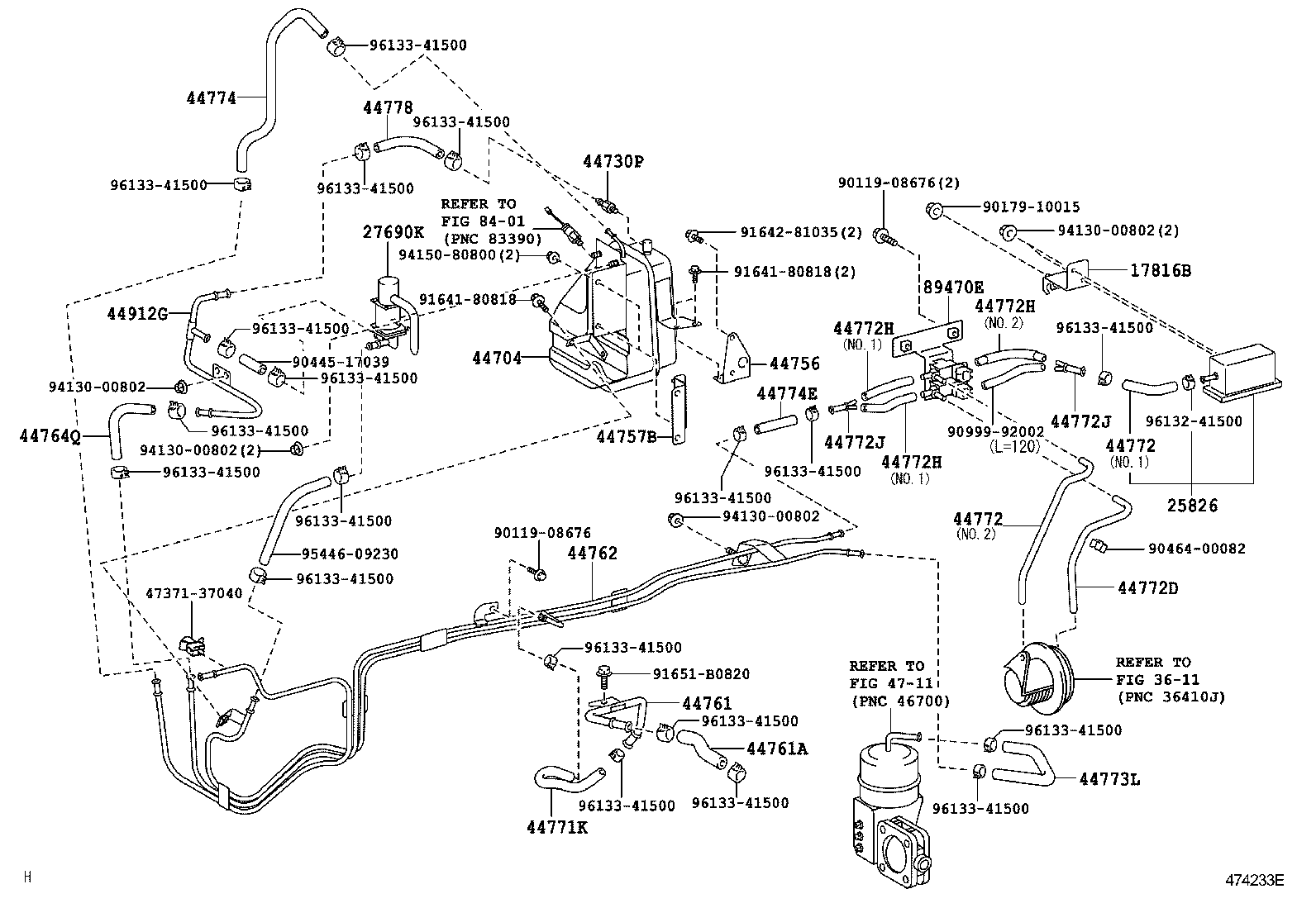

ILLUST NO. 2 OF 2(0406- )XZU378,388..T3..20T

DYNA TOYOACE | BRAKE BOOSTER VACUUM TUBE 17816B - BRACKET, AIR FILTER, NO.1 25826 - FILTER, NO.1 27690K - SOLENOID ASSY, W/BRACKET(FOR EXHAUST BRAKE) ** Refer Fig 44704 - RESERVOIR SUB-ASSY, VACUUM 44730P - VALVE ASSY, VACUUM CHECK, NO.1 44756 - BRACKET, VACUUM RESERVOIR 44757B - BRACKET, VACUUM TANK CLAMP, NO.2 44761 - TUBE, INTAKE MANIFOLD OR VACUUM PUMP TO CONNECTOR 44761A - HOSE, VACUUM PUMP 44762 - TUBE, BOOSTER VACUUM 44764Q - HOSE(FOR CONNECTOR TO VACUUM RESERVOIR TUBE) 44771K - HOSE, VACUUM TUBE TO VACUUM PUMP 44772 - HOSE, CHECK VALVE TO CONNECTOR TUBE 44772 - HOSE, CHECK VALVE TO CONNECTOR TUBE 44772D - HOSE, CHECK VALVE TO ACTUATOR 44772H - HOSE, CHECK VALVE TO 3 WAY 44772H - HOSE, CHECK VALVE TO 3 WAY 44772H - HOSE, CHECK VALVE TO 3 WAY 44772J - WAY, 3(FOR VACUUM CHECK VALVE TO 3 WAY HOSE) 44772J - WAY, 3(FOR VACUUM CHECK VALVE TO 3 WAY HOSE) 44773L - HOSE, SOLENOID TO EXHAUST RETARDER 44774 - HOSE, UNION TO CONNECTOR TUBE 44774E - HOSE, UNION TO CONNECTOR TUBE 44778 - HOSE, CONNECTOR TO CHECK VALVE 44912G - TUBE, 3 WAY TO MAGNETIC VALVE ** Refer Fig ** Std Part ** Refer Fig 89470E - VALVE ASSY, VACUUM SWITCHING W/BRACKET, NO.1 ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
