TOYOTA GAIA ACM15G-BRSEH / BODY / REAR SEAT SEAT TRACK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

REAR SEAT SEAT TRACK

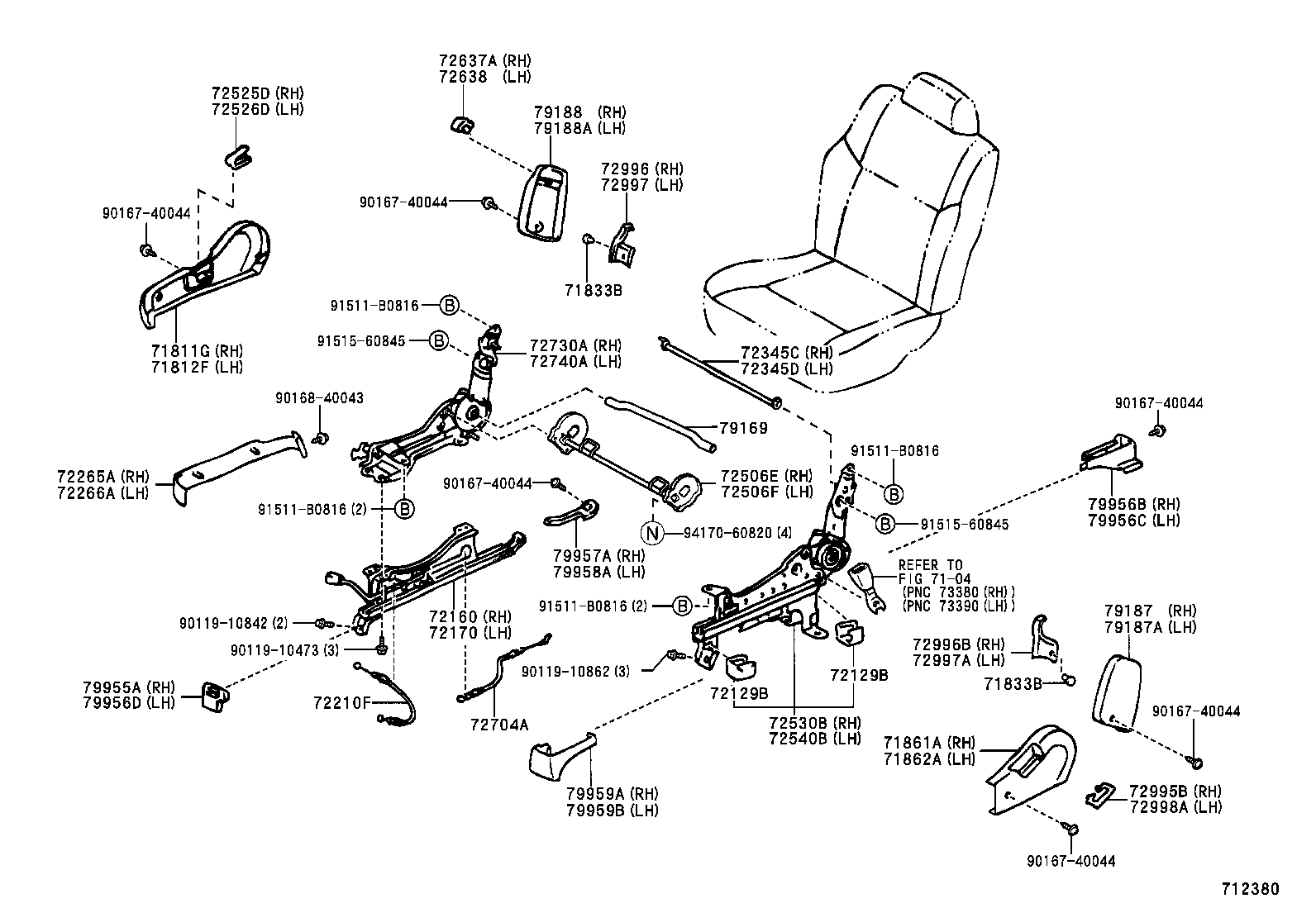

ﾘﾔ NO.1 ｼ-ﾄ ILLUST NO. 2 OF 2(0208- )07S

GAIA | REAR SEAT SEAT TRACK ** Refer Fig 71811G - SHIELD, REAR SEAT CUSHION, RH 71812F - SHIELD, REAR SEAT CUSHION, LH 71833B - CLIP (FOR REAR SEAT RECLINING COVER) 71833B - CLIP (FOR REAR SEAT RECLINING COVER) 71861A - SHIELD, REAR SEAT CUSHION, INNER RH 71862A - SHIELD, REAR SEAT CUSHION, INNER LH 72129B - PROTECTOR, SEAT TRACK LOWER RAIL 72129B - PROTECTOR, SEAT TRACK LOWER RAIL 72160 - TRACK ASSY, REAR SEAT, OUTER RH 72170 - TRACK ASSY, REAR SEAT, OUTER LH 72210F - CABLE ASSY, SEAT TRACK CONTROL 72265A - COVER, SEAT TRACK UPPER RAIL, RH 72266A - COVER, SEAT TRACK UPPER RAIL, LH 72345C - PIPE,RECLINING CONNECTING, RH 72345D - PIPE, RECLINING CONNECTING, LH 72506E - ROD SUB-ASSY, RECLINING CONNECTING, RH 72506F - ROD SUB-ASSY, RECLINING CONNECTING, LH 72525D - HANDLE, RECLINING ADJUSTER RELEASE, NO.2 RH 72526D - HANDLE, RECLINING ADJUSTER RELEASE, NO.3 LH 72530B - ADJUSTER ASSY, RECLINING SEAT, INNER RH 72540B - ADJUSTER ASSY, RECLINING SEAT, INNER LH 72637A - HANDLE, REAR SEAT LOCK 72638 - HANDLE, REAR SEAT LOCK, LH 72704A - CABLE, REAR SEAT RECLINING CONTROL 72730A - ADJUSTER ASSY, REAR SEAT RECLINING, RH 72740A - ADJUSTER ASSY, REAR SEAT RECLINING, LH 72995B - COVER, NO.1 SEAT CUSHION, RH 72996 - COVER, REAR SEAT BACK, RH 72996B - COVER, REAR SEAT BACK, INNER RH 72997 - COVER, REAR SEAT BACK, LH 72997A - COVER, REAR SEAT BACK, INNER LH 72998A - COVER, NO.1 SEAT CUSHION, LH 79169 - ROD, REAR SEAT HINGE CONNECTOR 79187 - COVER, NO.1 SEAT INNER BRACKET 79187A - COVER, NO.1 SEAT INNER BRACKET, LH 79188 - COVER, NO.1 SEAT OUTER BRACKET 79188A - COVER, NO.1 SEAT OUTER BRACKET, LH 79955A - COVER, REAR SEAT FRONT BRACKET, RH 79956B - COVER, REAR SEAT LEG SIDE, RH 79956C - COVER, REAR SEAT LEG SIDE, LH 79956D - COVER, REAR SEAT FRONT BRACKET, LH 79957A - COVER, REAR SEAT REAR BRACKET, RH 79958A - COVER, REAR SEAT REAR BRACKET, LH 79959A - COVER, REAR SEAT LEG, RH 79959B - COVER, REAR SEAT LEG, LH ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
