TOYOTA GAIA CXM10G-BPSET / ELECTRICAL / SWITCH RELAY COMPUTER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

SWITCH RELAY COMPUTER

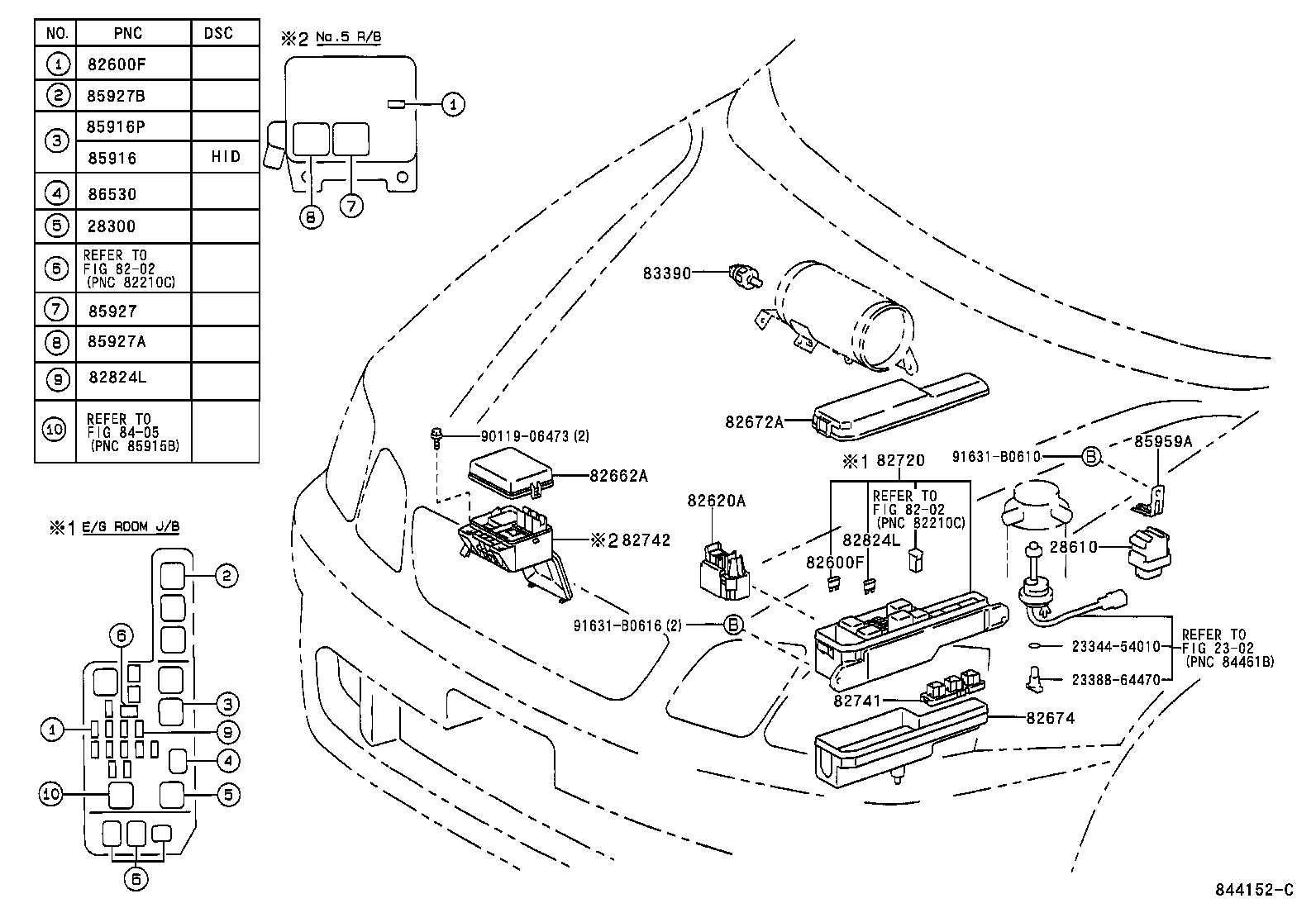

ｴﾝｼﾞﾝﾙ-ﾑ ILLUST NO. 2 OF 6(0104- )CXM10

GAIA | SWITCH RELAY COMPUTER ** Refer Fig ** Std Part ** Std Part 28300 - RELAY ASSY, STARTER 28610 - RELAY ASSY, GLOW PLUG ** Refer Fig ** Refer Fig 82600F - FUSE, FUSE BLOCK 82600F - FUSE, FUSE BLOCK 82620A - BLOCK ASSY, FUSIBLE LINK 82662A - COVER, RELAY BLOCK, UPPER, NO.1 82672A - COVER, JUNCTION BLOCK 82674 - COVER, JUNCTION BLOCK LOWER 82720 - BLOCK ASSY, ENGINE ROOM JUNCTION 82741 - BLOCK, ENGINE ROOM RELAY 82742 - BLOCK, ENGINE ROOM RELAY, NO.2 82824L - PIN, SHORT 82824L - PIN, SHORT 83390 - SWITCH ASSY, VACUUM WARNING ** Refer Fig 85916 - RELAY, LIGHT CONTROL 85916P - RELAY, HEADLAMP 85927 - RELAY, COOLING FAN 85927A - RELAY, COOLING FAN, NO.2 85927B - RELAY, COOLING FAN, NO.3 85959A - HOLDER, RELAY 86530 - RELAY ASSY, HORN ** Std Part ** Std Part ** Std Part
