TOYOTA GAIA CXM10G-BPSET / POWERTRAIN-CHASSIS / VALVE BODY OIL STRAINER ATM

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

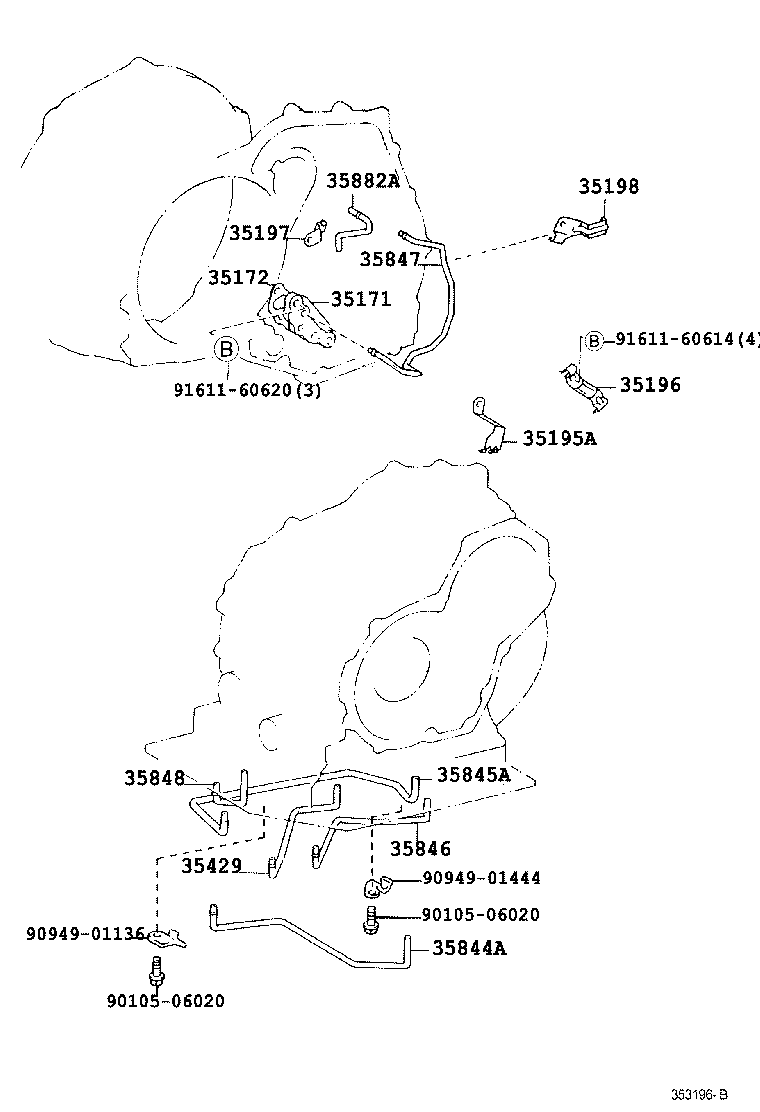

VALVE BODY OIL STRAINER ATM

A241E,A243F ILLUST NO. 2 OF 2(0104- )CXM10,SXM15

GAIA | VALVE BODY OIL STRAINER ATM 35171 - COVER, TRANSAXLE HOUSING 35172 - GASKET, TRANSAXLE HOUSING COVER 35195A - CLAMP, TRANSAXLE APPLY TUBE, NO.1 35196 - CLAMP, TRANSAXLE APPLY TUBE, NO.2 35197 - CLAMP, TRANSAXLE APPLY TUBE, NO.3 35198 - CLAMP, TRANSAXLE APPLY TUBE, NO.4 35429 - TUBE, LINE PRESSURE 35844A - TUBE, ACCUMULATOR BACK PRESSURE, NO.1 35845A - TUBE, DIRECT CLUTCH ACCUMULATOR 35846 - TUBE, BRAKE ACCUMULATOR 35847 - TUBE, TRANSMISSION LUBE APPLY 35848 - TUBE, FORWARD CLUTCH ACCUMULATOR 35882A - TUBE, DIFFERENTIAL GEAR LUBE APPLY ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
