TOYOTA HIACE REGIUSACE TRH124B-ZRPDK / ELECTRICAL / HEATING AIR CONDITIONING COOLER UNIT

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

HEATING AIR CONDITIONING COOLER UNIT

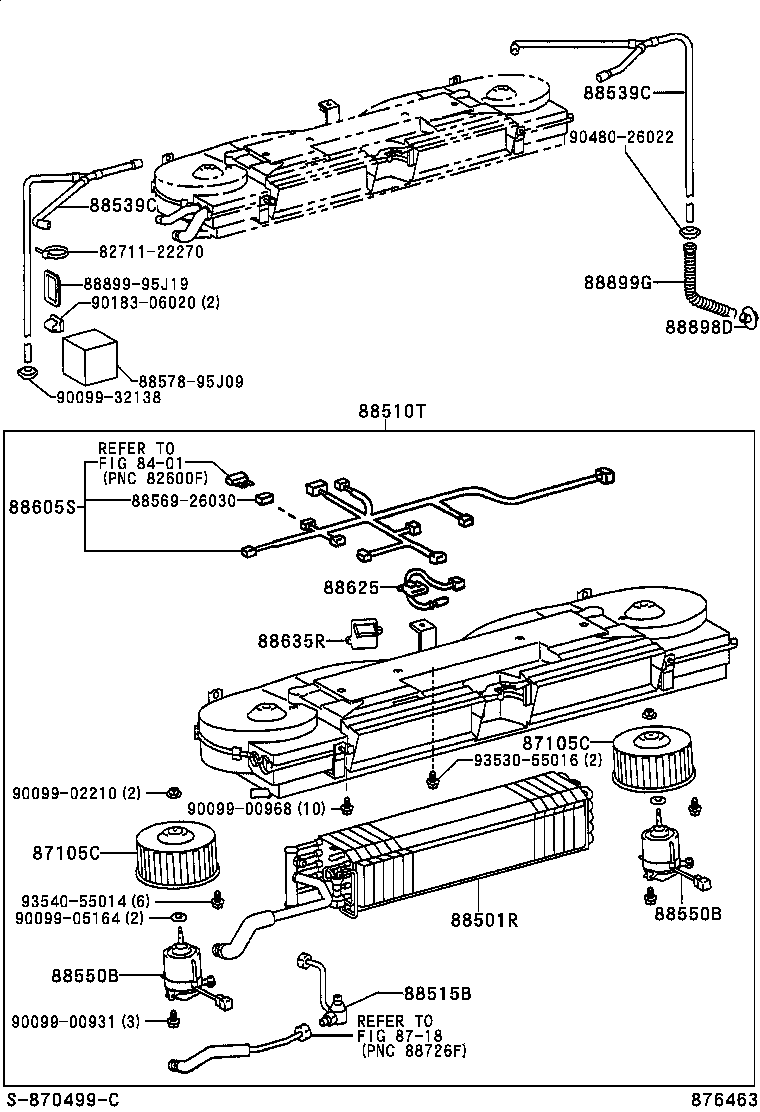

REAR UNIT ILLUST NO. 2 OF 5(0308- )TRH12# ; (0308- )TRH102,112..SGLE

HIACE REGIUSACE | HEATING AIR CONDITIONING COOLER UNIT ** Std Part ** Refer Fig 87105C - FAN SUB-ASSY, BLOWER, REAR 87105C - FAN SUB-ASSY, BLOWER, REAR ** Refer Fig 88501R - EVAPORATOR SUB-ASSY (REAR) 88510T - UNIT ASSY, COOLING (REAR) 88515B - VALVE, REAR COOLING UNIT EXPANSION 88539C - HOSE, COOLER UNIT DRAIN, NO.2 88539C - HOSE, COOLER UNIT DRAIN, NO.2 88550B - MOTOR ASSY, BLOWER 88550B - MOTOR ASSY, BLOWER ** Std Part ** Std Part 88605S - HARNESS SUB-ASSY, WIRING AIR CONDITIONER 88625 - THERMISTOR, COOLER, NO.1 88635R - RESISTOR, BLOWER 88898D - GROMMET ** Std Part 88899G - MOULDING, PROTECTOR ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
