TOYOTA HIACE REGIUSACE TRH124B-ZRPDK / ELECTRICAL / HEATING AIR CONDITIONING WATER PIPING

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

HEATING AIR CONDITIONING WATER PIPING

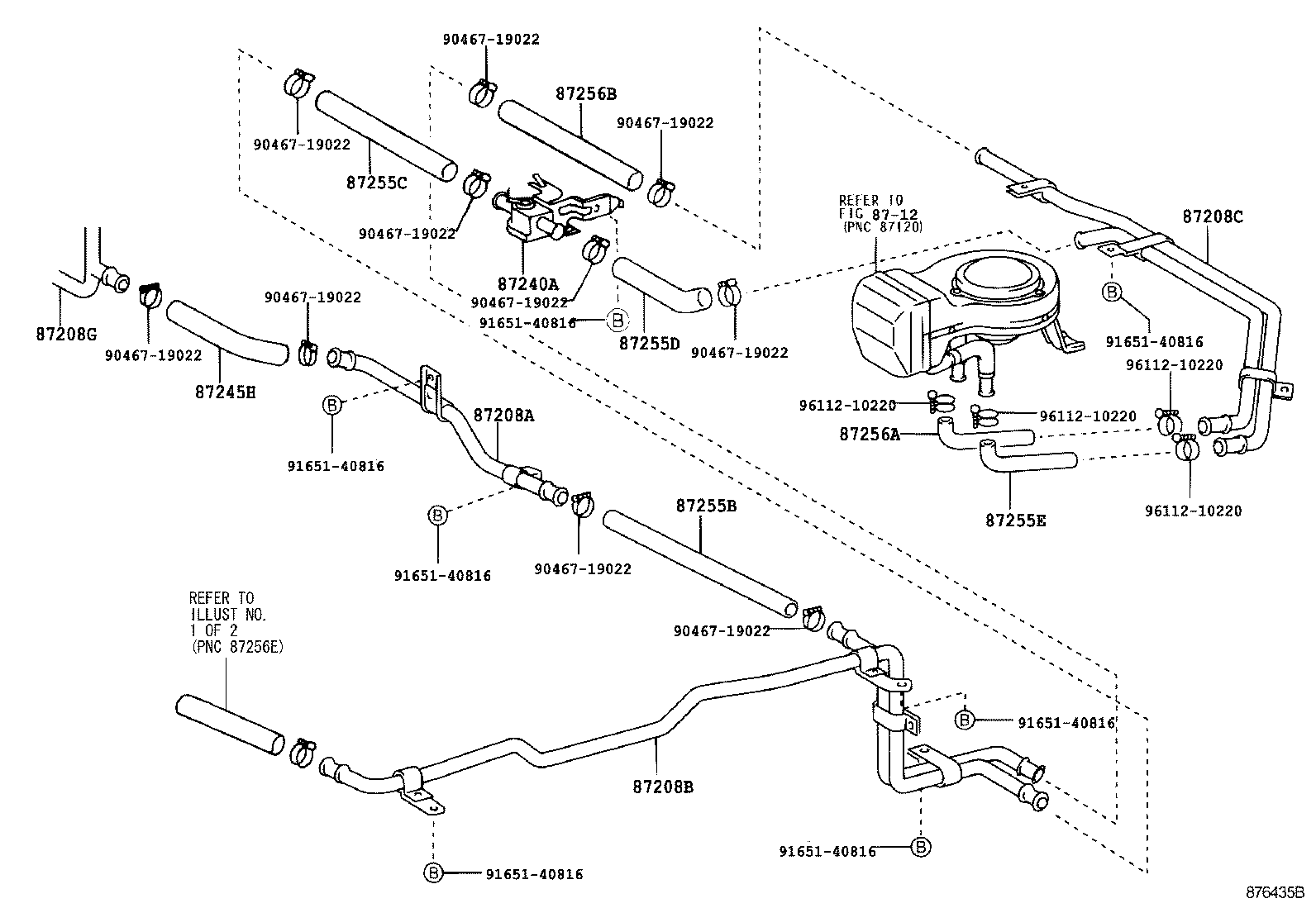

ILLUST NO. 2 OF 2(0308- )TRH124..DX

HIACE REGIUSACE | HEATING AIR CONDITIONING WATER PIPING ** Refer Fig 87208A - PIPE SUB-ASSY, HEATER WATER, A 87208B - PIPE SUB-ASSY, HEATER WATER, B 87208C - PIPE SUB-ASSY, HEATER WATER, C 87208G - PIPE SUB-ASSY, HEATER WATER, G 87240A - VALVE ASSY, REAR HEATER WATER 87245H - HOSE, HEATER WATER, INLET H 87255B - HOSE, REAR HEATER WATER INLET, B 87255C - HOSE, REAR HEATER WATER INLET, C 87255D - HOSE, REAR HEATER WATER INLET, D 87255E - HOSE, REAR HEATER WATER INLET, E(TO HEATER UNIT) 87256A - HOSE, REAR HEATER WATER OUTLET, A (FROM HEATER UNIT) 87256B - HOSE, REAR HEATER WATER OUTLET, B ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
