TOYOTA IPSUM ACM21W-ARSGK / BODY / FUEL TANK TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

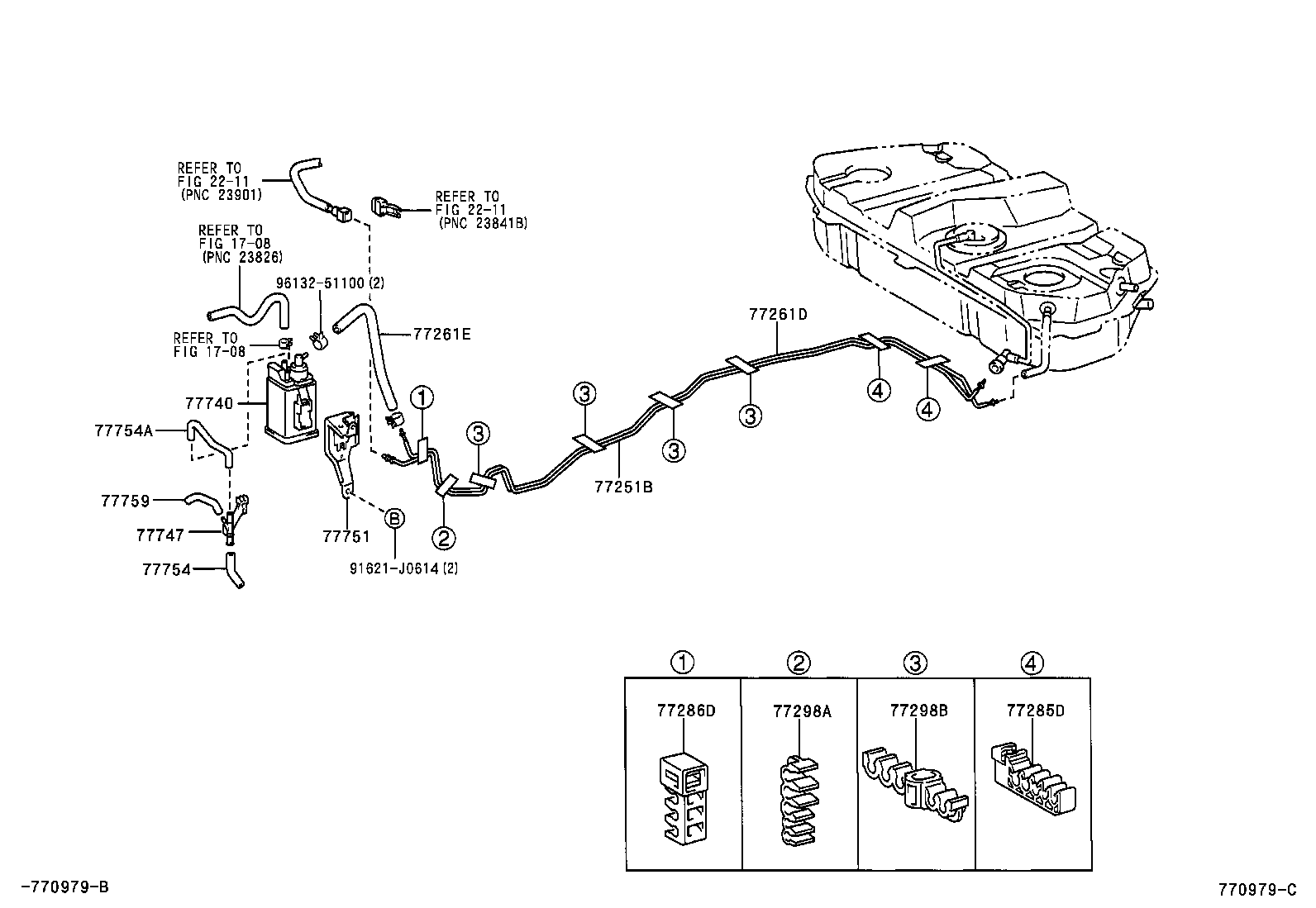

FUEL TANK TUBE

ﾌｭｰｴﾙ ﾁｭｰﾌﾞ ILLUST NO. 2 OF 2(0105- )

IPSUM | FUEL TANK TUBE ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 77251B - TUBE, FUEL MAIN 77261D - TUBE, FUEL TANK TO CANISTER 77261E - HOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE) 77285D - CLAMP, FUEL TUBE, NO.1 77286D - CLAMP, FUEL TUBE, NO.2 77298A - CLAMP, FUEL TUBE, NO.4 77298B - CLAMP, FUEL TUBE, NO.4 77740 - CANISTER ASSY, CHARCOAL 77747 - PIPE, CHARCOAL CANISTER, NO.1 77751 - BRACKET, CHARCOAL CANISTER BASE 77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1 77754A - HOSE, CHARCOAL CANISTER OUTLET, NO.2 77759 - HOSE, CHARCOAL CANISTER ** Std Part ** Std Part
