TOYOTA LAND CRUISER PRADO KDJ120W-GKPEY / ELECTRICAL / SWITCH RELAY COMPUTER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

SWITCH RELAY COMPUTER

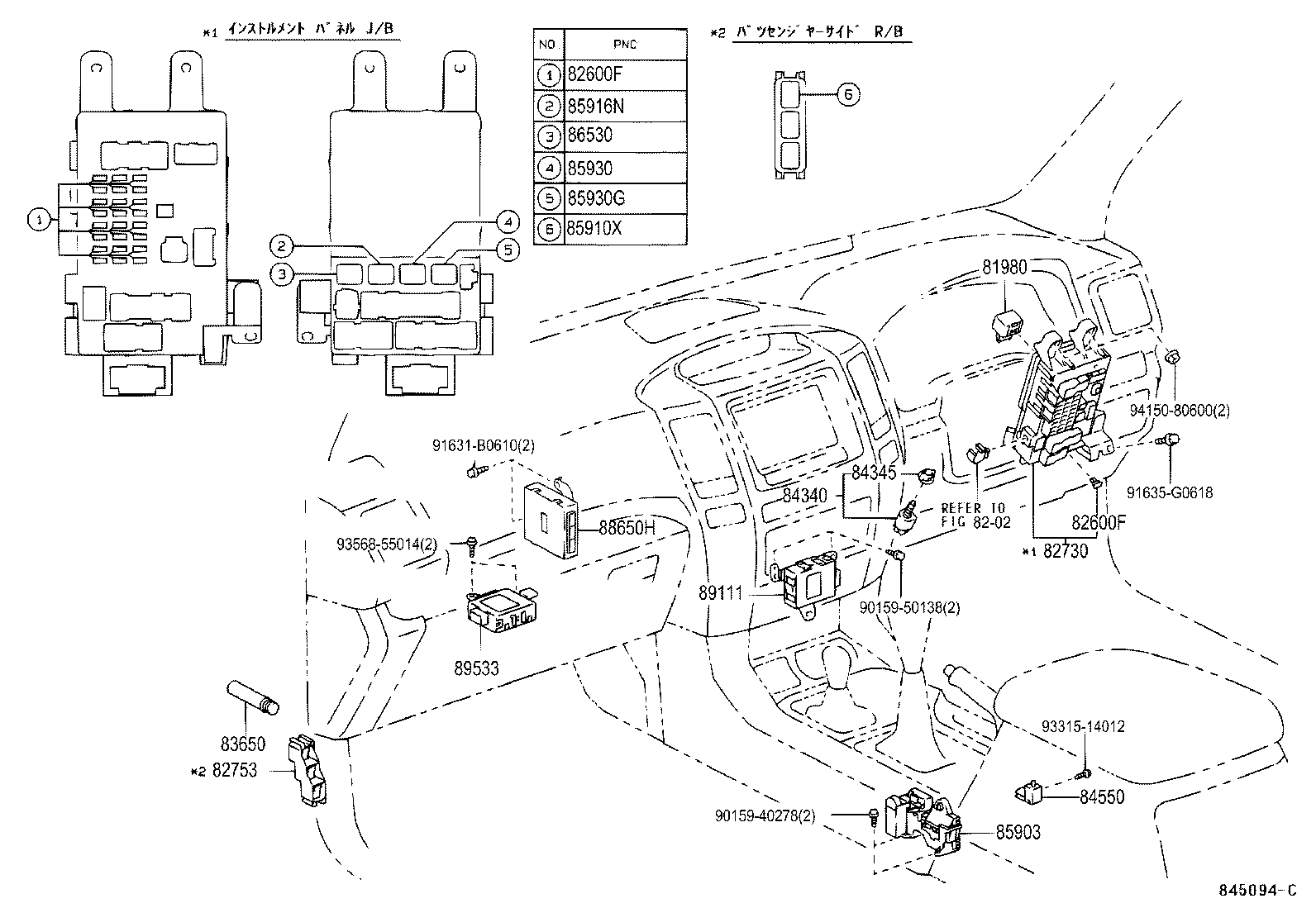

ｶｳﾙ ILLUST NO. 3 OF 7(0209- )

LAND CRUISER PRADO | SWITCH RELAY COMPUTER 81980 - FLASHER ASSY, TURN SIGNAL ** Refer Fig 82600F - FUSE, FUSE BLOCK 82600F - FUSE, FUSE BLOCK 82730 - BLOCK ASSY, INSTRUMENT PANEL JUNCTION 82753 - BLOCK, PASSENGER SIDE RELAY 83650 - FUSEE 84340 - SWITCH ASSY, STOP LAMP 84345 - ADJUSTER, STOP LAMP SWITCH MOUNTING 84550 - SWITCH ASSY, PARKING BRAKE 85903 - COMPUTER SUB-ASSY, SHIFT LOCK CONTROL 85910X - RELAY, HEATER MIRROR 85916N - RELAY, TAIL LAMP 85930 - RELAY ASSY, POWER WINDOW 85930G - RELAY, ACC 86530 - RELAY ASSY, HORN 88650H - AMPLIFIER ASSY, AIR CONDITIONER 89111 - COMPUTER, NETWORK GATEWAY 89533 - COMPUTER, 4 WHEEL DRIVE CONTROL ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
