TOYOTA LAND CRUISER PRADO KDJ120W-GKPEY / POWERTRAIN-CHASSIS / TRANSFER LEVER SHIFT ROD

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

TRANSFER LEVER SHIFT ROD

ｱﾘ(ABS & VSC & ACTIVE TRC) (0211- )KDJ12#

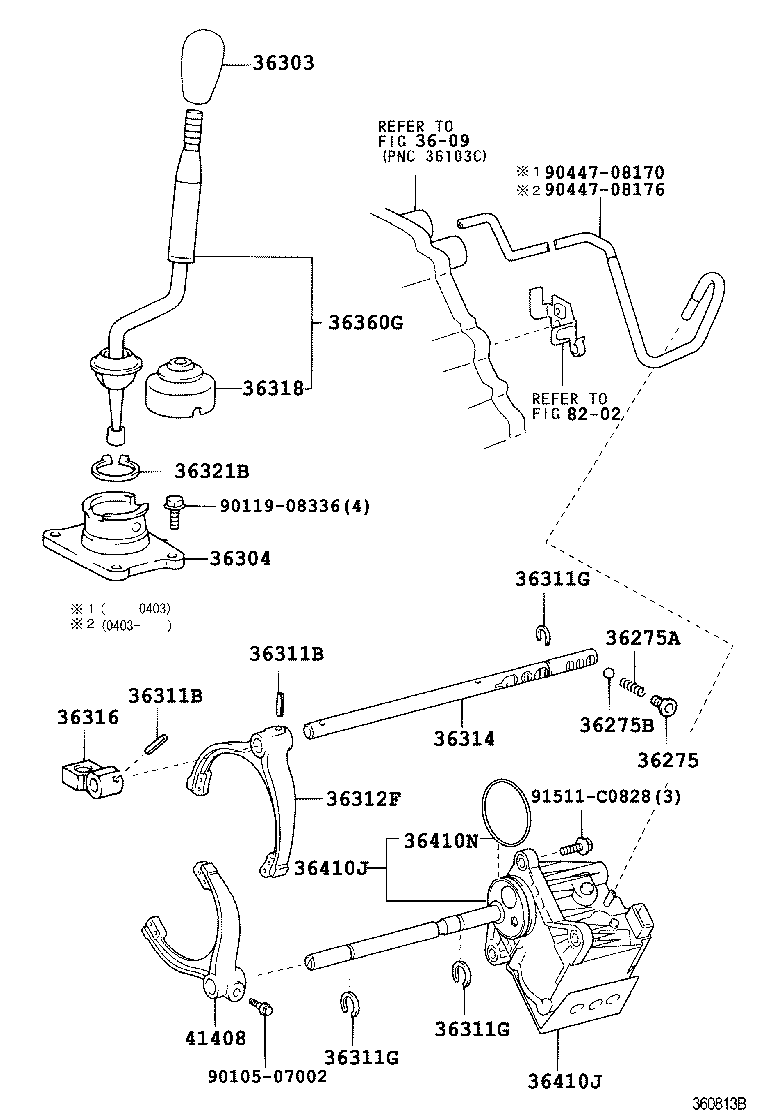

LAND CRUISER PRADO | TRANSFER LEVER SHIFT ROD ** Refer Fig 36275 - PLUG, SHIFT DETENT BALL SPRING 36275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL) 36275B - BALL, SHIFT DETENT 36303 - KNOB SUB-ASSY, SHIFT LEVER 36304 - RETAINER SUB-ASSY, TRANSFER CONTROL SHIFT LEVER 36311B - PIN, SLOTTED SPRING (FOR TRANSFER SHIFT FORK) 36311B - PIN, SLOTTED SPRING (FOR TRANSFER SHIFT FORK) 36311G - RING, SHAFT SNAP (FOR TRANSFER GEAR SHIFT FORK) 36311G - RING, SHAFT SNAP (FOR TRANSFER GEAR SHIFT FORK) 36311G - RING, SHAFT SNAP (FOR TRANSFER GEAR SHIFT FORK) 36312F - FORK, TRANSFER GEAR SHIFT, NO.2 36314 - SHAFT, TRANSFER HIGH AND LOW SHIFT FORK 36316 - HEAD, TRANSFER GEAR SHIFT, NO.2 36318 - BOOT, TRANSFER FRONT DRIVE SHIFT 36321B - RING, HOLE SNAP (FOR TRANSFER FRONT DRIVE SHIFT LEVER) 36360G - LEVER ASSY, TRANSFER HIGH & LOW SHIFT 36410J - ACTUATOR ASSY, TRANSFER SHIFT 36410J - ACTUATOR ASSY, TRANSFER SHIFT 36410N - RING, O (FOR TRANSFER SHIFT ACTUATOR) 41408 - FORK SUB-ASSY, CENTER DIFFERENTIAL LOCK ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
