TOYOTA QUICK DELI URBAN SUP LY228K-QLQDS / BODY / FUEL TANK TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

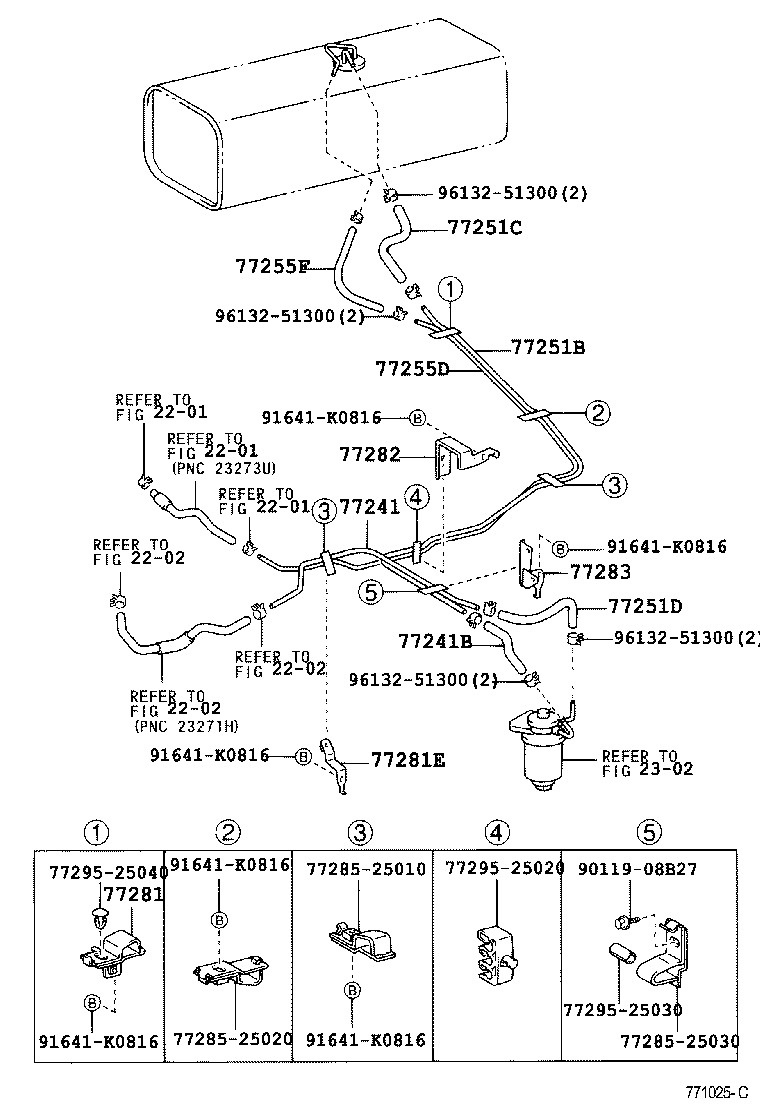

FUEL TANK TUBE

ﾌｭｰｴﾙ ﾁｭｰﾌﾞ ILLUST NO. 2 OF 2(0108-0407)LY228,270

QUICK DELI URBAN SUP | FUEL TANK TUBE ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 77241 - TUBE, FUEL MAIN, NO.1 77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1) 77251B - TUBE, FUEL MAIN 77251C - HOSE, FUEL, NO.1(FOR FUEL MAIN TUBE) 77251D - HOSE, FUEL, NO.2(FOR FUEL MAIN TUBE) 77255D - TUBE, FUEL RETURN 77255F - HOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE) 77281 - BRACKET, FUEL MAIN TUBE, NO.1 77281E - BRACKET, FUEL MAIN TUBE, NO.1 77282 - BRACKET, FUEL MAIN TUBE, NO.2 77283 - BRACKET, FUEL TUBE ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
