TOYOTA WILL VS ZZE127-AHPNK / ELECTRICAL / SWITCH RELAY COMPUTER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

SWITCH RELAY COMPUTER

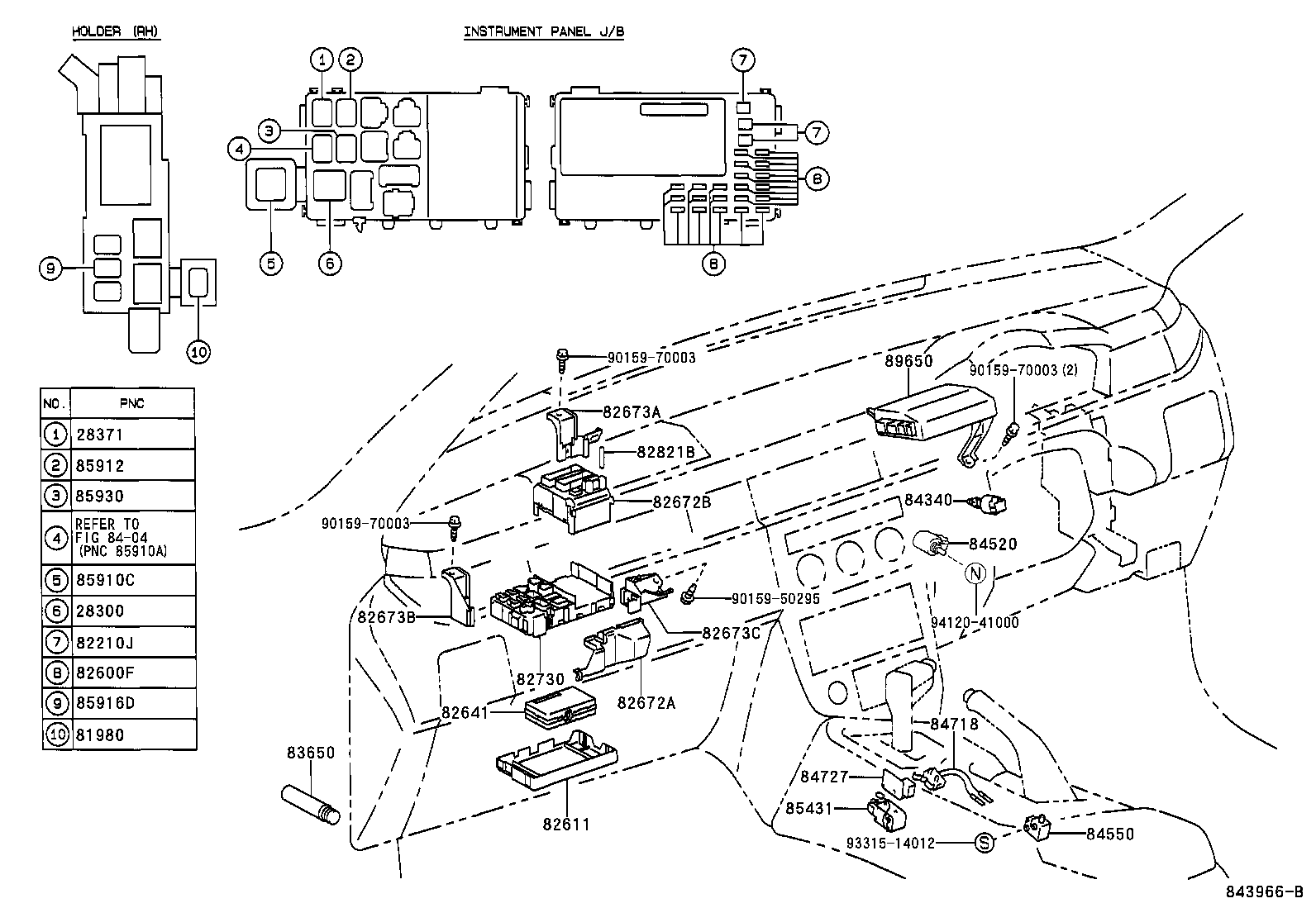

ｶｳﾙ ILLUST NO. 3 OF 6(0104- )

WILL VS | SWITCH RELAY COMPUTER 28300 - RELAY ASSY, STARTER 28371 - RELAY, IGNITION, NO.1 81980 - FLASHER ASSY, TURN SIGNAL 82210J - FUSIBLE LINK 82600F - FUSE, FUSE BLOCK 82611 - COVER, FUSE BLOCK 82641 - RELAY, INTEGRATION NO.1 82672A - COVER, JUNCTION BLOCK 82672B - COVER, JUNCTION BLOCK 82673A - BRACKET, JUNCTION BLOCK 82673B - BRACKET, JUNCTION BLOCK 82673C - BRACKET, JUNCTION BLOCK 82730 - BLOCK ASSY, INSTRUMENT PANEL JUNCTION 82821B - COVER, CONNECTOR 83650 - FUSEE ** Refer Fig 84340 - SWITCH ASSY, STOP LAMP 84520 - SWITCH ASSY, CLUTCH START 84550 - SWITCH ASSY, PARKING BRAKE 84718 - SWITCH, TRANSMISSION SHIFT MAIN 84727 - SWITCH, SHIFT LOCK CONTROL 85431 - SOLENOID, SHIFT LOCK 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) 85912 - RELAY, DEFOGGER 85916D - RELAY, FOG LAMP 85930 - RELAY ASSY, POWER WINDOW 89650 - COMPUTER ASSY, POWER STEERING ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
