TOYOTA WINDOM MCV30-BEANK / ELECTRICAL / WIRING CLAMP

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

WIRING CLAMP

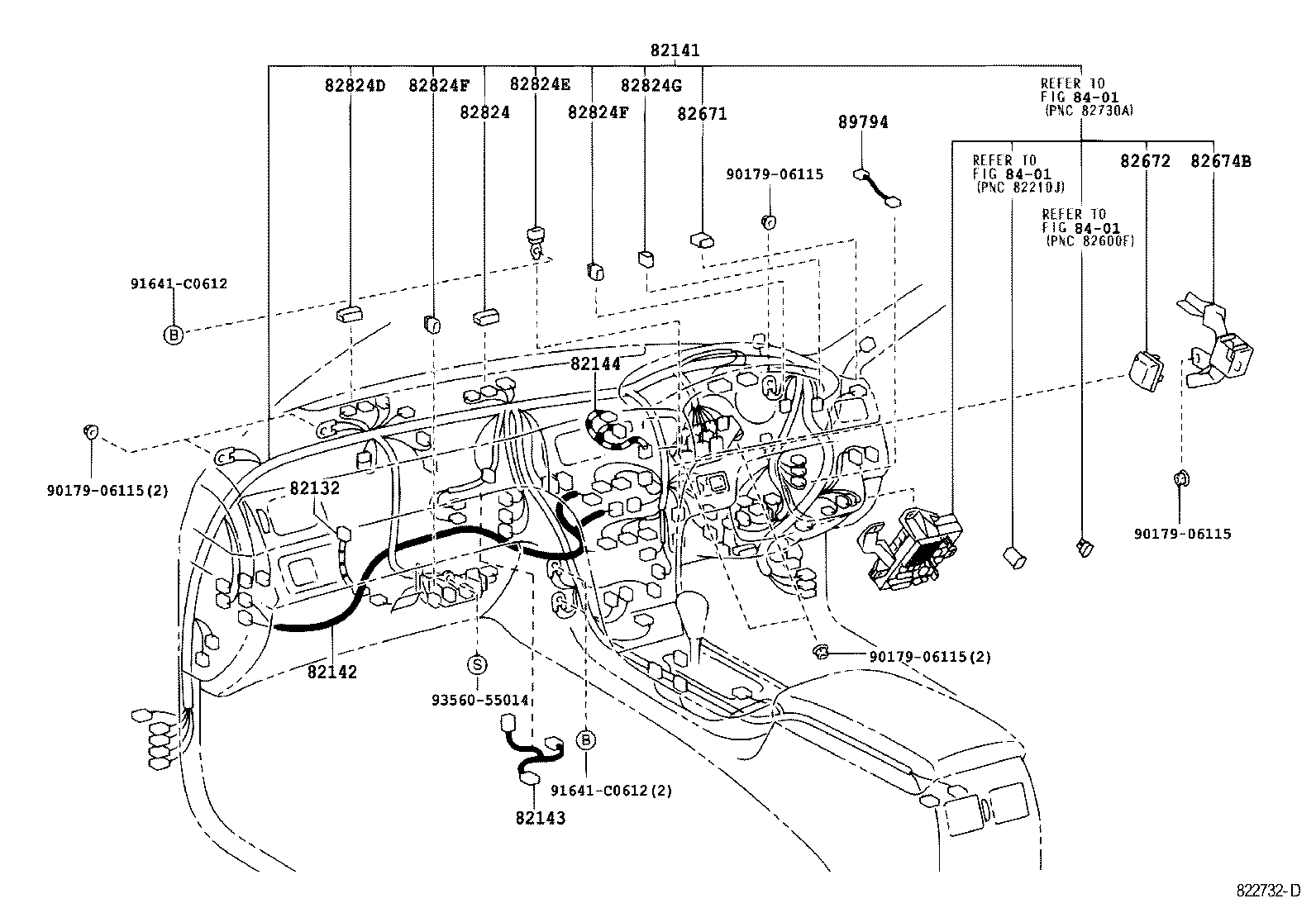

ｲﾝｽﾄﾙﾒﾝﾄ ﾊﾟﾈﾙ ILLUST NO. 3 OF 8(0107-0406)

WINDOM | WIRING CLAMP 82132 - WIRE, COWL, NO.2 82141 - WIRE, INSTRUMENT PANEL 82142 - WIRE, INSTRUMENT PANEL, NO.2 82143 - WIRE, INSTRUMENT PANEL, NO.3 82144 - WIRE, INSTRUMENT PANEL, NO.4 82671 - BLOCK, JUNCTION 82672 - COVER, JUNKTION BLOCK 82674B - COVER, JUNCTION BLOCK, LOWER 82824 - CONNECTOR, WIRING HARNESS 82824D - CONNECTOR, WIRING HARNESS 82824E - CONNECTOR, WIRING HARNESS 82824F - CONNECTOR, WIRING HARNESS 82824F - CONNECTOR, WIRING HARNESS 82824G - CONNECTOR, WIRING HARNESS ** Refer Fig ** Refer Fig ** Refer Fig 89794 - WIRE, TRANSPONDER KEY ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
