TOYOTA DYNA TOYOACE XZU308V-RRMMS / BODY / SEAT SEAT TRACK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

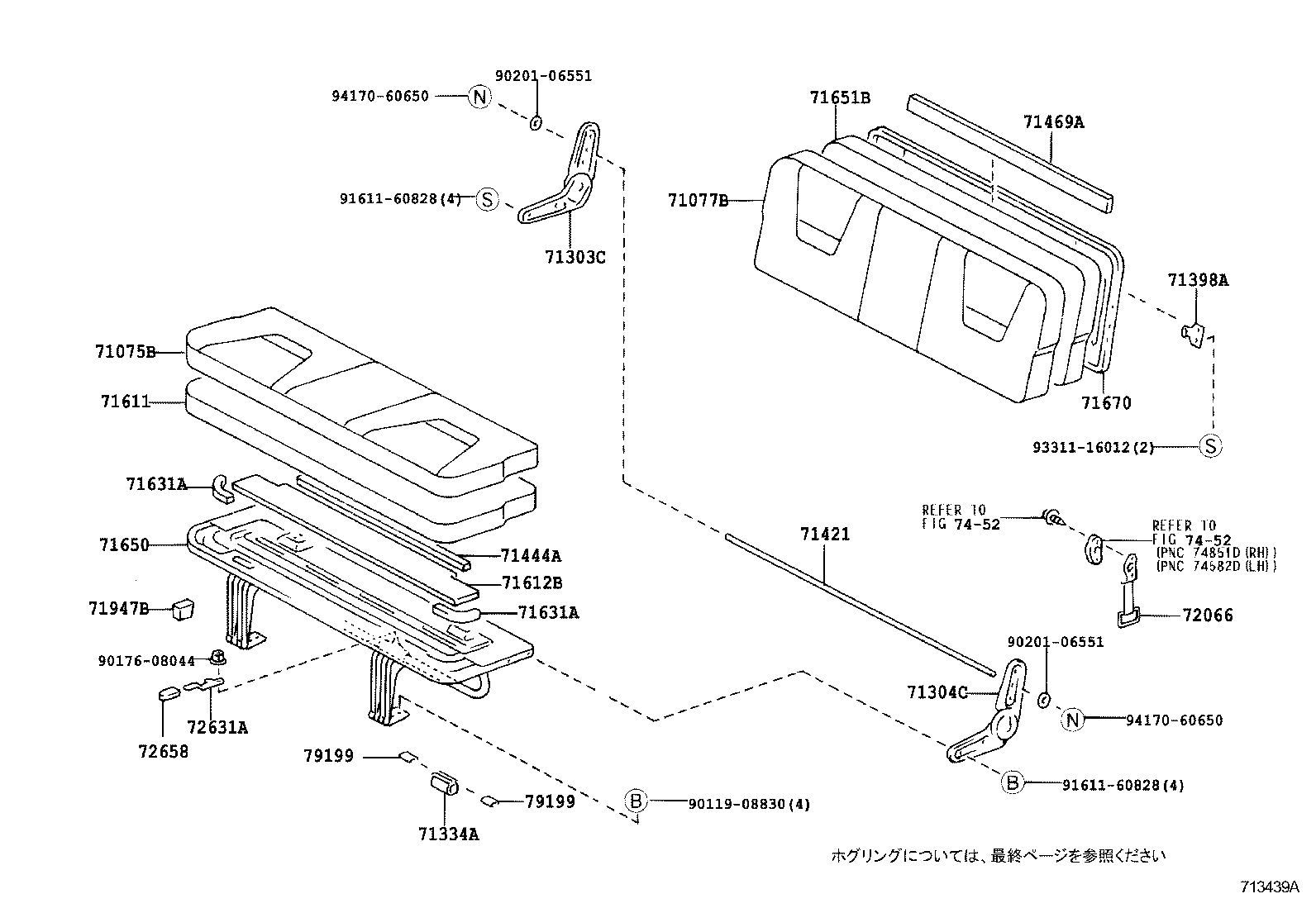

SEAT SEAT TRACK

ﾘﾔｼｰﾄ(ｵﾘﾀﾀﾐ ｼｰﾄ) ILLUST NO. 3 OF 3(0406- )06S

DYNA TOYOACE | SEAT SEAT TRACK 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) 71077B - COVER, REAR SEAT BACK (FOR BENCH TYPE) 71303C - HINGE SUB-ASSY, REAR SEAT BACK, RH 71304C - HINGE SUB-ASSY, REAR SEAT BACK, LH 71334A - STOPPER, REAR SEAT LEG 71398A - HOLDER, REAR SEAT BACK 71421 - BAR, REAR SEAT BACK EQUALIZING 71444A - PAD, REAR SEAT CUSHION, REAR 71469A - PAD, REAR SEAT BACK 71611 - PAD, REAR SEAT CUSHION 71612B - PAD, REAR SEAT CUSHION, B 71631A - PAD, REAR SEAT CUSHION CORNER 71631A - PAD, REAR SEAT CUSHION CORNER 71650 - SPRING ASSY, REAR SEAT CUSHION 71651B - PAD, REAR SEAT BACK(FOR BENCH TYPE) 71670 - SPRING ASSY, REAR SEAT BACK(FOR BENCH SEAT) 71947B - BUMPER, REAR PASSENGER SEAT CUSHION 72066 - BELT SUB-ASSY, REAR SEAT HOOK, LH 72631A - HANDLE, REAR SEAT LEG STOPPER 72658 - KNOB, REAR SEAT HANDLE ** Refer Fig ** Refer Fig 79199 - HOLDER, NO.1 SEAT LEG STOPPER 79199 - HOLDER, NO.1 SEAT LEG STOPPER ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
