TOYOTA PROBOX SUCCEED NLP51V-EXMGX / ELECTRICAL / HEATING AIR CONDITIONING COOLER UNIT

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

HEATING AIR CONDITIONING COOLER UNIT

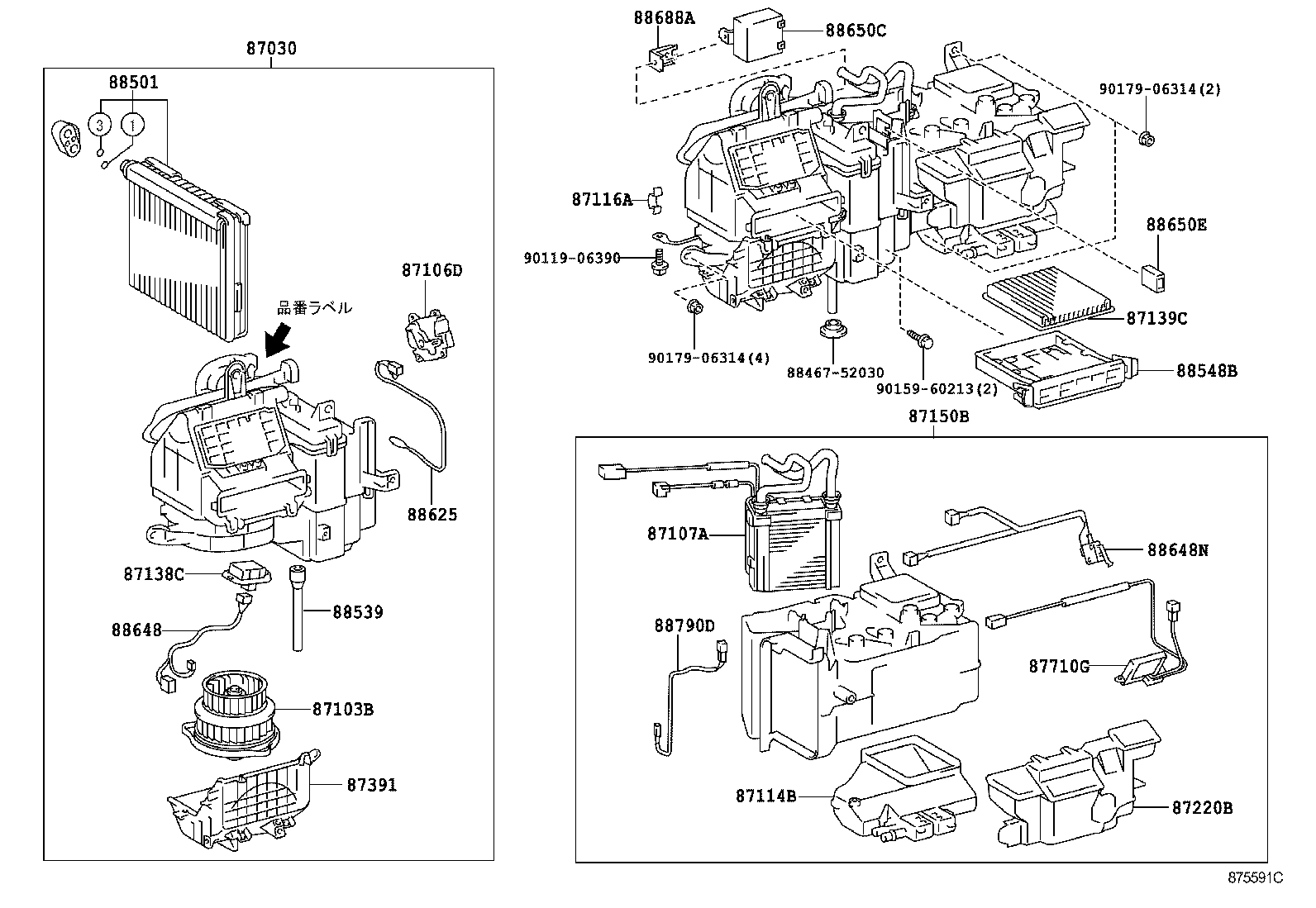

ｶﾝﾚｲﾁ ｼﾖｳ ILLUST NO. 1 OF 2(0206- )NLP51

PROBOX SUCCEED | HEATING AIR CONDITIONING COOLER UNIT 87030 - BLOWER ASSY, AIR CONDITIONER 87103B - MOTOR SUB-ASSY, BLOWER W/FAN 87106D - SERVO SUB-ASSY, DAMPER, NO.1 87107A - UNIT SUB-ASSY, HEATER RADIATOR 87114B - COVER, HEATER 87116A - SPRING, HOLDING (FOR COOLER UNIT CASE) 87138C - RESISTOR, BLOWER 87139C - FILTER, CLEAN AIR 87150B - RADIATOR ASSY, HEATER 87220B - DUCT ASSY, AIR 87391 - COVER, BLOWER MOTOR 87710G - QUICK HEATER ASSY ** Std Part 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 88539 - HOSE, COOLER UNIT DRAIN, NO.1 88548B - CASE, AIR FILTER 88625 - THERMISTOR, COOLER, NO.1 88648 - WIRING, COOLER, NO.1 88648N - WIRING, COOLER, NO.2 88650C - AMPLIFIER SUB-ASSY, AIRCONDITIONER 88650E - AMPLIFIER ASSY, AIR CONDITIONER, NO.1 88688A - BRACKET, COOLER STABILIZER AMPLIFIER 88790D - THERMISTOR ASSY ** Std Part ** Std Part ** Std Part ** Std Part
