TOYOTA DYNA TOYOACE XZU334-TKMQW3 / BODY / FRAME

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

FRAME

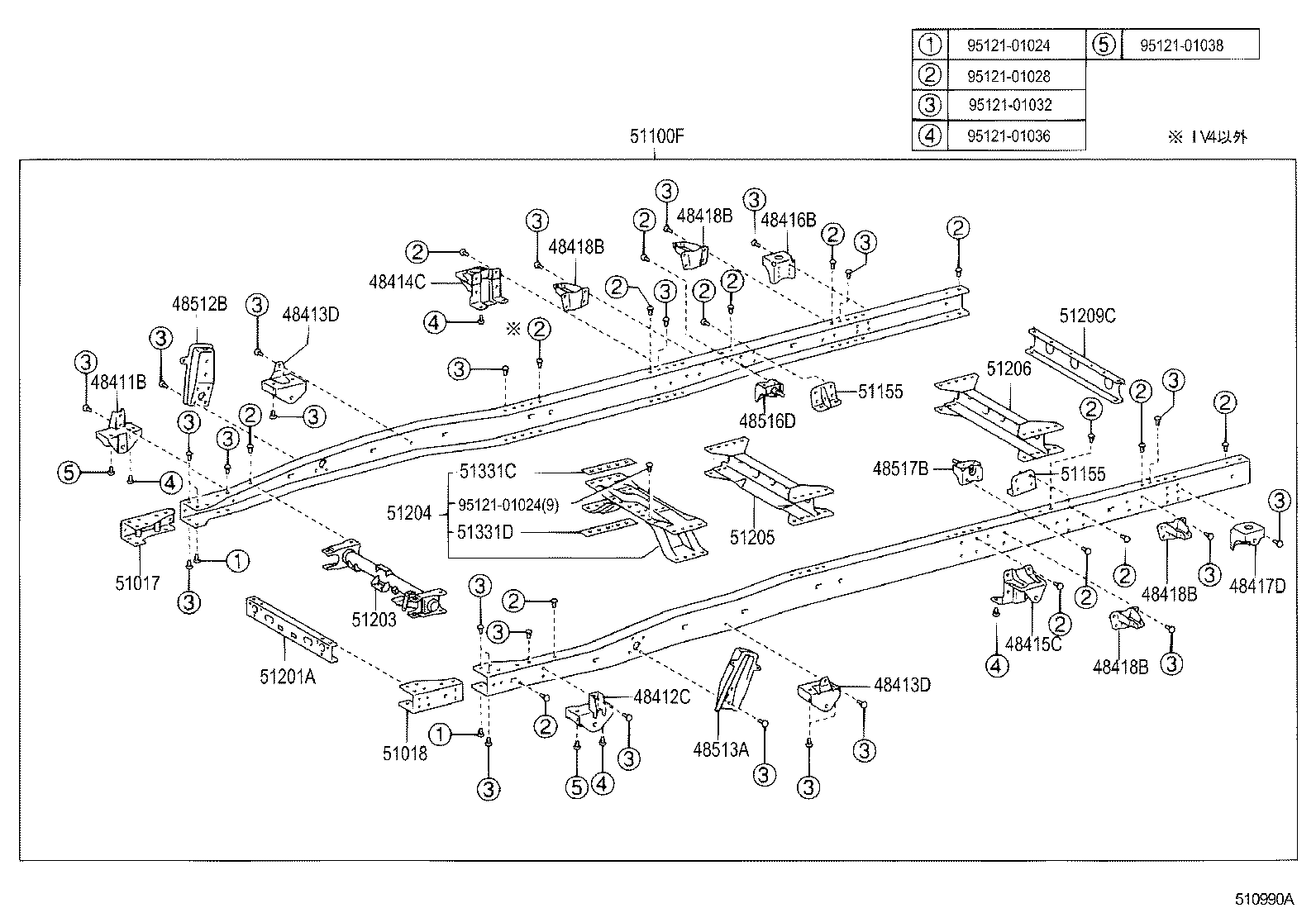

ﾌﾚｰﾑ ILLUST NO. 2 OF 4(0406-0610)XZU331 ; (0406- )BZU300,XZU301,304

DYNA TOYOACE | FRAME 48411B - BRACKET, SPRING, NO.1 RH 48412C - BRACKET, SPRING, NO.1 LH 48413D - BRACKET, SPRING, NO.2 48413D - BRACKET, SPRING, NO.2 48414C - BRACKET, SPRING, NO.3 RH 48415C - BRACKET, SPRING, NO.3 LH 48416B - BRACKET, SPRING, NO.4 RH 48417D - BRACKET, SPRING, NO.4 LH 48418B - BRACKET, SPRING, NO.6 48418B - BRACKET, SPRING, NO.6 48418B - BRACKET, SPRING, NO.6 48418B - BRACKET, SPRING, NO.6 48512B - BRACKET, FRONT SHOCK ABSORBER, UPPER RH 48513A - BRACKET, FRONT SHOCK ABSORBER, UPPER LH 48516D - BRACKET SUB-ASSY, REAR SHOCK ABSORBER, UPR RH 48517B - BRACKET SUB-ASSY, REAR SHOCK ABSORBER, UPR LH 51017 - REINFORCEMENT SUB-ASSY, SIDE RAIL, NO.1 RH 51018 - REINFORCEMENT SUB-ASSY, SIDE RAIL, NO.1 LH 51100F - FRAME SUB-ASSY 51155 - STIFFENER, FRAME SIDE RAIL, REAR RH 51155 - STIFFENER, FRAME SIDE RAIL, REAR RH 51201A - CROSSMEMBER SUB-ASSY, FRAME, FRONT 51203 - CROSSMEMBER SUB-ASSY, FRAME, NO.2 51204 - CROSSMEMBER SUB-ASSY, FRAME, NO.3 51205 - CROSSMEMBER SUB-ASSY, FRAME, NO.4 51206 - CROSSMEMBER SUB-ASSY, FRAME, NO.5 51209C - CROSSMEMBER SUB-ASSY, FRAME, REAR 51331C - GUSSET, FRAME NO.3 CROSSMEMBER 51331D - GUSSET, FRAME NO.3 CROSSMEMBER ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
