TOYOTA CAMRY ACV45-AEPNK / BODY / FUEL TANK TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

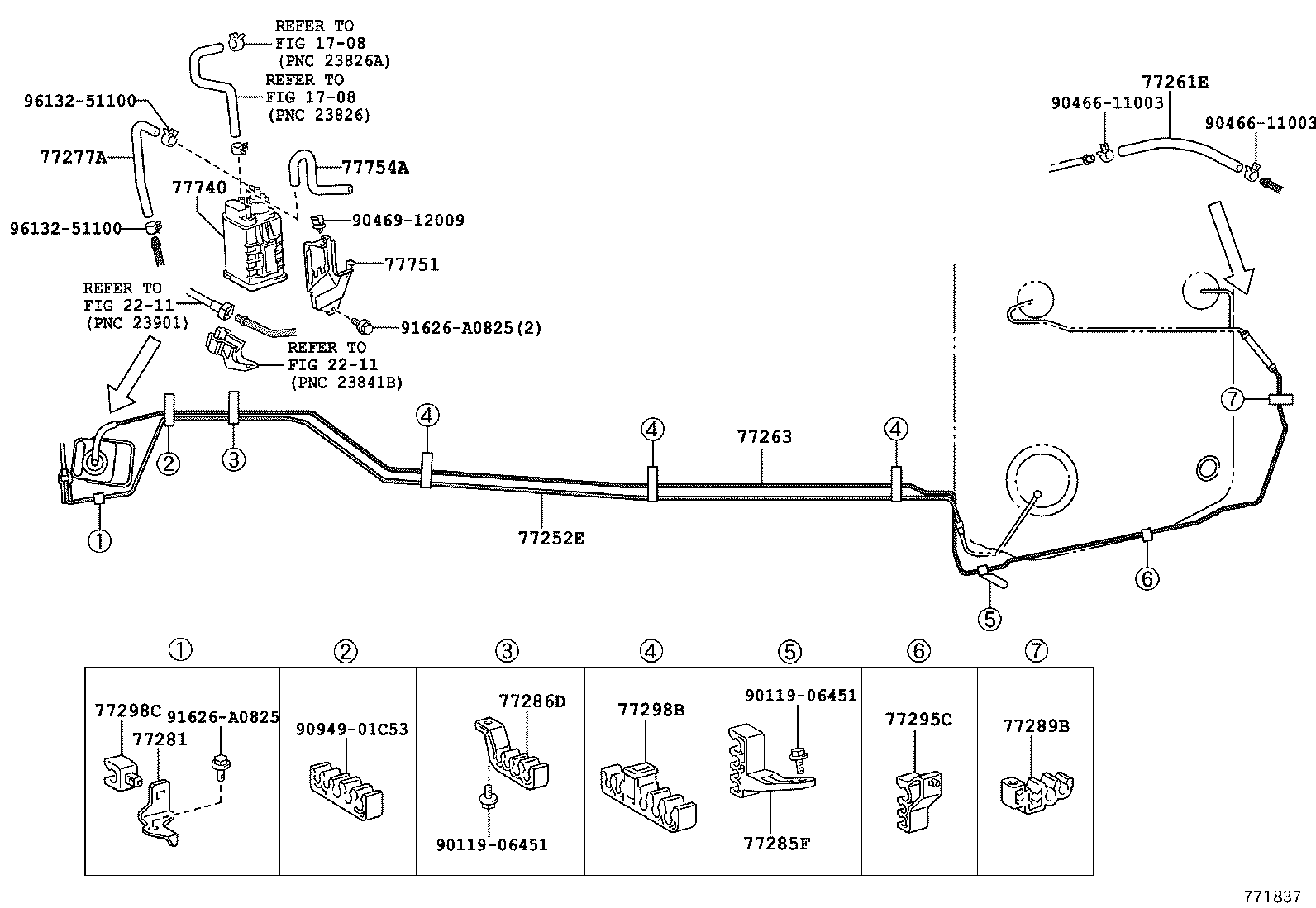

FUEL TANK TUBE

ﾌｭｰｴﾙ ﾁｭｰﾌﾞ ILLUST NO. 2 OF 2(0601- )ACV45

CAMRY | FUEL TANK TUBE ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 77252E - TUBE, FUEL MAIN, NO.2 (FOR FRONT FUEL MAIN) 77261E - HOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE) 77263 - TUBE, FUEL TANK TO CANISTER, NO.3 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) 77281 - BRACKET, FUEL MAIN TUBE, NO.1 77285F - CLAMP, FUEL TUBE, NO.1 77286D - CLAMP, FUEL TUBE, NO.2 77289B - CLAMP, FUEL TUBE, NO.3 77295C - GROMMET, FUEL TUBE 77298B - CLAMP, FUEL TUBE, NO.4 77298C - CLAMP, FUEL TUBE, NO.4 77740 - CANISTER ASSY, CHARCOAL 77751 - BRACKET, CHARCOAL CANISTER BASE 77754A - HOSE, CHARCOAL CANISTER OUTLET, NO.2 ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
