TOYOTA CROWN COMFORT SED GBS12-CEPFK / ELECTRICAL / SWITCH RELAY COMPUTER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

SWITCH RELAY COMPUTER

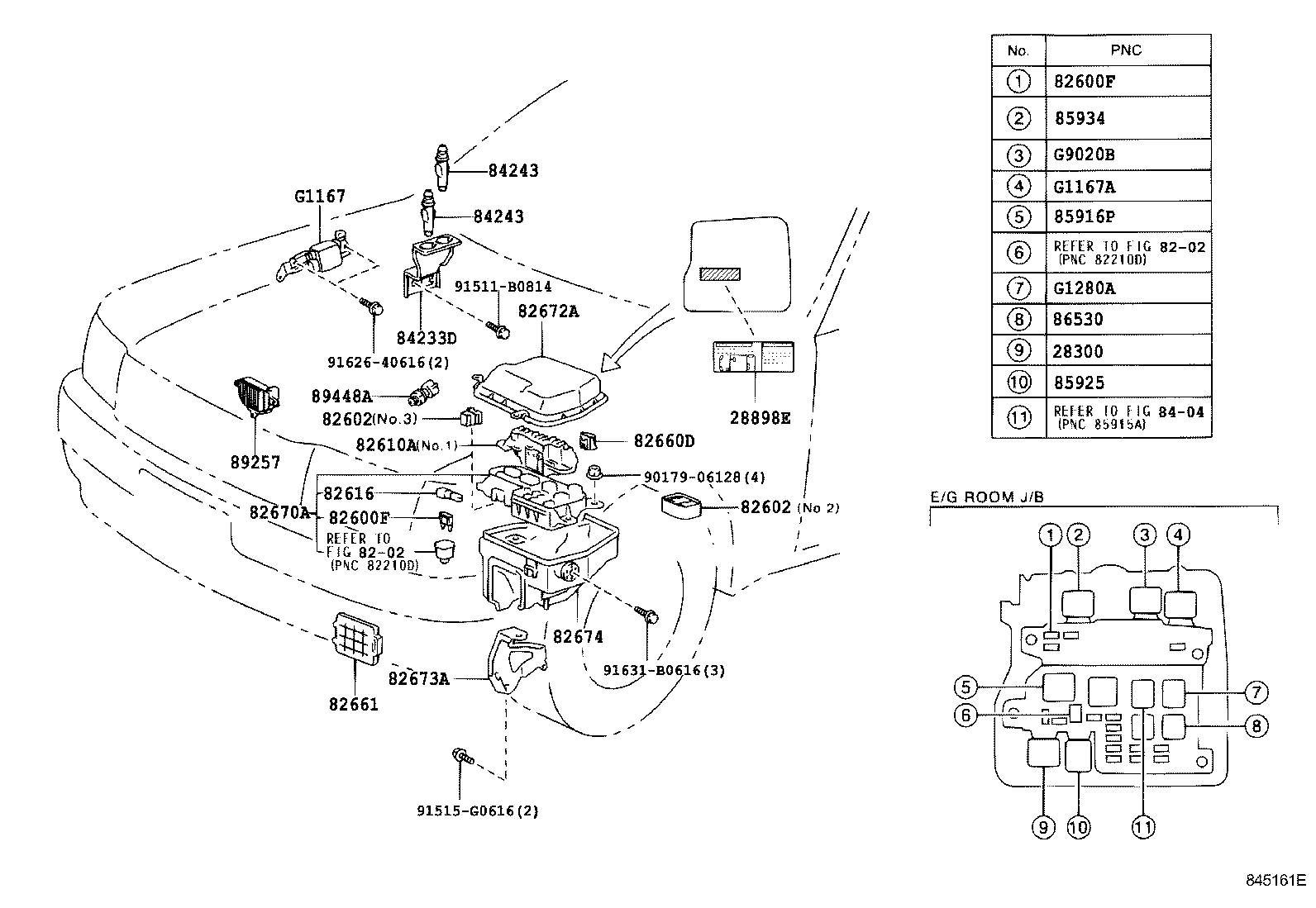

ｴﾝｼﾞﾝ ﾙ-ﾑ ILLUST NO. 2 OF 6(0210- )GBS12

CROWN COMFORT SED | SWITCH RELAY COMPUTER 28300 - RELAY ASSY, STARTER 28898E - LABEL, BATTERY INFORMATION ** Refer Fig ** Refer Fig 82600F - FUSE, FUSE BLOCK 82600F - FUSE, FUSE BLOCK 82602 - BLOCK SUB-ASSY, RELAY 82602 - BLOCK SUB-ASSY, RELAY 82610A - BLOCK ASSY, FUSE 82616 - PULLER, FUSE 82660D - BLOCK ASSY, RELAY 82661 - COVER, RELAY BLOCK, NO.1 82670A - BLOCK ASSY, JUNCTION, NO.1 82672A - COVER, JUNCTION BLOCK 82673A - BRACKET, JUNCTION BLOCK 82674 - COVER, JUNCTION BLOCK LOWER ** Refer Fig 84233D - BRACKET, ENGINE HOOD SWITCH 84243 - SWITCH, ENGINE HOOD 84243 - SWITCH, ENGINE HOOD 85916P - RELAY, HEADLAMP 85925 - RELAY, RADIATOR FAN 85934 - RELAY, MAGNET-CLUTCH 86530 - RELAY ASSY, HORN 89257 - COMPUTER, COOLING FAN 89448A - SENSOR, POWER STEERING OIL PRESSURE ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part G1167 - CONTROLLER, OIL PUMP MOTOR G1167A - RELAY (FOR OIL PUMP MOTOR) G1280A - RELAY, MOTOR GENERATOR MAIN G9020B - RELAY, C/P CLUTCH(MHV)
