TOYOTA DYNA TOYOACE XZU314D-TWMQB / BODY / FRAME

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

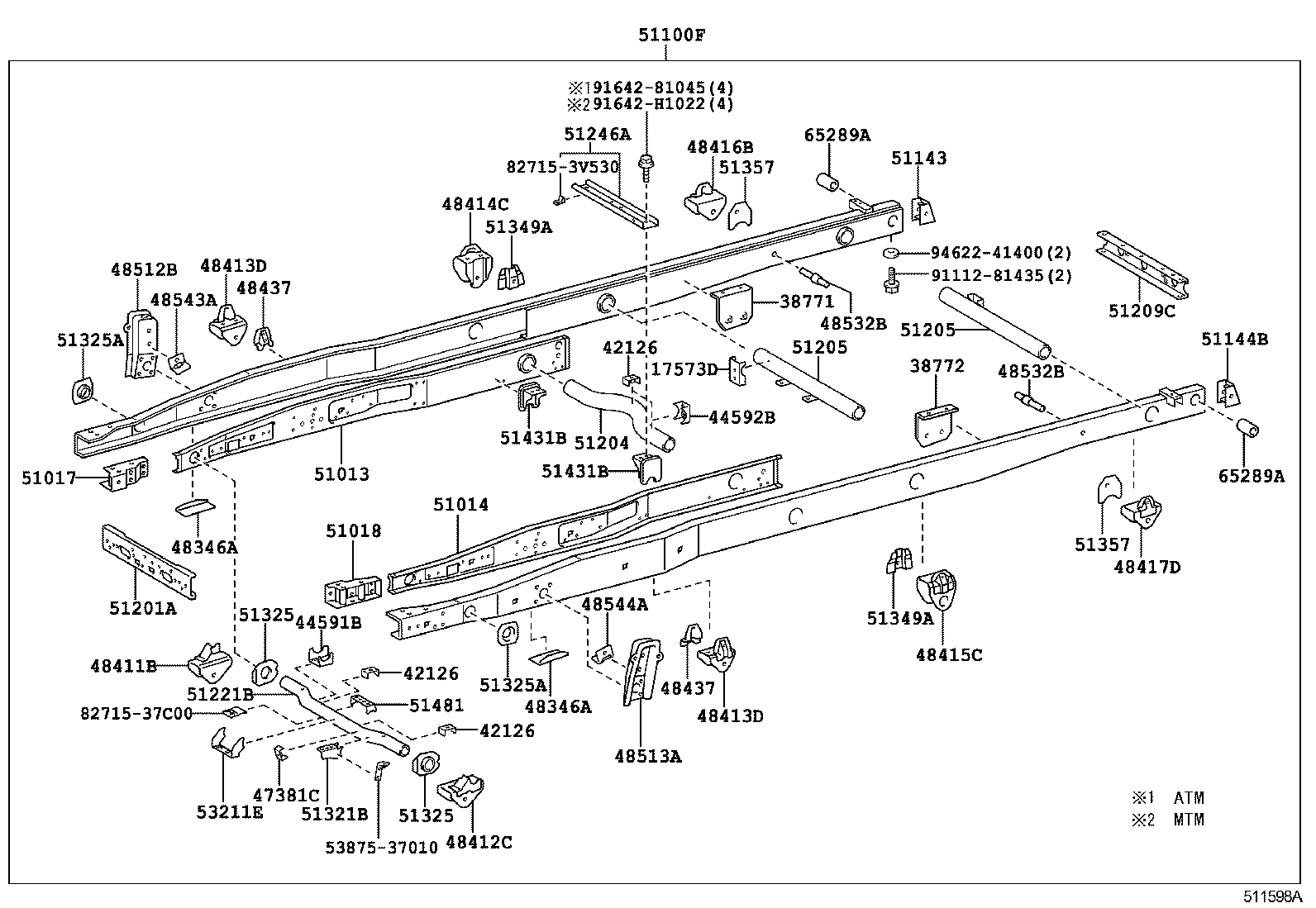

FRAME

ILLUST NO. 2 OF 4(0610- )XZU314,354,554..4NO

DYNA TOYOACE | FRAME 17573D - BRACKET, EXHAUST PIPE SUPPORT, NO.3 38771 - STAY, TRUNNION BRACKET, RH 38772 - STAY, TRUNNION BRACKET, LH 42126 - ATTACHMENT, BRAKE 3 WAY 42126 - ATTACHMENT, BRAKE 3 WAY 42126 - ATTACHMENT, BRAKE 3 WAY 44591B - BRACKET, BRAKE ACTUATOR 44592B - BRACKET, BRAKE ACTUATOR, NO.2 47381C - BRACKET, TUBE CLAMP 48346A - STOPPER, BUMPER, FR 48346A - STOPPER, BUMPER, FR 48411B - BRACKET, SPRING, NO.1 RH 48412C - BRACKET, SPRING, NO.1 LH 48413D - BRACKET, SPRING, NO.2 48413D - BRACKET, SPRING, NO.2 48414C - BRACKET, SPRING, NO.3 RH 48415C - BRACKET, SPRING, NO.3 LH 48416B - BRACKET, SPRING, NO.4 RH 48417D - BRACKET, SPRING, NO.4 LH 48437 - ATTACHMENT, SPRING BRACKET 48437 - ATTACHMENT, SPRING BRACKET 48512B - BRACKET, FRONT SHOCK ABSORBER, UPPER RH 48513A - BRACKET, FRONT SHOCK ABSORBER, UPPER LH 48532B - PIN, REAR SHOCK ABSORBER UPPER PIVOT 48532B - PIN, REAR SHOCK ABSORBER UPPER PIVOT 48543A - REINFORCEMENT, FRONT ABSORBER BRACKET, RH 48544A - REINFORCEMENT, FRONT ABSORBER BRACKET, LH 51013 - CHANNEL SUB-ASSY, SIDE RAIL, INNER FRONT RH 51014 - CHANNEL SUB-ASSY, SIDE RAIL, INNER FRONT LH 51017 - REINFORCEMENT SUB-ASSY, SIDE RAIL, NO.1 RH 51018 - REINFORCEMENT SUB-ASSY, SIDE RAIL, NO.1 LH 51100F - FRAME SUB-ASSY 51143 - REINFORCEMENT, SIDE RAIL, REAR RH 51144B - REINFORCEMENT, SIDE RAIL, REAR LH 51201A - CROSSMEMBER SUB-ASSY, FRAME, FRONT 51204 - CROSSMEMBER SUB-ASSY, FRAME, NO.3 51205 - CROSSMEMBER SUB-ASSY, FRAME, NO.4 51205 - CROSSMEMBER SUB-ASSY, FRAME, NO.4 51209C - CROSSMEMBER SUB-ASSY, FRAME, REAR 51221B - CROSSMEMBER, FRONT SUSPENSION 51246A - MEMBER, ENGINE REAR SUPPORT 51321B - GUSSET, CROSSMEMBER, NO.2 51325 - RETAINER, FRAME NO.2 CROSSMEMBER 51325 - RETAINER, FRAME NO.2 CROSSMEMBER 51325A - RETAINER, FRAME NO.2 CROSSMEMBER 51325A - RETAINER, FRAME NO.2 CROSSMEMBER 51349A - REINFORCEMENT, REAR SPRING FRONT BRACKET, NO.2 51349A - REINFORCEMENT, REAR SPRING FRONT BRACKET, NO.2 51357 - REINFORCEMENT, REAR SPRING REAR BRACKET, RH 51357 - REINFORCEMENT, REAR SPRING REAR BRACKET, RH 51431B - BRACKET, ENGINE REAR MOUNTING 51431B - BRACKET, ENGINE REAR MOUNTING 51481 - BRACKET, POWER STEERING TUBE CLAMP 53211E - SUPPORT, RADIATOR ** Std Part 65289A - SUPPORT, VESSEL HINGE 65289A - SUPPORT, VESSEL HINGE ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
