TOYOTA HIACE REGIUSACE KDH227B-LEPNY5 / ELECTRICAL / HEATING AIR CONDITIONING COOLER PIPING

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

HEATING AIR CONDITIONING COOLER PIPING

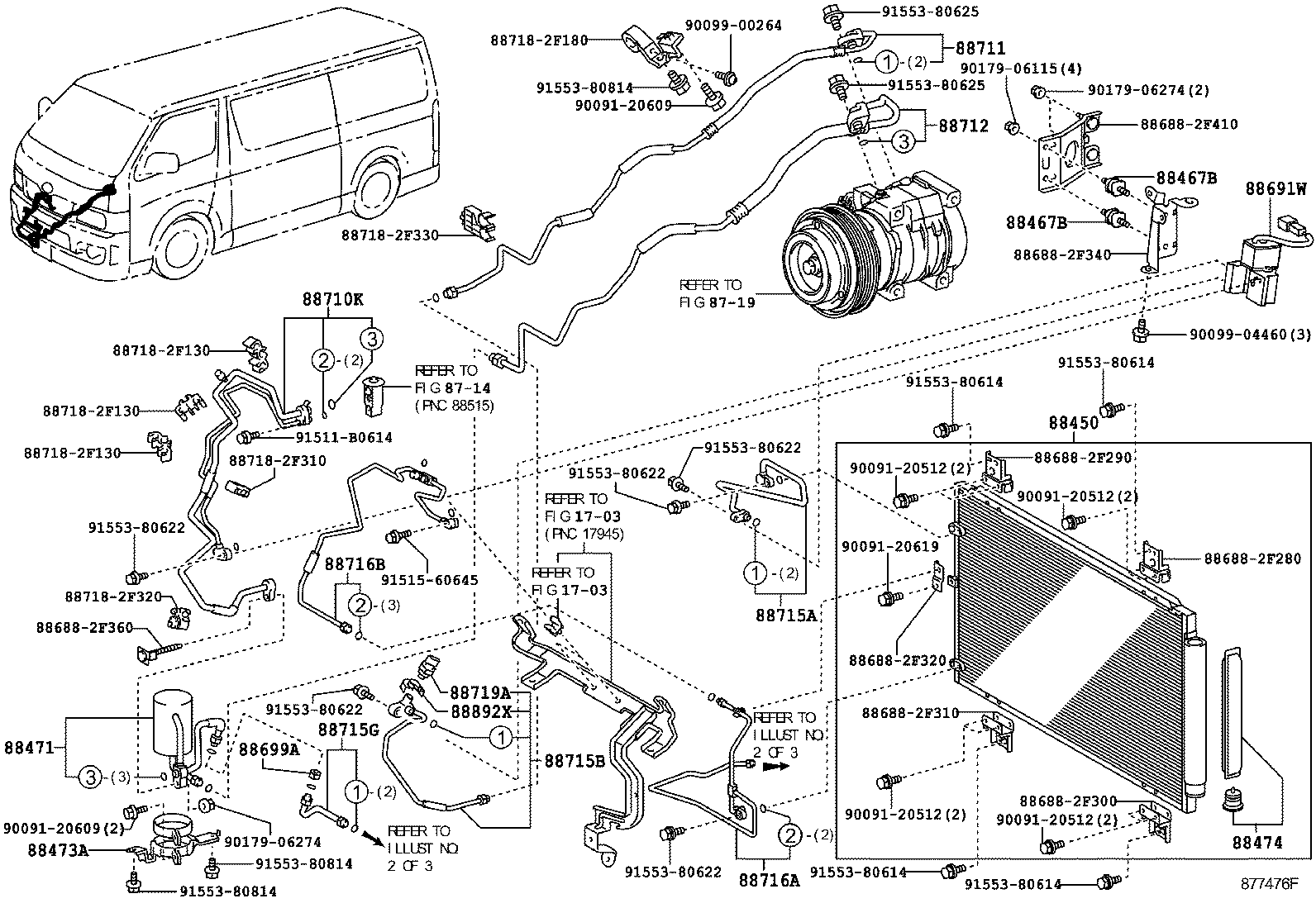

ﾌﾛﾝﾄ:ﾃﾞｭｱﾙｴｱｺﾝ,ｶﾝﾚｲﾁｼﾖｳ ILLUST NO. 1 OF 3(0501-0709)KDH22# ; (0709- )KDH211,22#

HIACE REGIUSACE | HEATING AIR CONDITIONING COOLER PIPING ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 88450 - CONDENSER ASSY, W/RECEIVER 88467B - INSULATOR, COOLER CONDENSER MOUNTING 88467B - INSULATOR, COOLER CONDENSER MOUNTING 88471 - TANK, RECEIVER AIR CONDITIONER 88473A - HOLDER, RECEIVER 88474 - DRYER, COOLER ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part 88691W - VALVE, MAGNET 88699A - VALVE, AIR 88710K - TUBE & ACCESSORY ASSY, AIRCONDITIONER, NO.3 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A 88715B - PIPE, COOLER REFRIGERANT DISCHARGE, B 88715G - TUBE, DISCHARGE, G 88716A - PIPE, COOLER REFRIGERANT LIQUID, A 88716B - PIPE, COOLER REFRIGERANT LIQUID, B ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part 88719A - SENSOR, AIRCONDITIONER PRESSURE 88892X - COVER, COOLER, NO.2 ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
