TOYOTA HIACE REGIUSACE TRH214W-JDPNK / BODY / SEAT SEAT TRACK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

SEAT SEAT TRACK

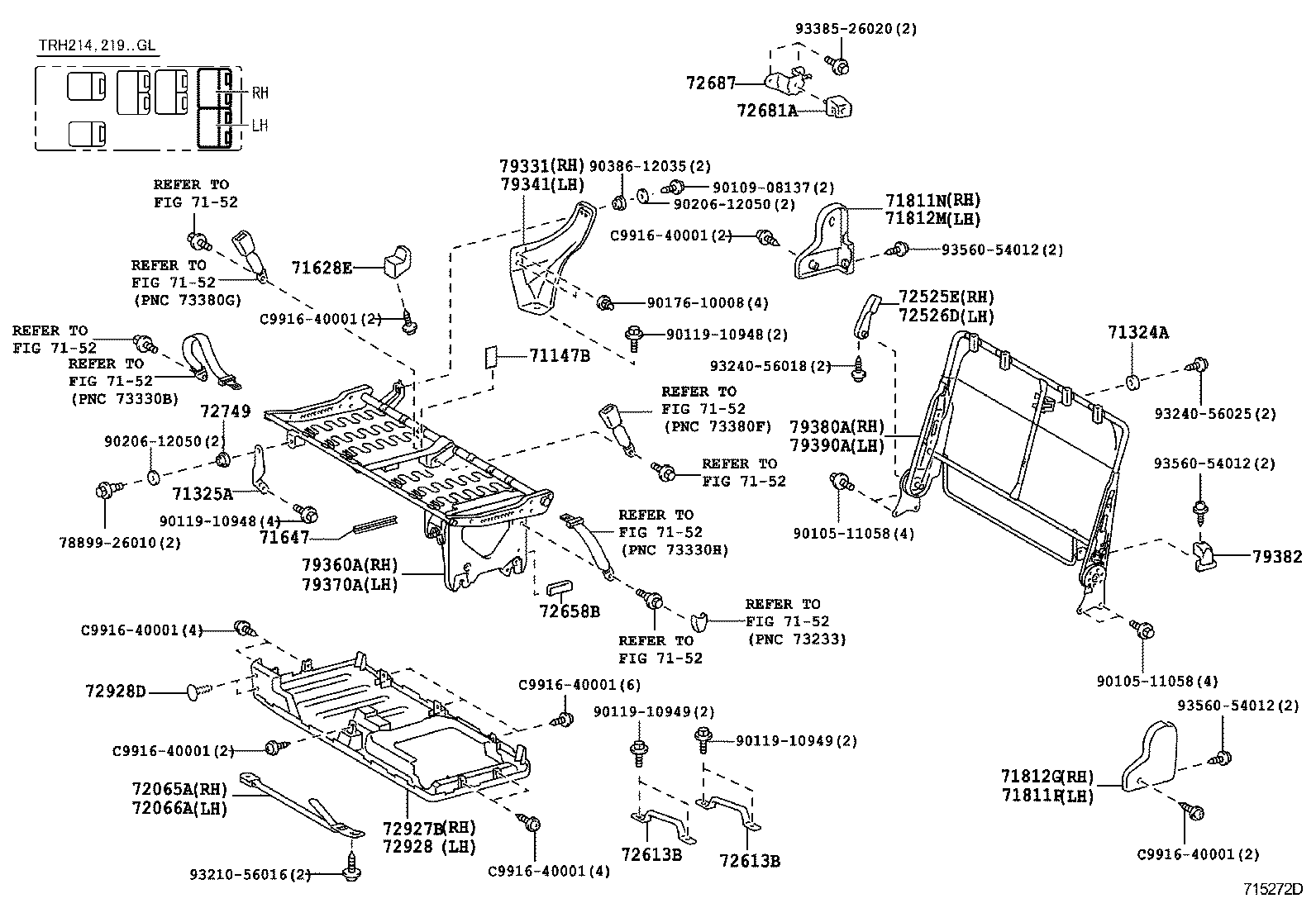

ﾘﾔ ｽﾍﾟｰｽｱｯﾌﾟ ｼｰﾄ(ﾘﾔ NO.3 ｼｰﾄ) ILLUST NO. 2 OF 2(0709-1205)TRH214,219..GL

HIACE REGIUSACE | SEAT SEAT TRACK 71147B - SILENCER, SEAT SPRING 71324A - CUSHION, REAR SEAT 71325A - HINGE, REAR SEAT CUSHION LEG ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 71628E - SPACER, REAR SEAT CUSHION 71647 - PROTECTOR, REAR SEAT CUSHION EDGE 71811N - COVER, RECLINING ADJUSTER, RH 71811P - COVER, RECLINING ADJUSTER, RH 71812G - COVER, RECLINING ADJUSTER, LH 71812M - COVER, RECLINING ADJUSTER, LH 72065A - HOOK SUB-ASSY,REAR SEAT CUSHION LOCK,RH 72066A - HOOK SUB-ASSY,REAR SEAT CUSHION LOCK,LH 72525E - HANDLE, RECLINING ADJUSTER RELEASE, NO.3 RH 72526D - HANDLE, RECLINING ADJUSTER RELEASE, NO.3 LH 72613B - STRIKER, REAR SEAT LOCK 72613B - STRIKER, REAR SEAT LOCK 72658B - KNOB, REAR SEAT LOCK HANDLE 72681A - HOOK, REAR SEAT 72687 - BRACKET, REAR SEAT HOOK 72749 - SPACER, REAR SEAT RECLINING 72927B - COVER, REAR SEAT CUSHION UNDER 72928 - COVER, REAR SEAT CUSHION UNDER, LH 72928D - CLIP (FOR REAR SEAT CUSHION UNDER COVER) ** Std Part 79331 - LEG, NO.3 SEAT, OUTER RH 79341 - LEG, NO.3 SEAT, OUTER LH 79360A - SPRING ASSY, NO.3 SEAT CUSHION, RH 79370A - SPRING ASSY, NO.3 SEAT CUSHION, LH 79380A - SPRING ASSY, NO.3 SEAT BACK, RH 79382 - COVER, NO.3 SEAT FRONT BRACKET, LH 79390A - SPRING ASSY, NO.3 SEAT BACK, LH ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
