TOYOTA HIACE REGIUSACE TRH228B-LEPDK / BODY / SEAT SEAT TRACK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

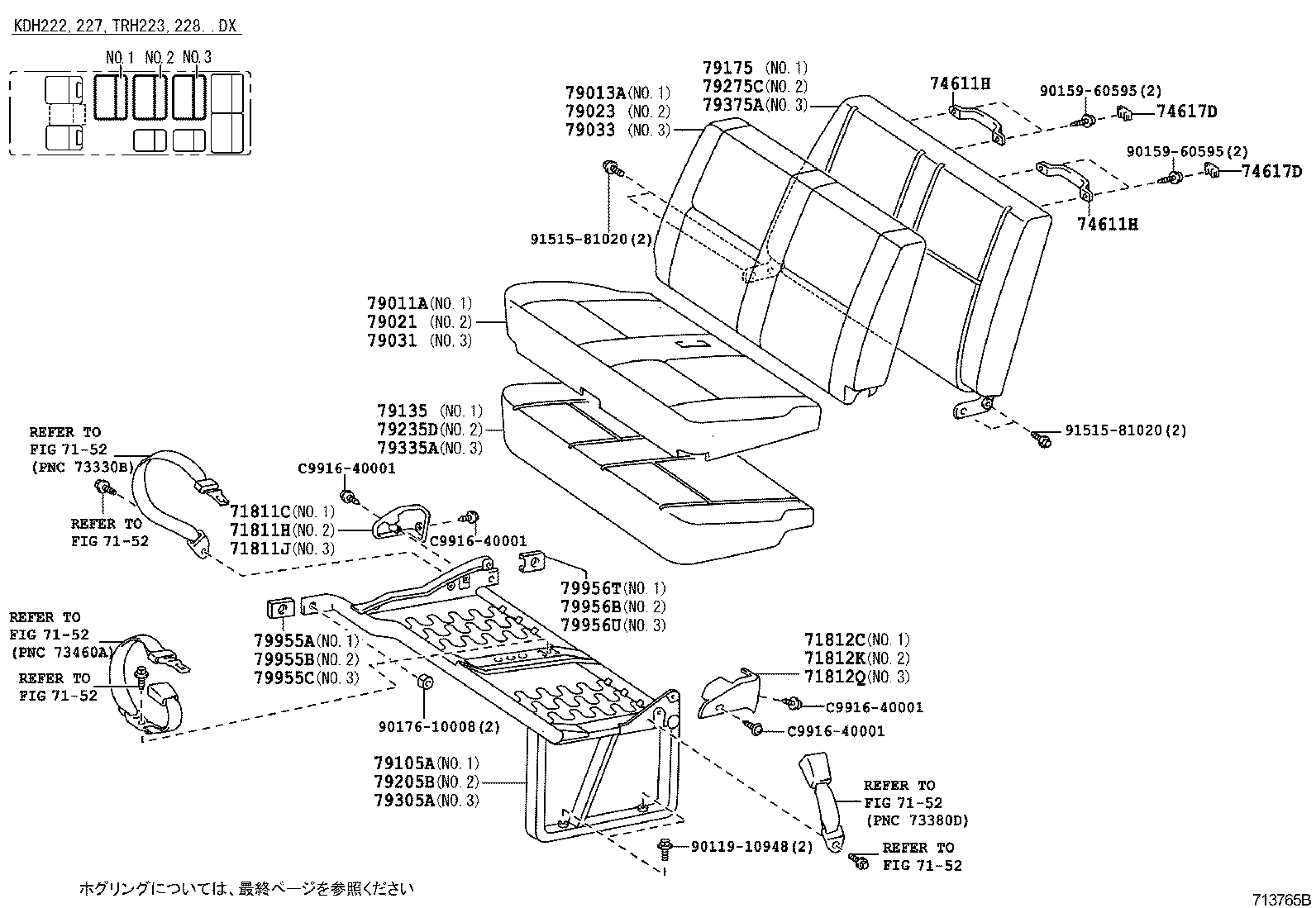

SEAT SEAT TRACK

ﾘﾔ NO.1 & NO.2 & NO.3 ｼｰﾄ(RH) (0501-1205)KDH222,223,227,TRH223,228..DX

HIACE REGIUSACE | SEAT SEAT TRACK ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 71811C - COVER, RECLINING ADJUSTER, RH 71811H - COVER, RECLINING ADJUSTER, RH 71811J - COVER, RECLINING ADJUSTER, RH 71812C - COVER, RECLINING ADJUSTER, LH 71812K - COVER, RECLINING ADJUSTER, LH 71812Q - COVER, RECLINING ADJUSTER, LH 74611H - GRIP, ASSIST 74611H - GRIP, ASSIST 74617D - PLUG, ASSIST GRIP 74617D - PLUG, ASSIST GRIP 79011A - COVER SUB-ASSY, NO.1 SEAT CUSHION 79013A - COVER SUB-ASSY, NO.1 SEAT BACK 79021 - COVER SUB-ASSY, NO.2 SEAT CUSHION, RH 79023 - COVER SUB-ASSY, NO.2 SEAT BACK, RH 79031 - COVER SUB-ASSY, NO.3 SEAT CUSHION, RH 79033 - COVER SUB-ASSY, NO.3 SEAT BACK, RH 79105A - LEG SUB-ASSY, NO.1 SEAT 79135 - PAD, NO.1 SEAT CUSHION 79175 - PAD, NO.1 SEAT BACK 79205B - LEG SUB-ASSY, NO.2 SEAT, RH 79235D - PAD, NO.2 SEAT CUSHION, RH 79275C - PAD, NO.2 SEAT BACK, RH 79305A - LEG SUB-ASSY, NO.3 SEAT, RH 79335A - PAD, NO.3 SEAT CUSHION, RH 79375A - PAD, NO.3 SEAT BACK, RH 79955A - COVER, REAR SEAT FRONT BRACKET, RH 79955B - COVER, NO.2 SEAT FRONT BRACKET, RH 79955C - COVER, REAR SEAT FRONT BRACKET, RH 79956B - COVER, REAR SEAT LEG SIDE, RH 79956T - COVER, REAR SEAT LEG SIDE 79956U - COVER, REAR SEAT LEG SIDE ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
